Ceiling fastening for service poles
Item no. 6290436 | EAN 4012196191529
- Product description
-

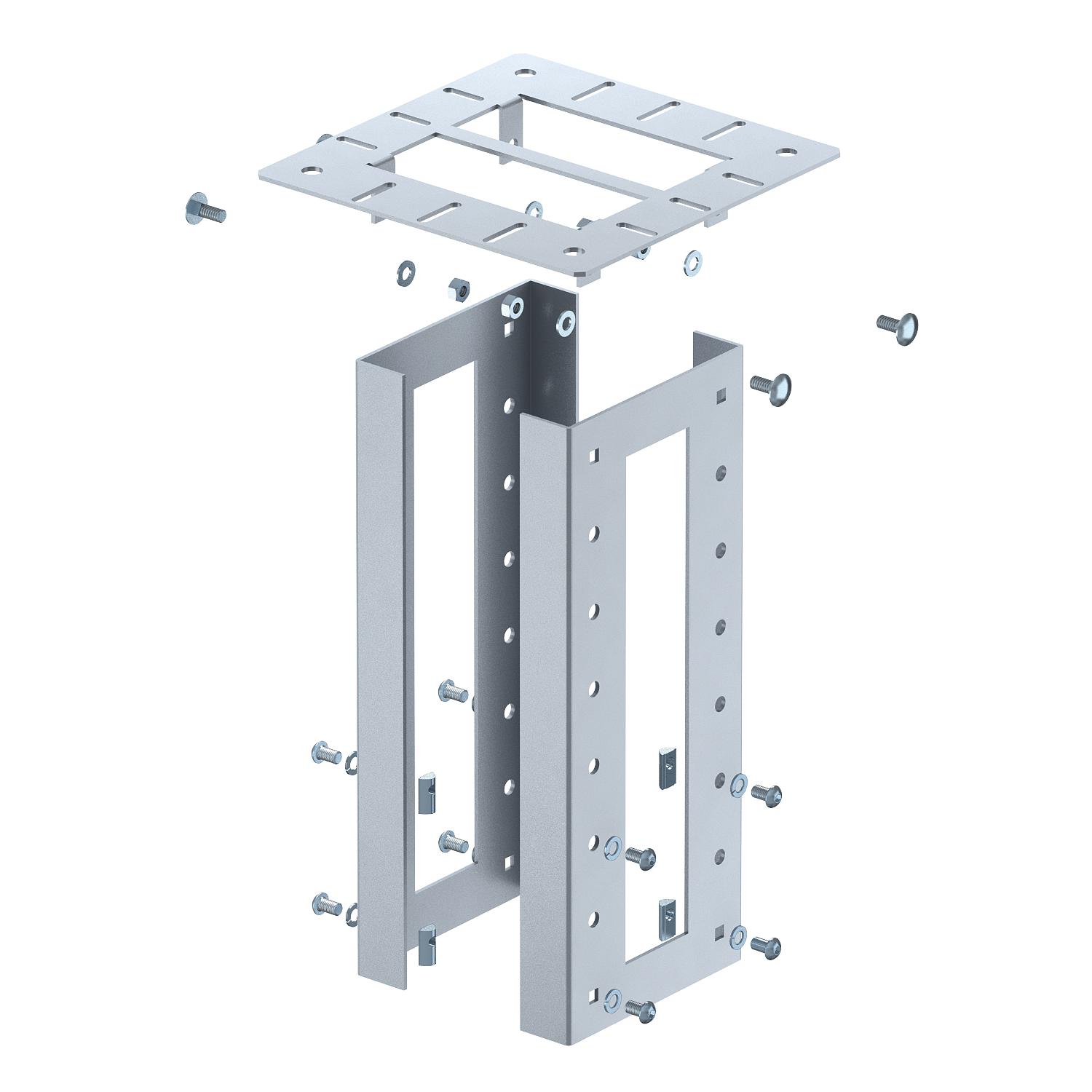

Product descriptionCeiling fastening for fixing the ISS service pole to the ceiling. The scope of delivery comprises of two U-shaped profiles made from 3 mm sheet steel, the fastening plate for the ceiling and the required installation accessories, including the groove rail. The ceiling fastening can be height-adjusted on the pole profile.
-
- Technical data
-
Technical data

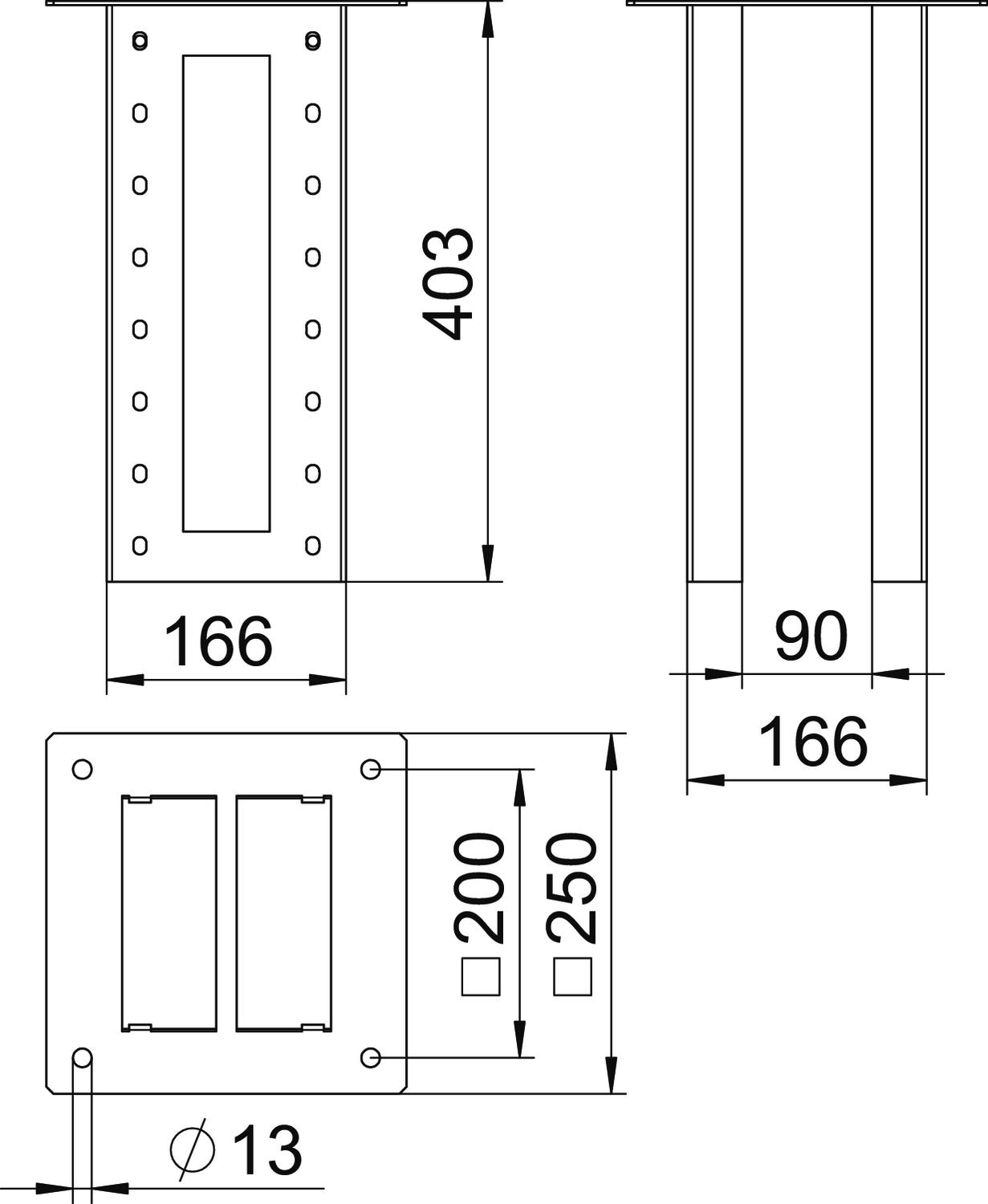

Colour White aluminium; RAL 9006 Dimension 403x250x250 Fastening type Bolts Halogen-free yes Height 250 mm Length 403 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Width 250 mm - All types
- Downloads
-
Data sheet ISS160160DB WA / 6290436 , 0.21MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity ISS160160DB WA / 6290436 , 0.10MB , pdfUK Declaration of Conformity ISS160160DB WA / 6290436 , 0.09MB , pdfREACH Declaration of conformity ISS160160DB WA / 6290436 , 0.13MB , pdfRoHS Declaration of conformity ISS160160DB WA / 6290436 , 0.13MB , pdfLabel approval VDE symbol approval, service pole systems , 0.22MB , pdfMounting instructions Mounting instructions, ISS160160 bracket for ISS-I , 4.01MB , pdfMounting instructions Mounting instructions, ISS-I , 4.01MB , pdf
