Cap nut cable gland, EMC spring contact, metric thread, nickel-plated | | M40 x 1,5 | no |

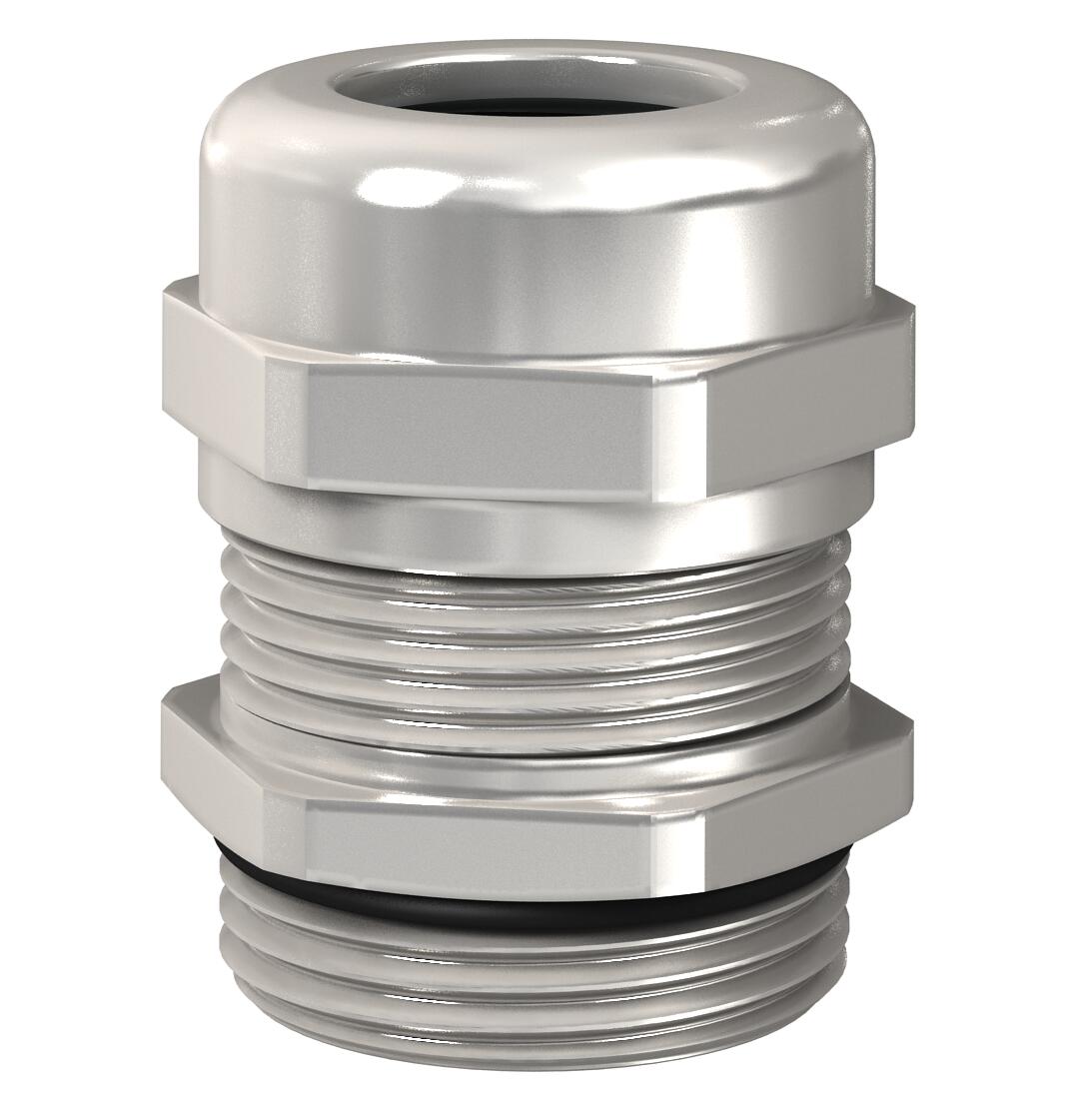

Cap nut cable gland, EMC spring contact, metric thread, nickel-plated

Item no. 2086181 | EAN 4012195655534

Item no. / Types

Thread

Sealing insert, multiple	no

Product description

Product description

With metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. The contact between the gland and braided shield is made using a contact spring. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, protection rating IP 68 at 5 bar for 1 hr.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no
CO2 Footprint (GWP) Cradle-to-Gate	0,4394 kg CO₂e / 1 Piece

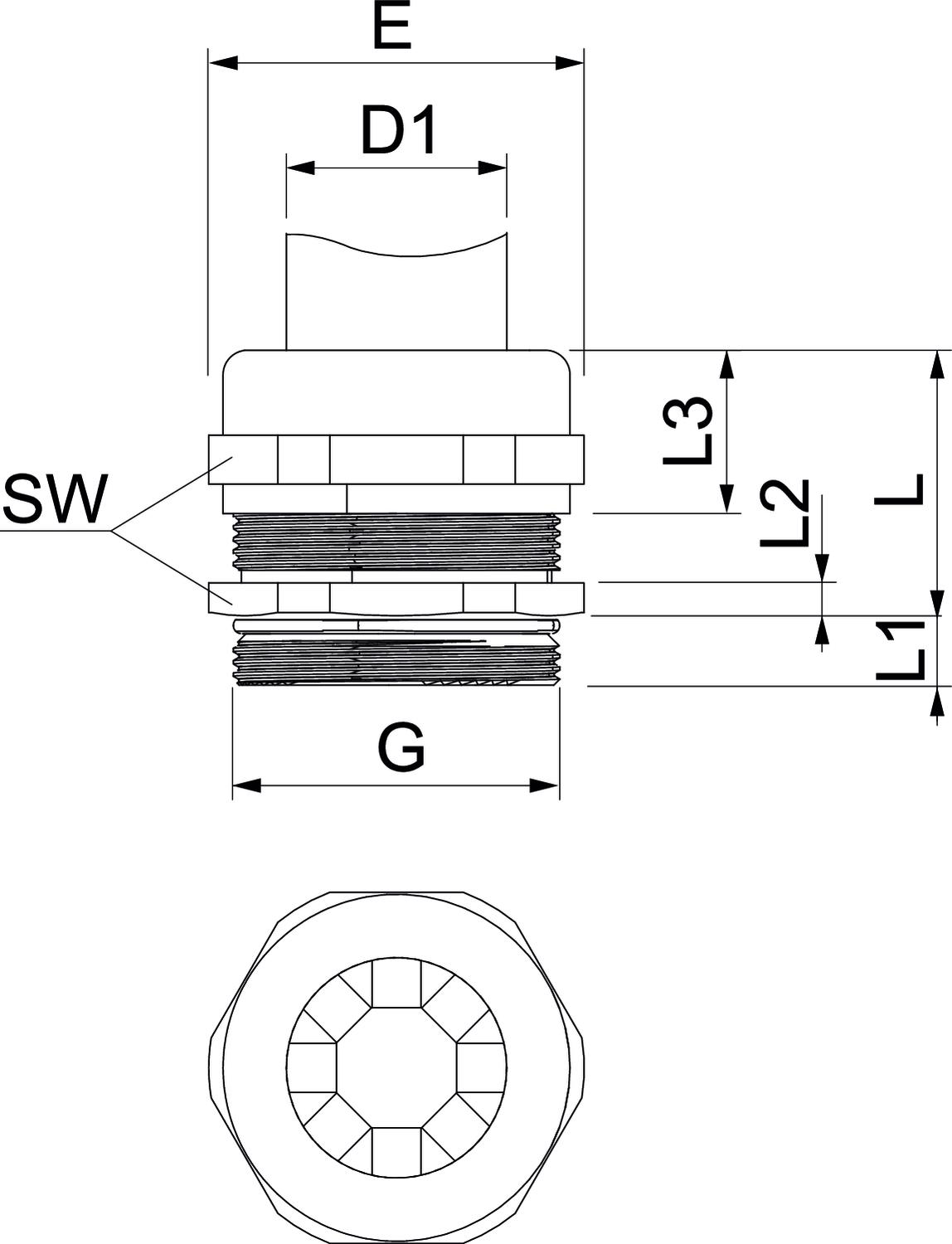

Dimension	M40
Dimension D1	19 mm
Dimension E	46 mm
Dimension G	M40x1,5 mm
Dimension L	33 mm
Dimension L1	8 mm
Dimension L2	4,5 mm
Dimension L3	16,4 mm
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
Halogen-free	no
Height	41 mm
Impact-resistant	no
Length	43 mm

Material	Brass
Permitted temperature range, max.	100 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	27 mm
Sealing area D, min.	19 mm
Sealing insert, multiple	no
Strain relief option	yes
Surface	Nickel-plated
Thread	M40 x 1,5
Thread length	8 mm
Type of seal	Sealing ring
Version for	Straight
WAF	43
Width	46 mm
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Item no.
V-TEC VM16 EMV-K	M16 x 1,5	no	2086165
V-TEC VM20 EMV-K	M20 x 1,5	no	2086169
V-TEC VM25 EMV-K	M25 x 1,5	no	2086173
V-TEC VM32 EMV-K	M32 x 1,5	no	2086177
V-TEC VM40 EMV-K	M40 x 1,5	no	2086181
V-TEC VM50 EMV-K	M50 x 1,5	no	2086185
V-TEC VM63 EMV-K	M63 x 1,5	no	2086189

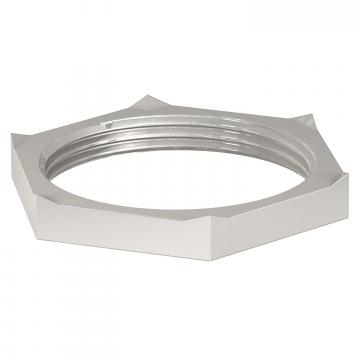

Accessories
