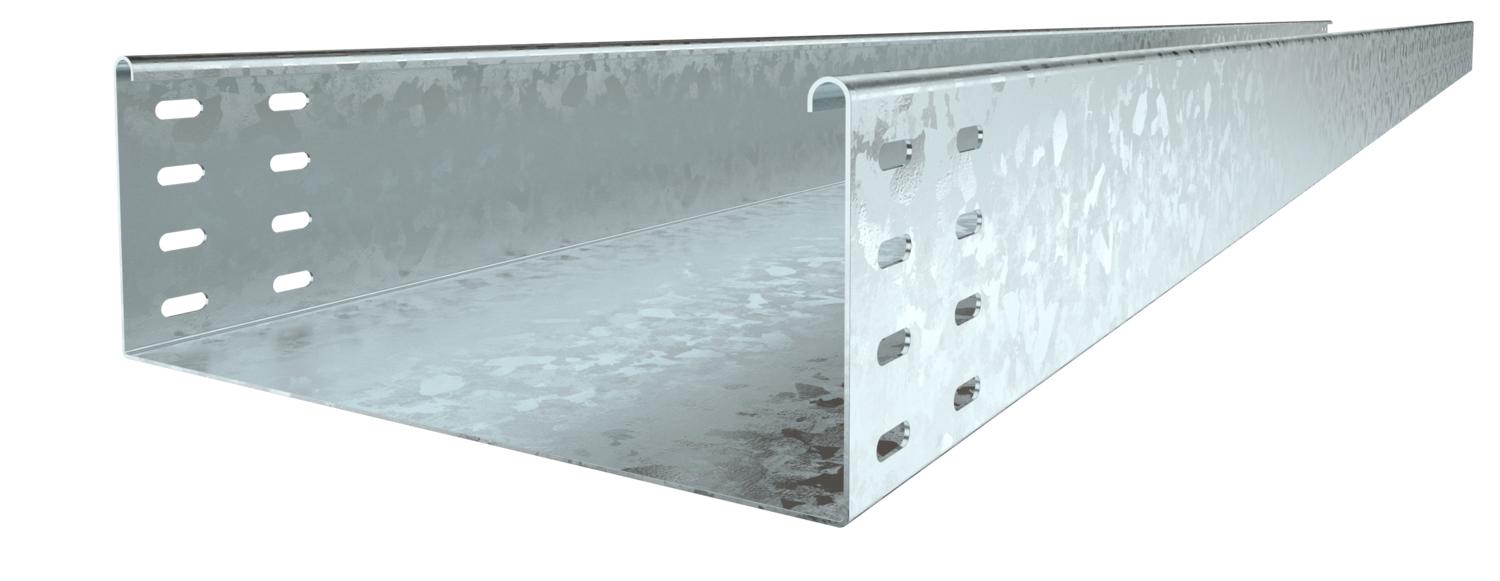

Cable tray SKSU 110 FT SOMY

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised 85 µm

Product description

Product description

SKS 110 = heavy-duty cable tray system, unperforated, with 110 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	12,3312 kg CO₂e / 1 Meter
Colour	zinc
Connector version	Without connectors
Dimension	110x200x3000
Dimension B	200 mm
Height	110 mm
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	no
NATO hole pattern	no
Plate thickness	1,5 mm
Rustproof steel, pickled	no

Side perforation	no
Support spacing 1.5 m	3 kN/m
Support spacing 2.0 m	2,4 kN/m
Support spacing 2.5 m	1,76 kN/m
Support spacing 3.0 m	1,2 kN/m
Support spacing 3.5 m	0,84 kN/m
Support spacing 4.0 m	0,8 kN/m
Surface	Hot-dip galvanised 85 µm
Type of connector, cable support system	Screwed
Usable cross-section	218 cm²
Wide-span version	no
Width	200 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.
SKSU 120 FT SO	3000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised 85 µm	7196012
SKSU 130 FT SO	3000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised 85 µm	7196013
SKSU 140 FT SO	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised 85 µm	7196014
SKSU 150 FT SO	3000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised 85 µm	7196018
SKSU 160 FT SO	3000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised 85 µm	7196021
