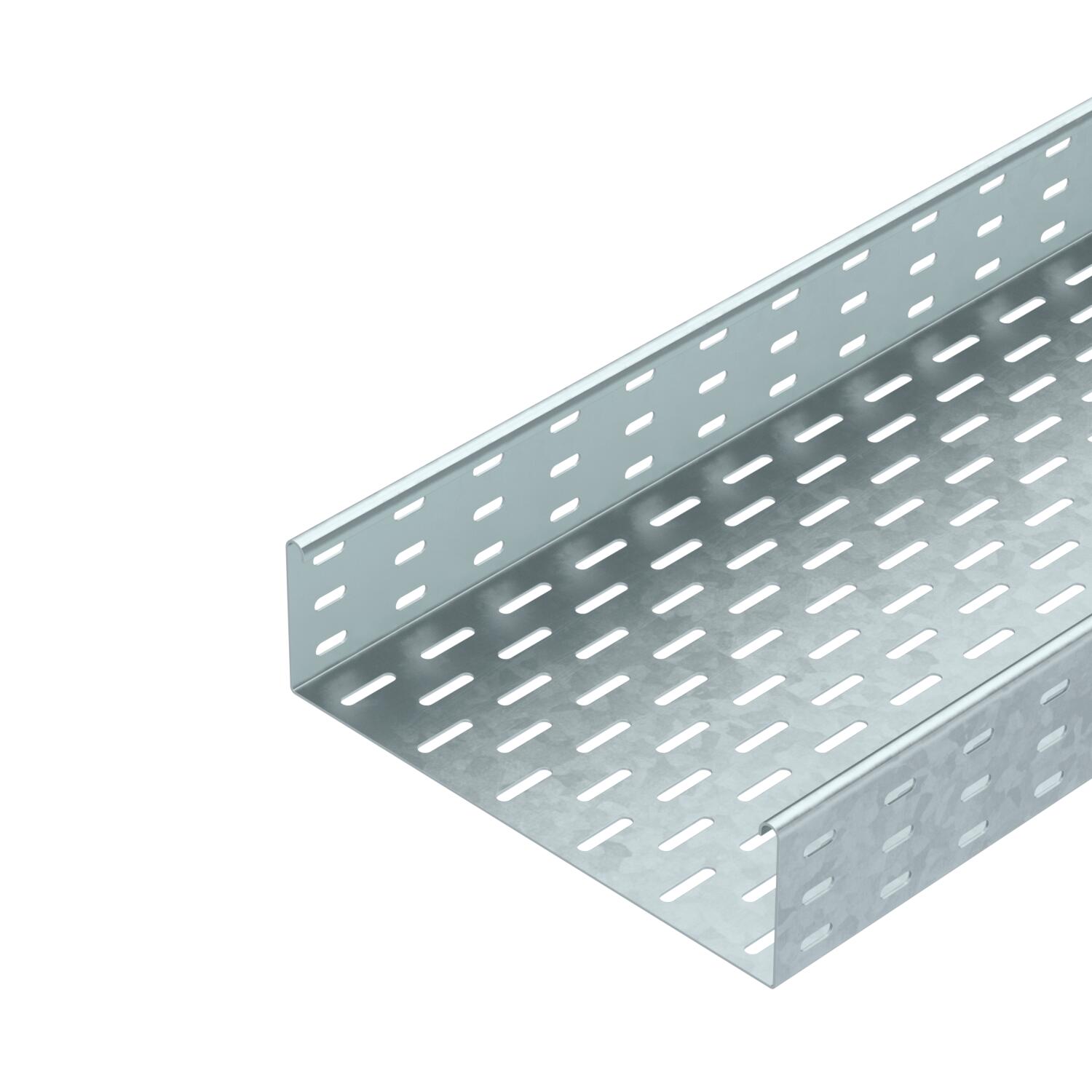

Cable tray SKS 85 FT

Item no. 6058663 | EAN 4012196061570

3000 mm
1.5 mm
no
Steel
Hot-dip galvanised
Product description
Product description
SKS 85 = heavy-duty cable tray system with 85 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 12,8747 kg CO₂e / 1 Meter
Colour zinc
Connector version Without connectors

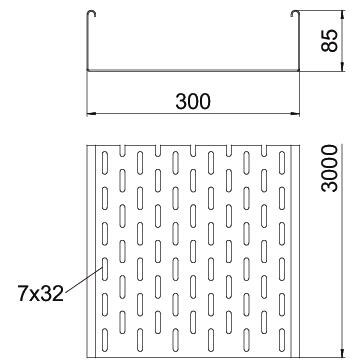

Dimension 85 x 300
Dimension 85x300x3000
Dimension B 300 mm
Height 85 mm
Height 3 in
Length 10 ft
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1,5 mm
Plate thickness 0,6 in
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.5 m 2,8 kN/m
Support spacing 2.0 m 2,25 kN/m
Support spacing 2.5 m 1,5 kN/m
Support spacing 3.0 m 0,75 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Usable cross-section 25300 mm²
Usable cross-section 253 cm²
Wide-span version no
Width 300 mm
Width 12 in
With cover no

Technical data

Load diagram, cable tray, type SKS 85

Load diagram, cable tray, type SKS 85
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no.
SKS 810 FT 3000 mm 100 mm 1.5 mm no Steel Hot-dip galvanised 6058620
SKS 820 FT 3000 mm 200 mm 1.5 mm no Steel Hot-dip galvanised 6058647
SKS 830 FT 3000 mm 300 mm 1.5 mm no Steel Hot-dip galvanised 6058663
SKS 840 FT 3000 mm 400 mm 1.5 mm no Steel Hot-dip galvanised 6058698
SKS 850 FT 3000 mm 500 mm 1.5 mm no Steel Hot-dip galvanised 6058728
SKS 860 FT 3000 mm 600 mm 1.5 mm no Steel Hot-dip galvanised 6058744
Accessories

System accessories

Products Types Item no.
Straight and angle connector FT Straight and angle connector FT RLVL 85 FT 6067816
Cover with turn buckle FT Cover with turn buckle FT DRL 300 FT 6051383
45° bend 85 FT 45° bend 85 FT RB 45 830 FT 6036234
90° bend 85 FT 90° bend 85 FT RB 90 830 FT 6036716
Bend, angle-adjustable, 85 FT Bend, angle-adjustable, 85 FT RB W 830 FT 6037225
Add-on tee 85 FT Add-on tee 85 FT RAA 830 FT 6042235
T piece 85 FT T piece 85 FT RT 830 FT 6038234
Cross-over 85 FT Cross-over 85 FT RK 830 FT 7027435
Cover with turn buckle DD Cover with turn buckle DD DRL 300 DD 6052712
Barrier strip 85 DD Barrier strip 85 DD TSG 85 DD 6062331
Downloads

Download

EU declaration of conformity SKS 830 FT / 6058663 , 0.10MB , pdf
Download
Environmental Product Declaration (EPD) SKS 830 FT / 6058663 , 1.48MB , pdf
Download
UK Declaration of Conformity SKS 830 FT / 6058663 , 0.09MB , pdf
Download
REACH Declaration of conformity SKS 830 FT / 6058663 , 0.12MB , pdf
Download
RoHS Declaration of conformity SKS 830 FT / 6058663 , 0.12MB , pdf
Download

Download

SKS 830 FT / 6058663
