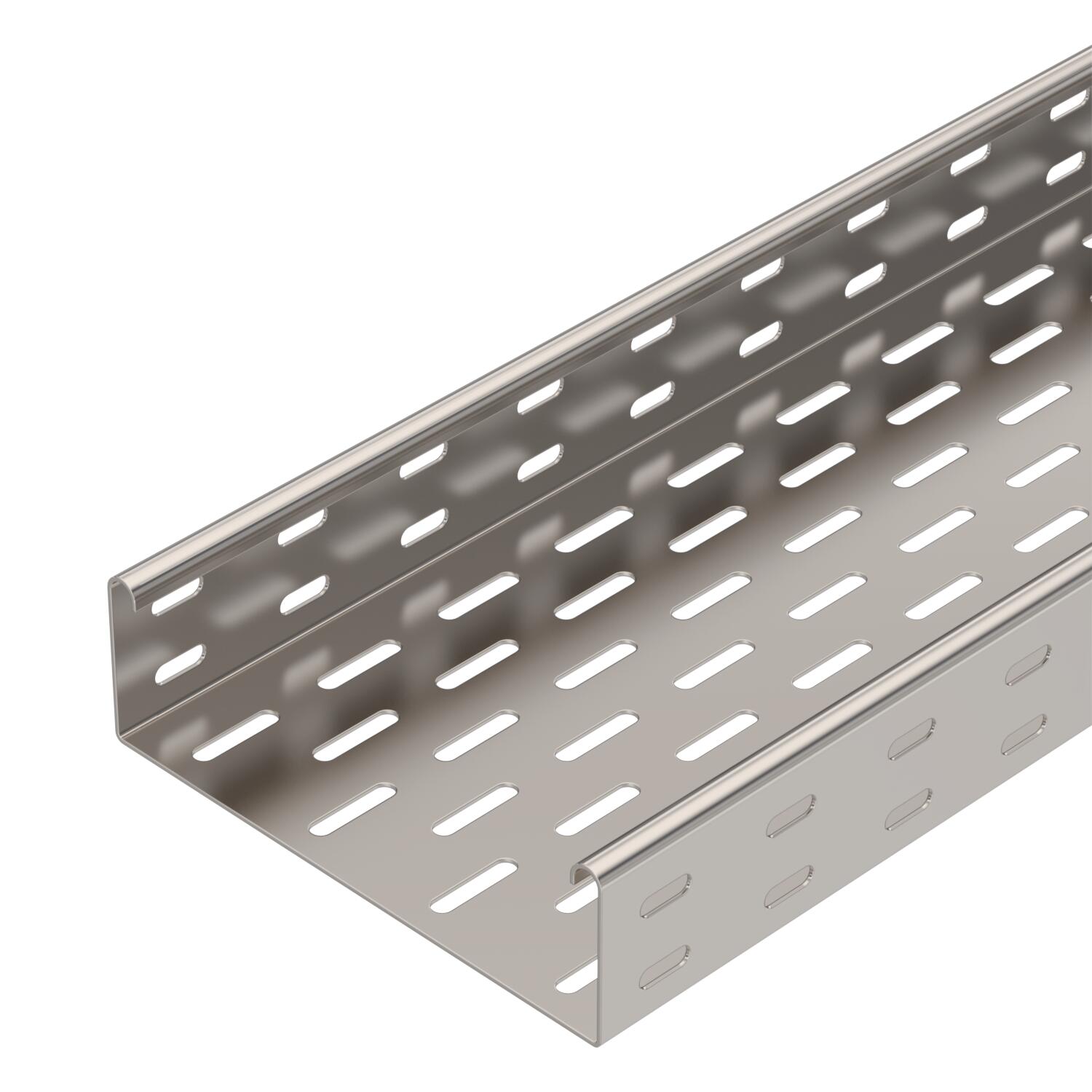

Cable tray SKS 60 A2

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	yes

Material	Stainless steel

Surface	Bright, treated

Product description

Product description

SKS 60 = heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	20,0669 kg CO₂e / 1 Meter
Colour	stainless steel
Connector version	Without connectors

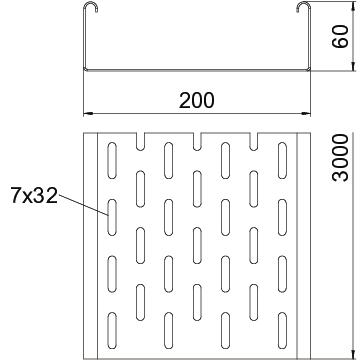

Dimension	60x200x3000
Dimension B	200 mm
Height	60 mm
Height	2 in
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	yes
Maß W	200 mm
Material	Stainless steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,06 in

Plate thickness	1,5 mm
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	2,65 kN/m
Support spacing 2.0 m	1,8 kN/m
Support spacing 2.5 m	1,15 kN/m
Support spacing 3.0 m	0,5 kN/m
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	118 cm²
Usable cross-section	11800 mm²
Wide-span version	no
Width	8 in
Width	200 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.
SKS 610 A2	3000 mm	100 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056735
SKS 620 A2	3000 mm	200 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056737
SKS 630 A2	3000 mm	300 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056739
SKS 640 A2	3000 mm	400 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056742
SKS 650 A2	3000 mm	500 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056744
SKS 660 A2	3000 mm	600 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056746
