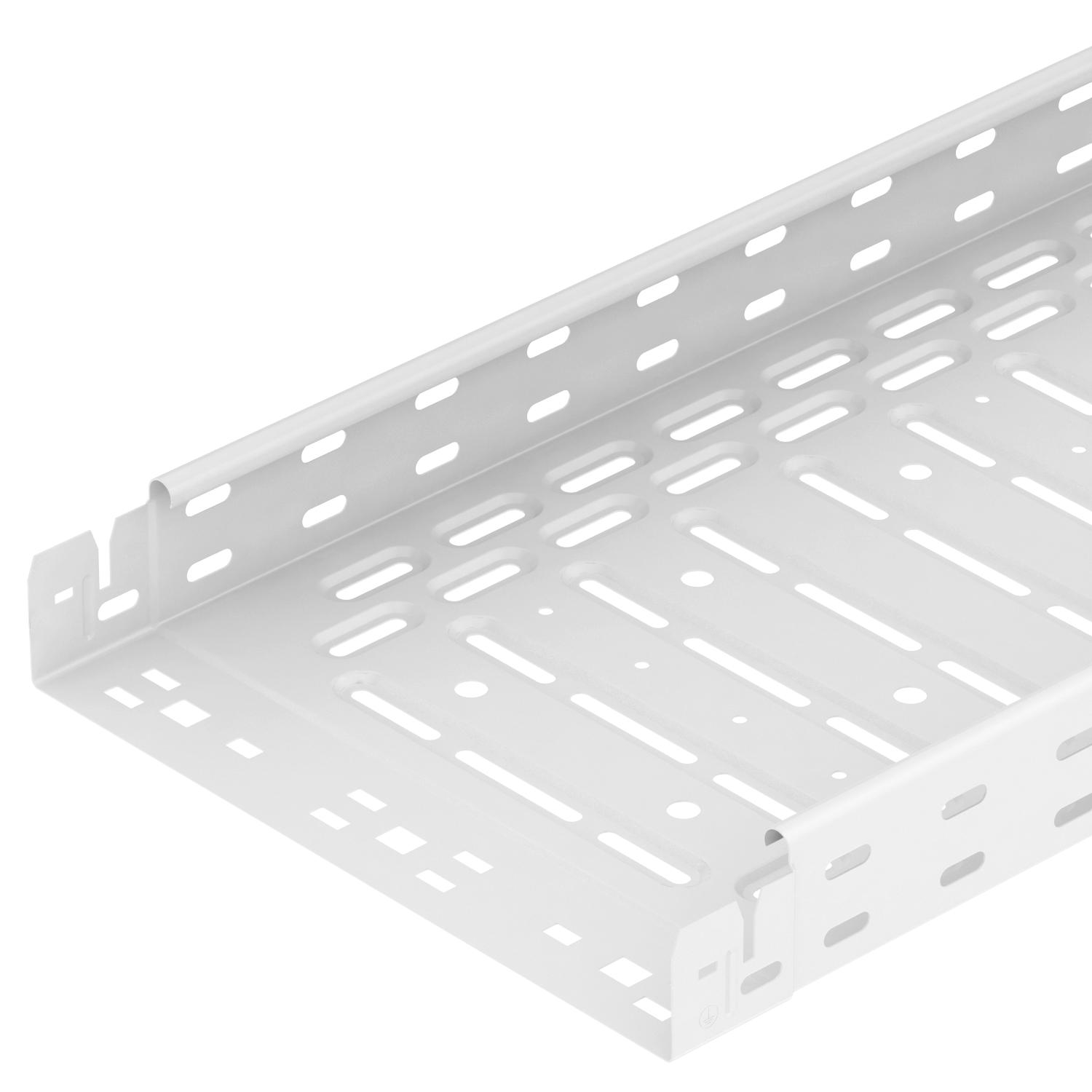

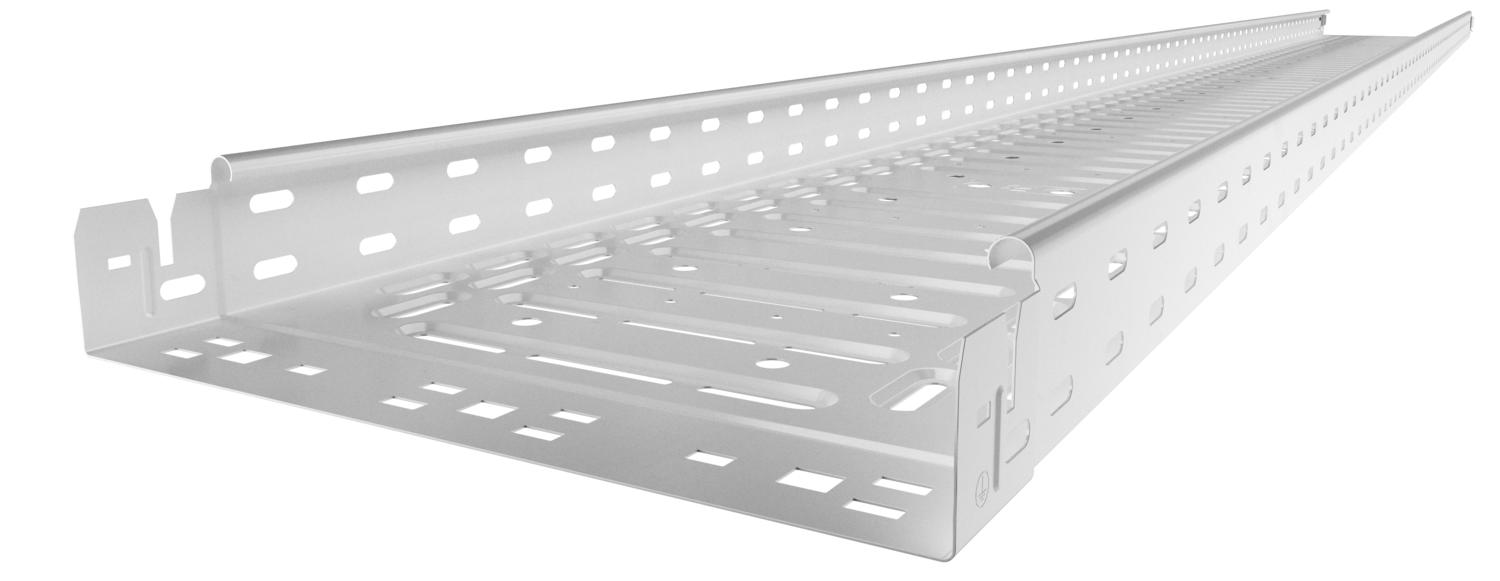

Cable tray RKS-Magic® 60, pure white
Item no. 6048251 | EAN 4012195391258
- Product description
-
Product descriptionCable tray with integrated quick fastening system. Continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components. With 11 mm perforation in the base for direct threaded rod suspension. Usable length 3,000 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Base perforation 1 CO2 Footprint (GWP) Cradle-to-Gate 3,3263 kg CO₂e / 1 Meter Colour Pure white; RAL 9010 Connector version Integrated connector Dimension 60x100x3050 Dimension B 100 mm Dimension y 50 mm Fire protection Maintenance of electrical function of cable-specific support structure Height 60 mm Length 3050 mm Load test type according to IEC 61537 Type II Maintain electrical functions yes Material Steel Mounting perforation in base yes NATO hole pattern no NEMA load class 8AA Plate thickness 0,75 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 1,2 kN/m Support spacing 1.5 m 0,9 kN/m Support spacing 2.0 m 0,6 kN/m Support spacing 2.5 m 0,4 kN/m Surface PES50 - Polyester/epoxy/visual surface coated Type of connector, cable support system Click fastening Usable cross-section 5800 mm² Usable cross-section 58 cm² Usable length 3000 mm Wide-span version no Width 100 mm With cover no Technical data
Load diagram, cable tray, type RKSM 60
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
All types
- Downloads
-
Data sheet RKSM 610 FSK RW / 6048251 , 0.31MB , pdfEU declaration of conformity RKSM 610 FSK RW / 6048251 , 0.11MB , pdfREACH Declaration of conformity RKSM 610 FSK RW / 6048251 , 0.09MB , pdfRoHS Declaration of conformity RKSM 610 FSK RW / 6048251 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfNo invitation to tender text is available for this product.
