Cable tray MKS-Magic® 60, unperforated, black 3050 | 300 | 60 | 1 | no | Jet black; RAL 9005 | Steel | PES135 - Polyester
morepic-1 morepic-2

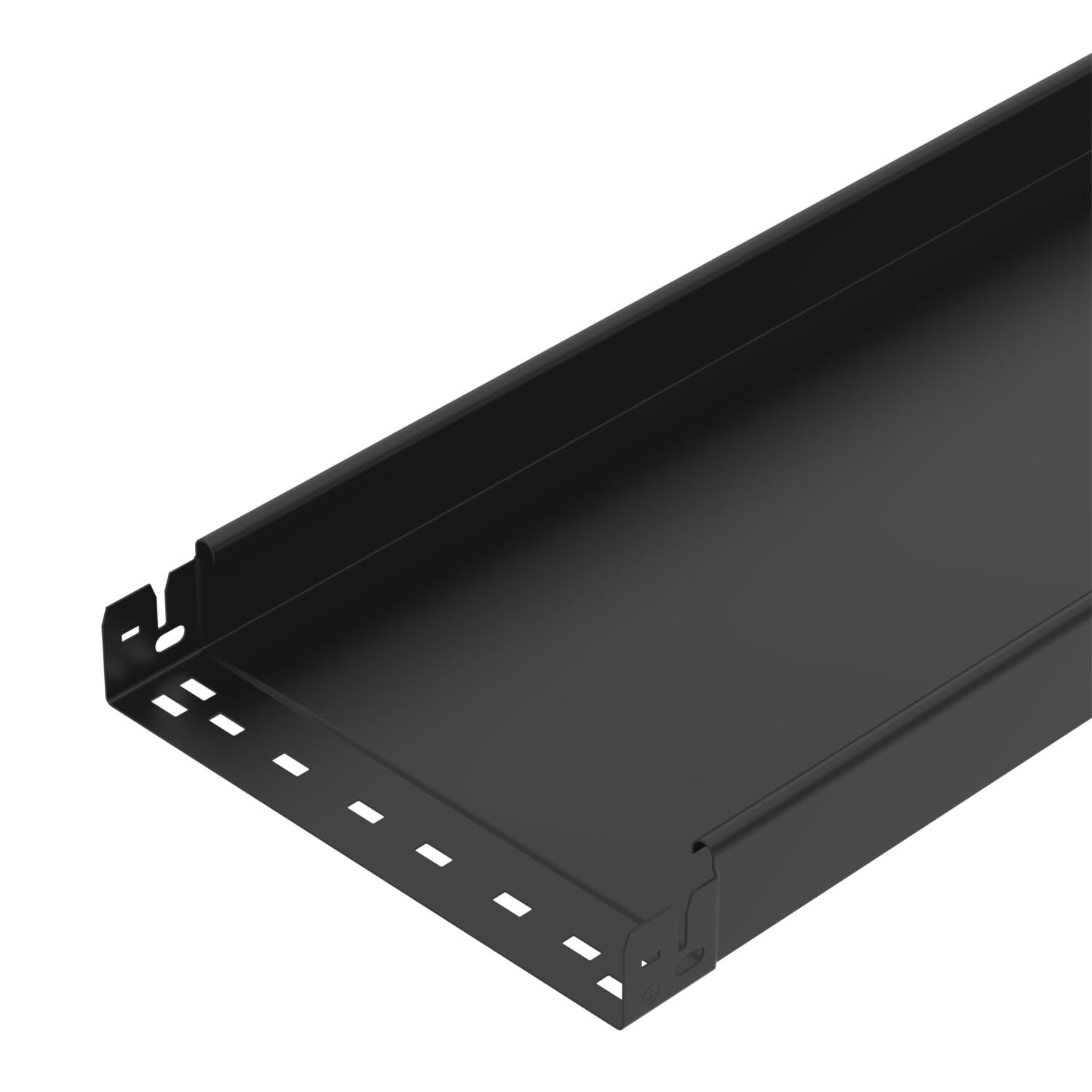

Cable tray MKS-Magic® 60, unperforated, black

Item no. 6062996 | EAN 4012197442217

3050 mm
60 mm
1 mm
no
Jet black; RAL 9005
Steel
PES135 - Polyester
Product description
Product description
Unperforated cable tray with integrated quick fastening system. Black coated.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Jet black; RAL 9005
Connector version Integrated connector

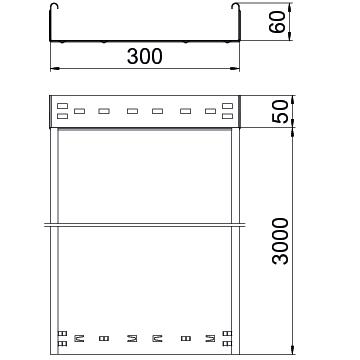

Dimension 60 x 300
Dimension 60x300x3050
Dimension B 300 mm
Height 60 mm
Length 3050 mm
Maintain electrical functions no
Maß W 300 mm
Material Steel
Mounting perforation in base no
NATO hole pattern no
Plate thickness 1 mm
Rustproof steel, pickled no
Side perforation no
Support spacing 1.5 m 1,5 kN/m
Support spacing 1.75 m 1,25 kN/m
Support spacing 2.0 m 1 kN/m
Support spacing 2.5 m 0,5 kN/m
Surface PES135 - Polyester
Type of connector, cable support system Click fastening
Usable cross-section 178 cm²
Usable cross-section 17800 mm²
Usable length 3000 mm
Wide-span version no
Width 300 mm
With cover no
All types

All types

Types Length Width Height Plate thickness Maintain electrical functions Colour Material Surface Item no.
MKSMU 610 FSK SW 3050 mm 100 mm 60 mm 1 mm no Jet black; RAL 9005 Steel PES135 - Polyester 6062979
MKSMU 620 FSK SW 3050 mm 200 mm 60 mm 1 mm no Jet black; RAL 9005 Steel PES135 - Polyester 6062995
MKSMU 630 FSK SW 3050 mm 300 mm 60 mm 1 mm no Jet black; RAL 9005 Steel PES135 - Polyester 6062996
MKSMU 640 FSK SW 3050 mm 400 mm 60 mm 1 mm no Jet black; RAL 9005 Steel PES135 - Polyester 6062997
Accessories

System accessories

Products Types Item no.
90° bend 60, black 90° bend 60, black RB 90 630 FSK SW 6043264
Add-on tee 60, black Add-on tee 60, black RAA 630 FSK SW 7121864
Barrier strip 45 FSK, black Barrier strip 45 FSK, black TSG 45 FSK SW 6479451

Mounting accessories

Products Types Item no.
Straight connector 60 FSK, black Straight connector 60 FSK, black RLVK 60 FSK SW 6067097
Straight and angle connector 60 FSK, black Straight and angle connector 60 FSK, black RWVL 60 FSK SW 6067624
Adjustable connector 60 FSK, black Adjustable connector 60 FSK, black RGV 60 FSK SW 7082759
Wall and support bracket AW 15, black Wall and support bracket AW 15, black AW 15 31 FTK SW 6420685
Suspension bracket, black Suspension bracket, black AHB 300 FTK SW 6363878
Centre suspension for cable tray, side height 60 mm, black Centre suspension for cable tray, side height 60 mm, black MAH 60 300 FSKSW 6358744
