CO2 Footprint (GWP) Cradle-to-Gate	1,3673 kg CO2e / 1 Meter
Colour	zinc
Connector version	Without connectors
Dimension	15x50x2000
Dimension	15 x 50
Dimension B	50 mm
Height	15 mm
Length	2000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes

NATO hole pattern	yes
Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	no
Support spacing 1.0 m	0,4 kN/m
Support spacing 1.5 m	0,1 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Wide-span version	no
Width	50 mm
With cover	no

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.
MKR 15 050 FS	2000 mm	50 mm	1 mm	no	Steel	Strip galvanized	6045952
MKR 15 075 FS	2000 mm	75 mm	1 mm	no	Steel	Strip galvanized	6045960
MKR 15 100 FS	2000 mm	100 mm	1 mm	no	Steel	Strip galvanized	6045979
MKR 15 150 FS	2000 mm	150 mm	1 mm	no	Steel	Strip galvanized	6045995
MKR 15 200 FS	2000 mm	200 mm	1 mm	no	Steel	Strip galvanized	6046002

Products	Types	Item no.

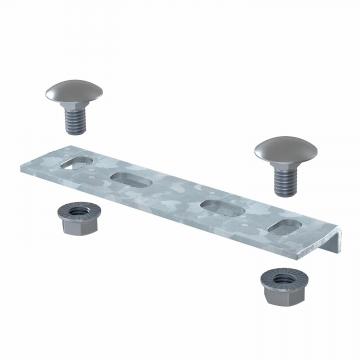

Straight connector FS	MKR SV FS	6066242

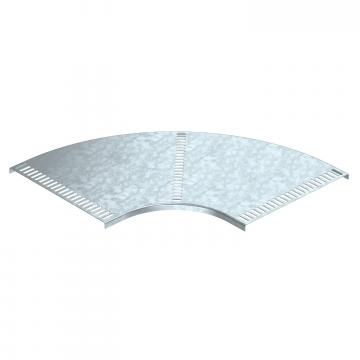

90° bend 15 FS, shipbuilding	MKRB 90 15 050FS	7061146

Products	Types	Item no.
Tightening strap A2K Jet black	SBR 8 A2K	6490192
Tightening strap FSK, Stone grey	SBR 15 FSK	6490280

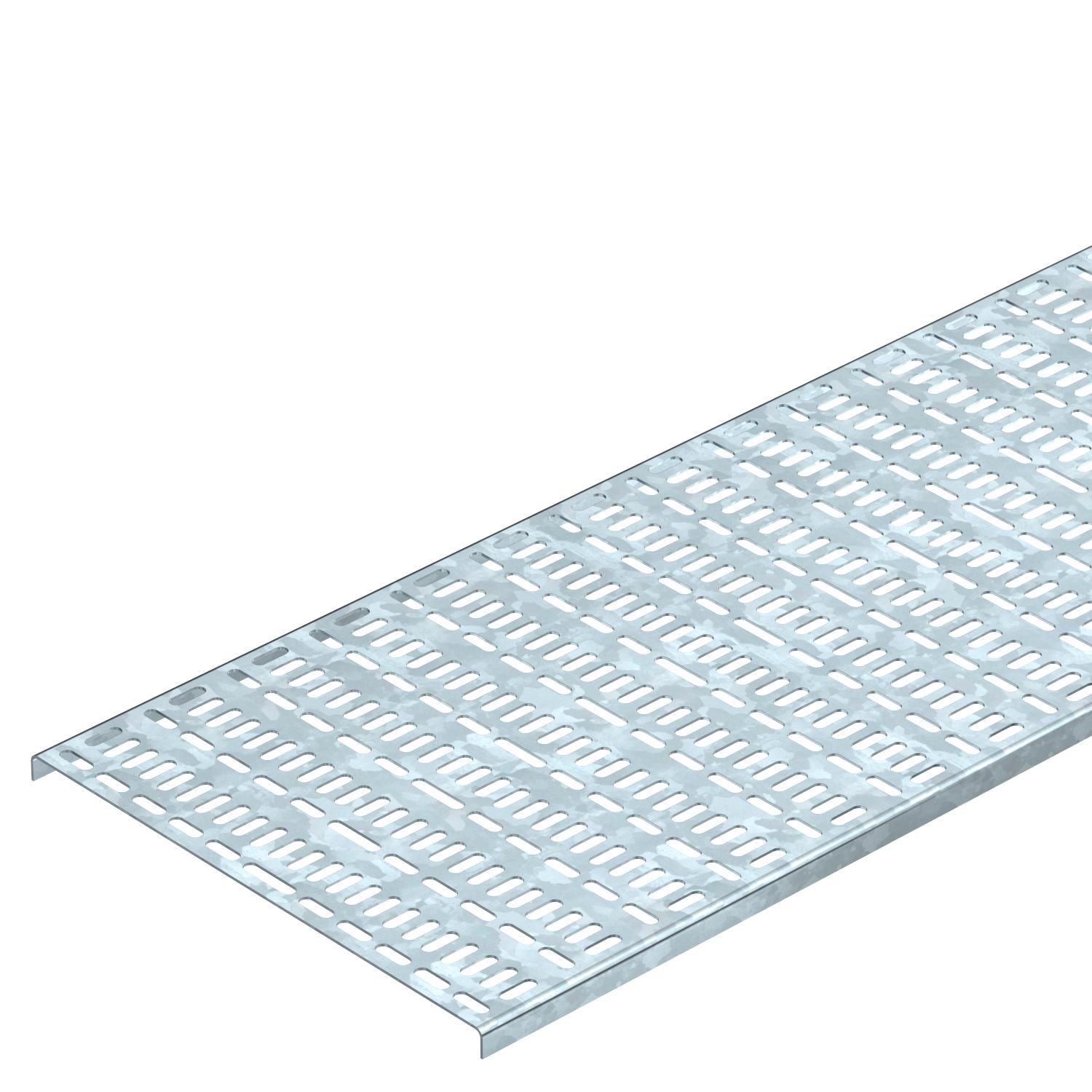

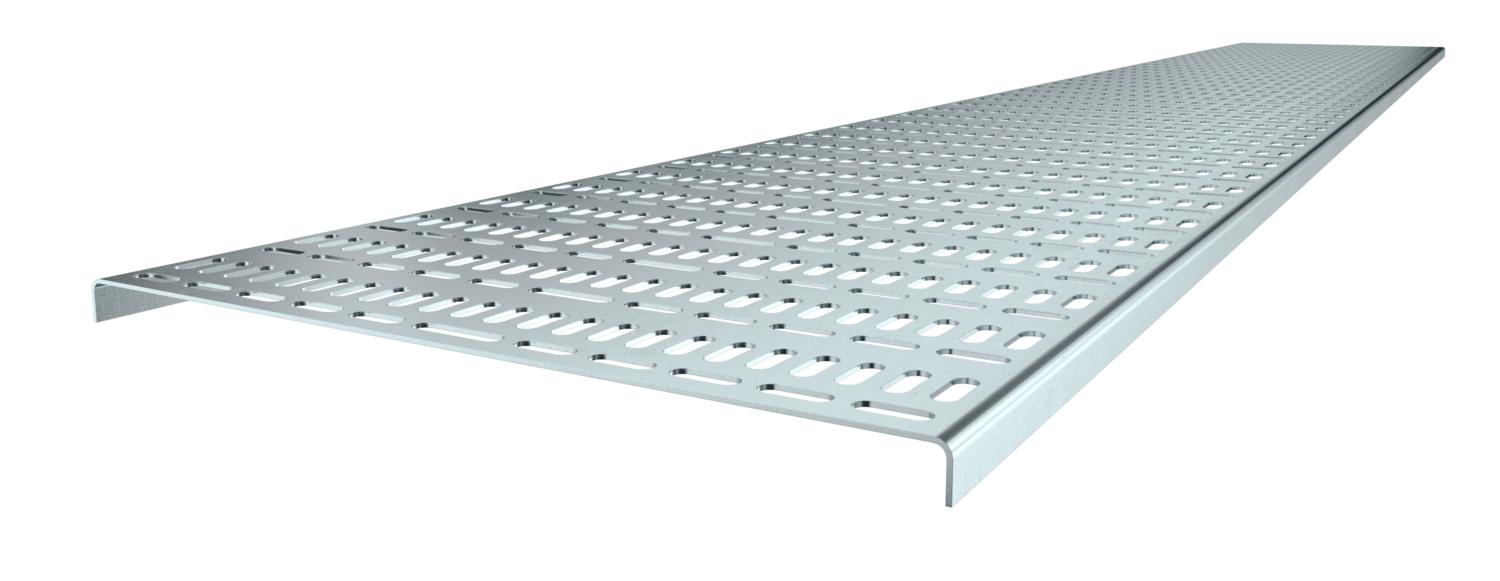

Cable tray, marine standard FS

All types
