CO2 Footprint (GWP) Cradle-to-Gate	5,2636 kg CO2e / 1 Meter
Colour	stainless steel
Connector version	Without connectors
Dimension	15x50x2000
Dimension	15 X 50
Dimension B	50 mm
Height	15 mm
Length	2000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Stainless steel
Mounting perforation in base	yes

NATO hole pattern	yes
Plate thickness	1,25 mm
Rustproof steel, pickled	yes
Side perforation	no
Support spacing 1.0 m	0,35 kN/m
Support spacing 1.5 m	0,15 kN/m
Surface	Bright, treated
Type of connector, cable support system	Screwed
Wide-span version	no
Width	50 mm
With cover	no

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.
MKR 15 050 A2	2000 mm	50 mm	1.25 mm	no	Stainless steel	Bright, treated	6045830
MKR 15 075 A2	2000 mm	75 mm	1.25 mm	no	Stainless steel	Bright, treated	6045832
MKR 15 100 A2	2000 mm	100 mm	1.25 mm	no	Stainless steel	Bright, treated	6045834
MKR 15 125 A2	2000 mm	125 mm	1.25 mm	no	Stainless steel	Bright, treated	6045836
MKR 15 150 A2	2000 mm	150 mm	1.5 mm	no	Stainless steel	Bright, treated	6045838
MKR 15 200 A2	2000 mm	200 mm	1.5 mm	no	Stainless steel	Bright, treated	6045840
MKR 15 250 A2	2000 mm	250 mm	1.5 mm	no	Stainless steel	Bright, treated	6045842
MKR 15 300 A2	2000 mm	300 mm	1.5 mm	no	Stainless steel	Bright, treated	6045844

Products	Types	Item no.
Tightening strap A2K Jet black	SBR 8 A2K	6490192
Tightening strap FSK, Stone grey	SBR 15 FSK	6490280

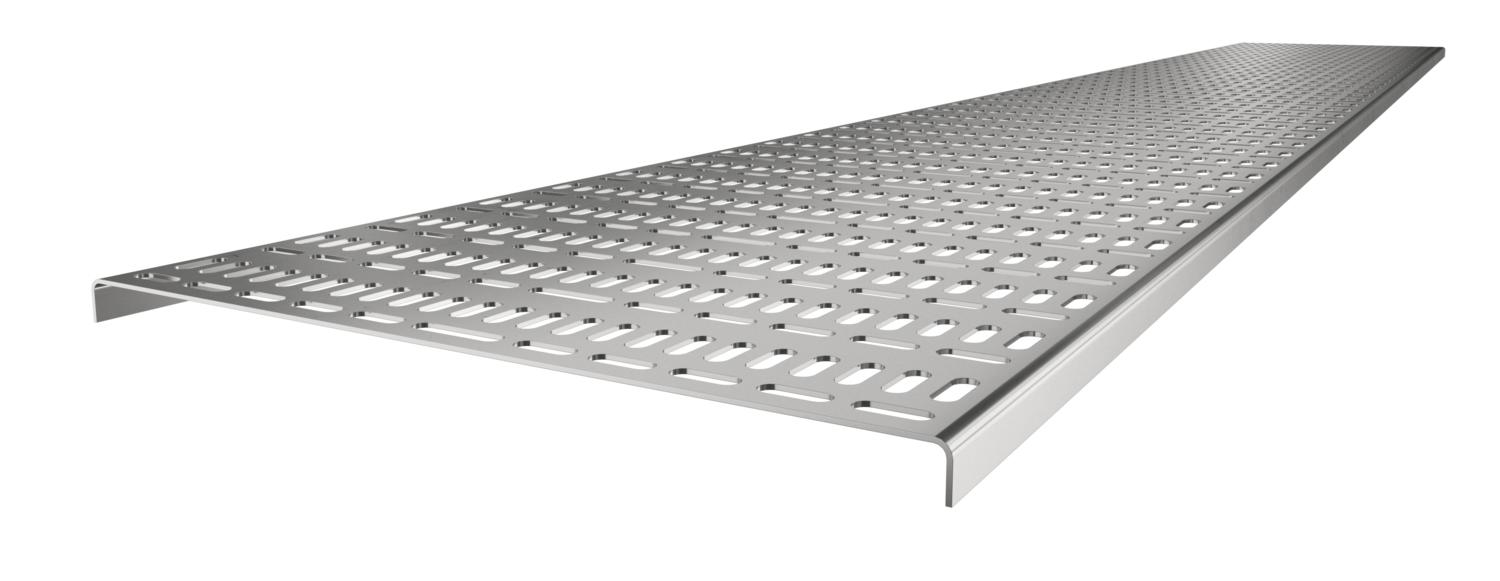

Cable tray, marine standard A2

All types
