Cable tray for conveyor technology 60 FS 3000 | 100 | 1.5 | no | Steel | Strip galvanized

Cable tray for conveyor technology 60 FS

Item no. 6061851 | EAN 4012197407339

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

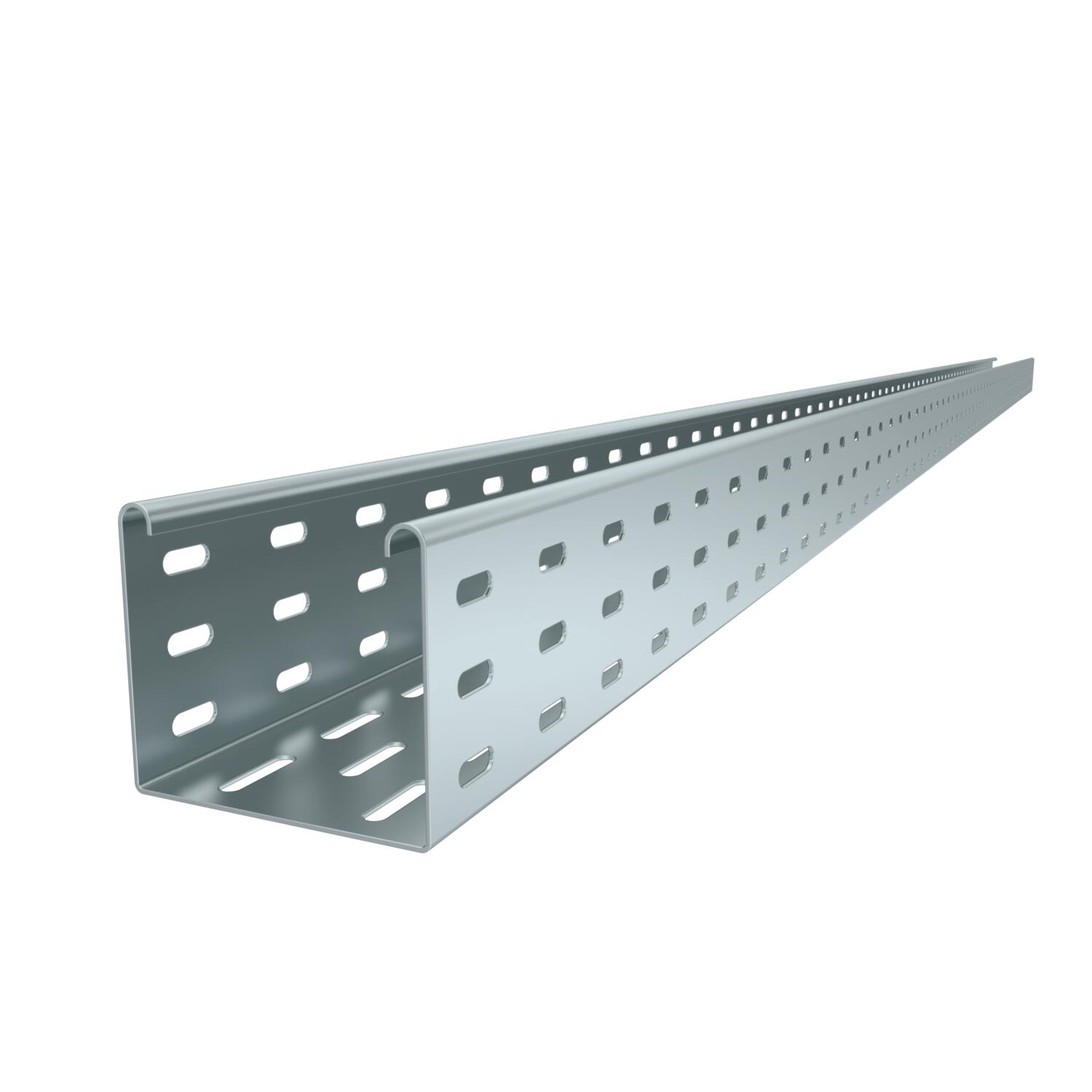

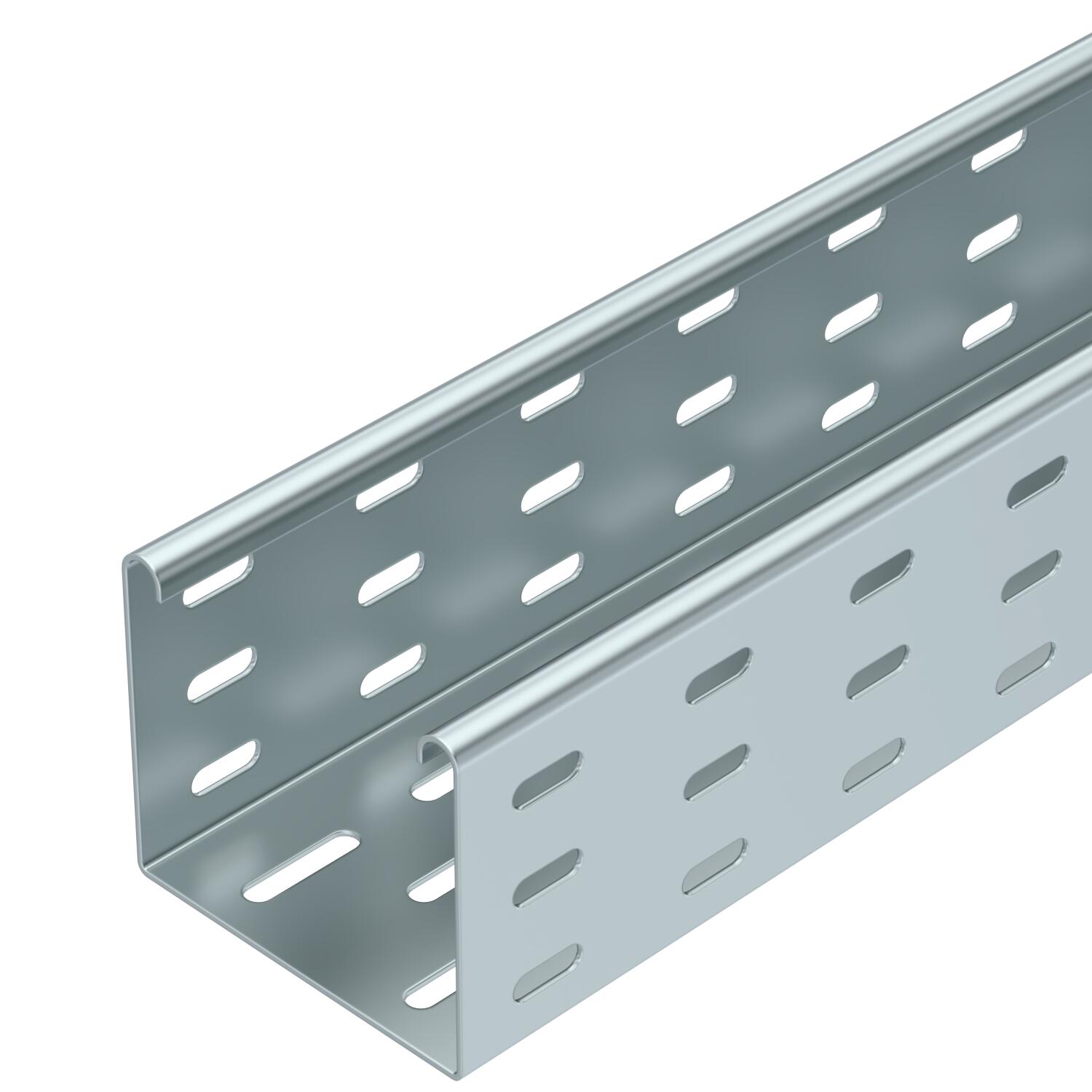

Perforated cable tray for the routing of cables, especially suited for material handling technology in the automotive industry. Can be used in indoor areas. Screw connection. Suitable for direct and elevated floor mounting.

Technical data

Technical data

Colour	zinc
Connector version	Without connectors

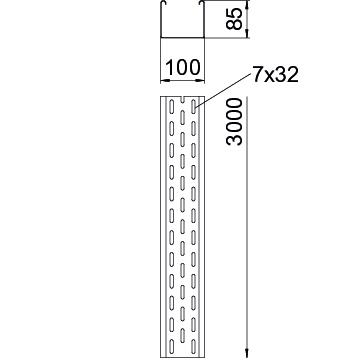

Dimension	85x100x3000
Dimension	85x100
Dimension B	100 mm
Dimension H	85 mm
Height	85 mm
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	1,5 mm
Rustproof steel, pickled	no
Side perforation	no
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	83 cm²
Usable cross-section	8300 mm²
Usable length	3000 mm
Wide-span version	no
Width	100 mm
With cover	no

All types

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.
BKRS F 810 FS	3000 mm	100 mm	1.5 mm	no	Steel	Strip galvanized	6061851
BKRS F 820 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6061853
BKRS F 830 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6061855
