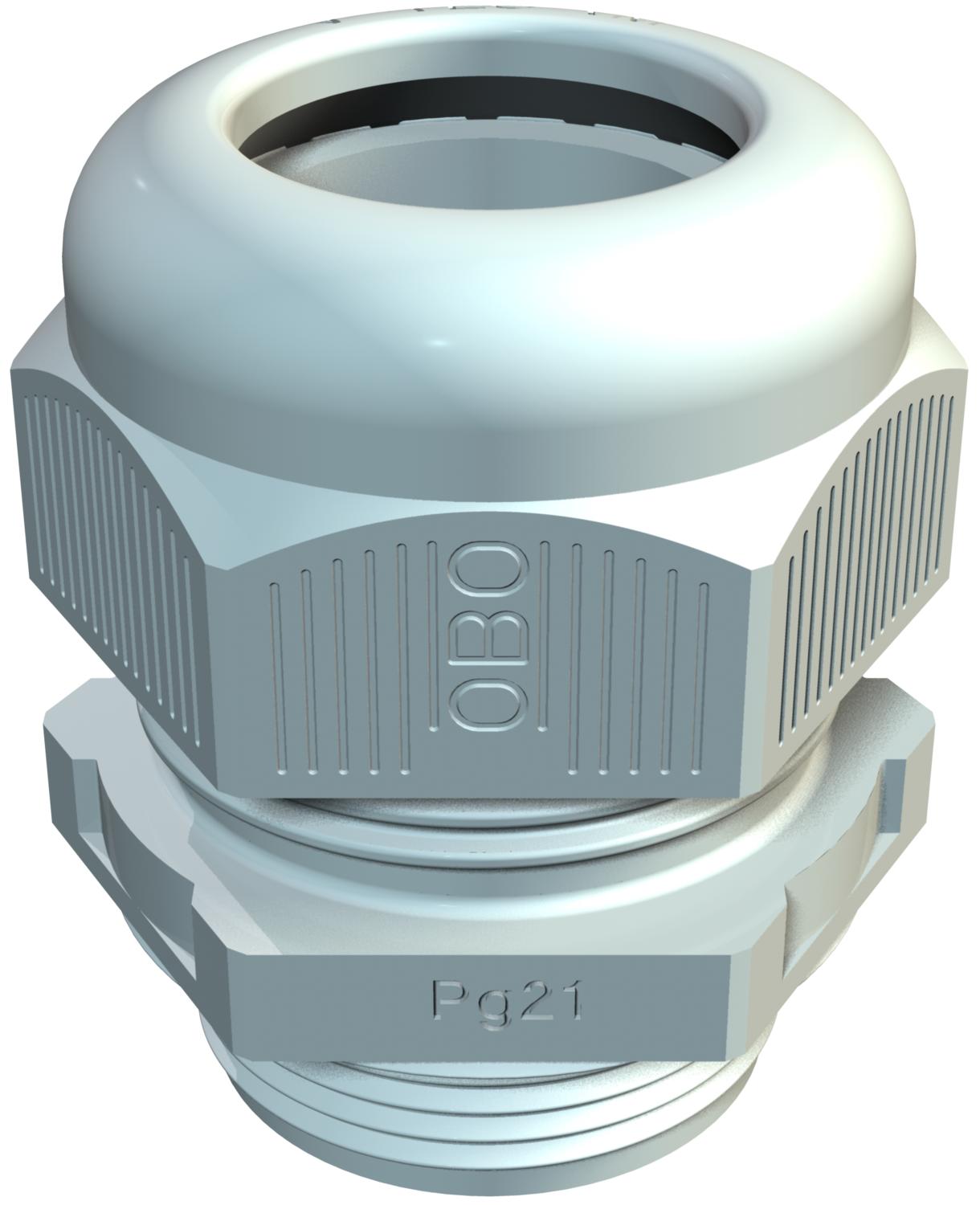

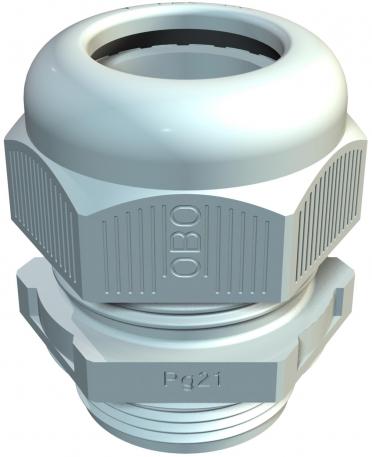

Cable gland, PG thread, silver grey
Item no. 2022680 | EAN 4012195161110
- Product description
-
Product descriptionCable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data

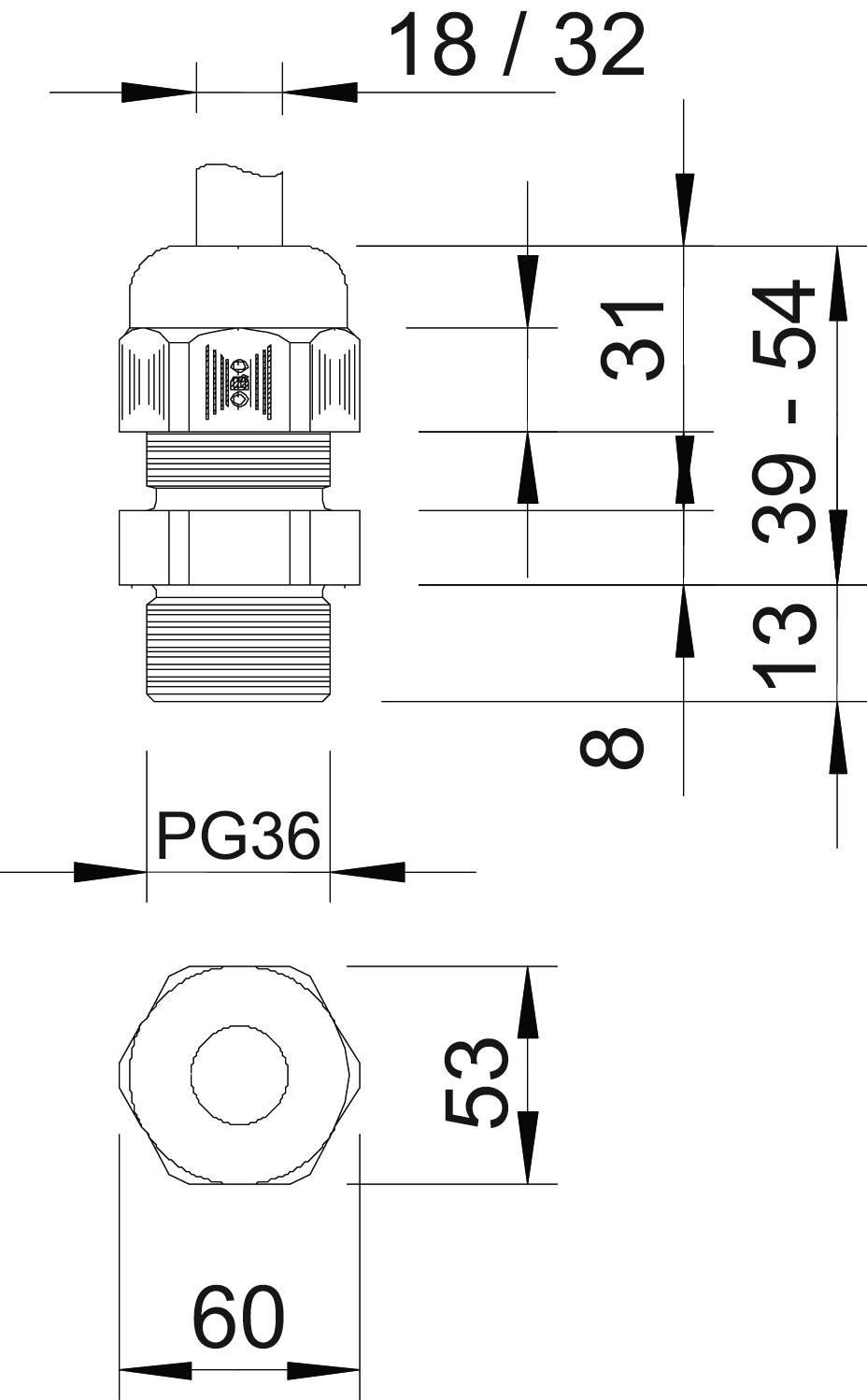

Bend protection no CO2 Footprint (GWP) Cradle-to-Gate 0,3475 kg CO₂e / 1 Piece Colour Silver grey; RAL 7001 Dimension PG36 Dimension E 60 mm Dimension L max. 54 mm Dimension L min. 39 mm Dimension L1 13 mm Dimension L2 8 mm Dimension L3 31 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 60 mm Impact-resistant no Material Polyamide Nominal thread size 36 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 32 mm Sealing area D, min. 18 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread Pg 36 Thread increase 1,41 mm Thread length 13 mm Thread type PG Type of seal Sealing ring Unstable torque 5 Nm Version for Straight WAF 53 With locknut no - All types
-
All types
-
Mounting accessories
Products Types Item no.
Locknut, PG thread
116 PG36 2043351 - Downloads
-
