Cable eye stiffener FT 10

morepic-1

morepic-2

Cable eye stiffener FT

Item no. 5301106 | EAN 4012195414315

Item no. / Types

for cable diameter, min.

Product description

Product description

Cable eye stiffener to DIN 65457.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0684 kg CO2e / 1 Piece
Dimension	10mm
Dimension A	47,5 mm
Dimension B	11 mm

for cable diameter, min.	10 mm
Material	Steel
Surface	Hot-dip galvanised

All types

All types

Types	for cable diameter, min.	Item no.
946 5 G	5 mm	5301009
946 3 G	3 mm	5301033
946 4 G	4 mm	5301041
946 6 G	6 mm	5301068
946 8 G	8 mm	5301084
946 10 FT	10 mm	5301106

Downloads

Data sheet 946 10 FT / 5301106 , 0.11MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity 946 10 FT / 5301106 , 0.06MB , pdf

Download

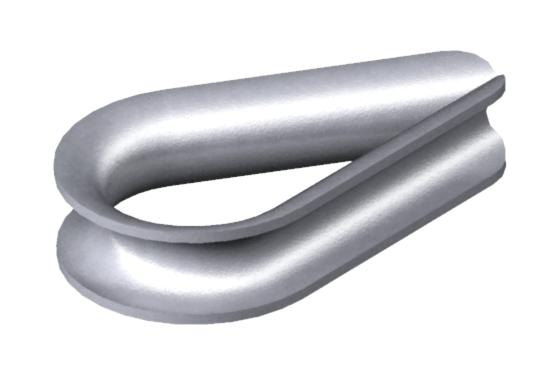

Product graphic 946 10 FT / 5301106, 15.93 kB, jpg

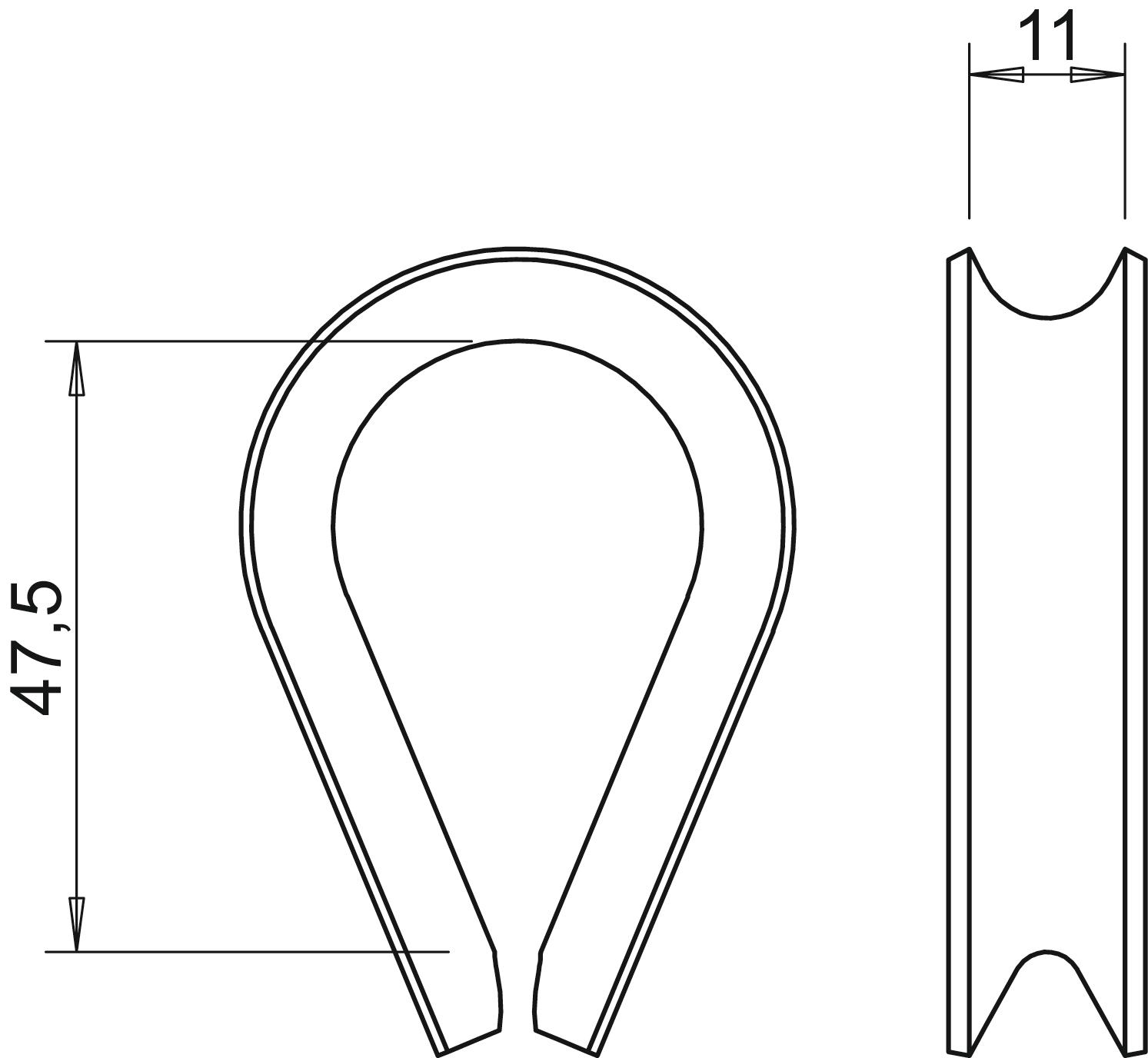

Scale drawing 946 10 FT / 5301106, 83.18 kB, jpg

946 10 FT / 5301106
