Cable connection sleeve 33.5 | 82 | <TEXT><P>Pg 21</P></TEXT>
morepic-1 morepic-2 morepic-3

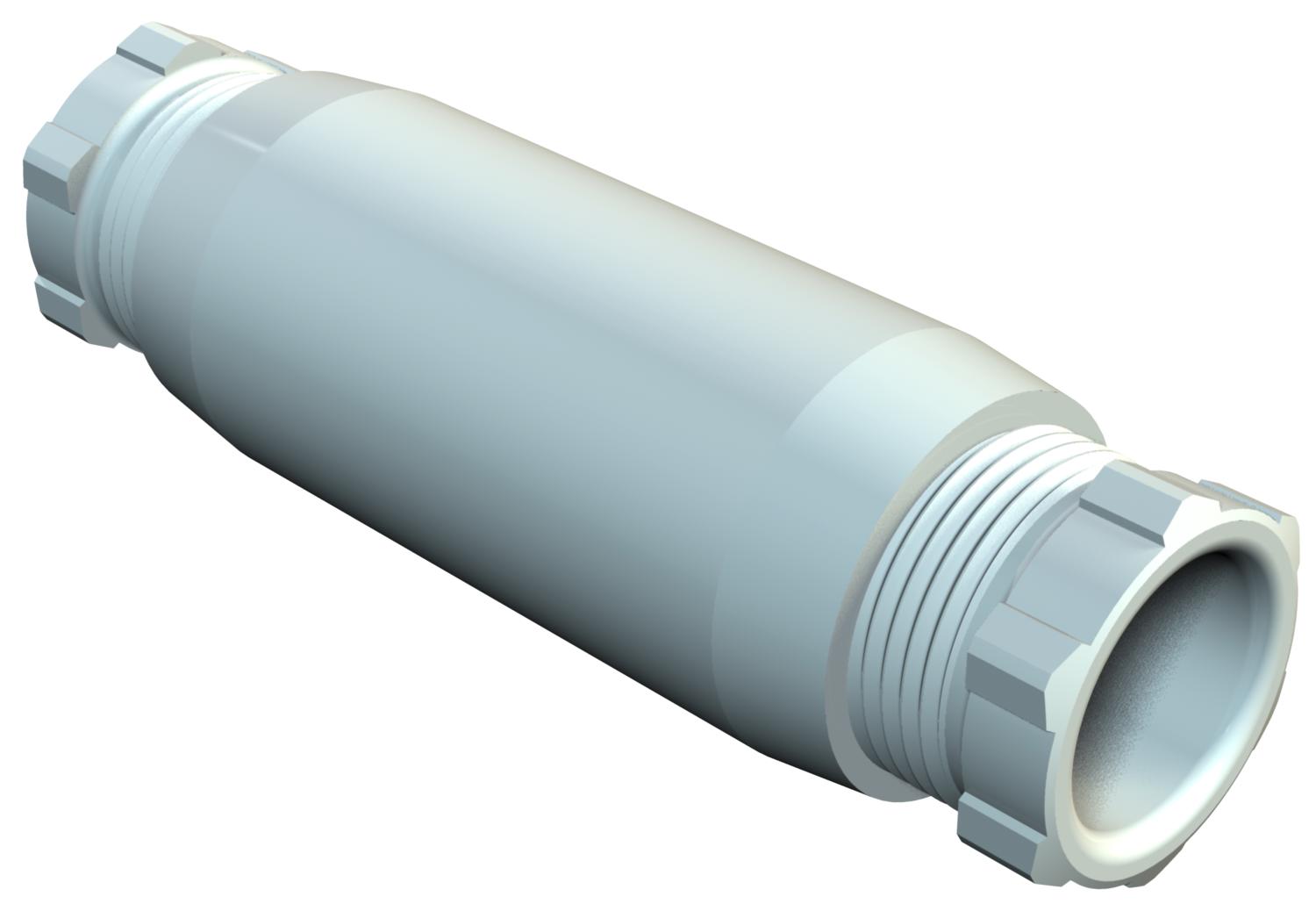

Cable connection sleeve

Item no. 2022060 | EAN 4012195159919

Product description
Product description
Protection rating IP54, nominal voltage 660 V. VDE specifications state that connection sleeves are only intended for local routing.
117/6 VDE: Nennquerschnitt mm²,mit 5poligem Klemmeinsatz 6 mm² und Kabeleinführungen mit Zugentlastung Pg 21 für Kabeldurchmesser 12-18 mm
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Protection rating IP 54
  • Nominal cross-section 2.5 mm²
  • Nominal cross-section 6 mm²
  • Thread Pg
  • Nominal voltage 660 V
  • 5-pole
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,2342 kg CO₂e / 1 Piece
Colour Light grey; RAL 7035
Dimension 6mm2

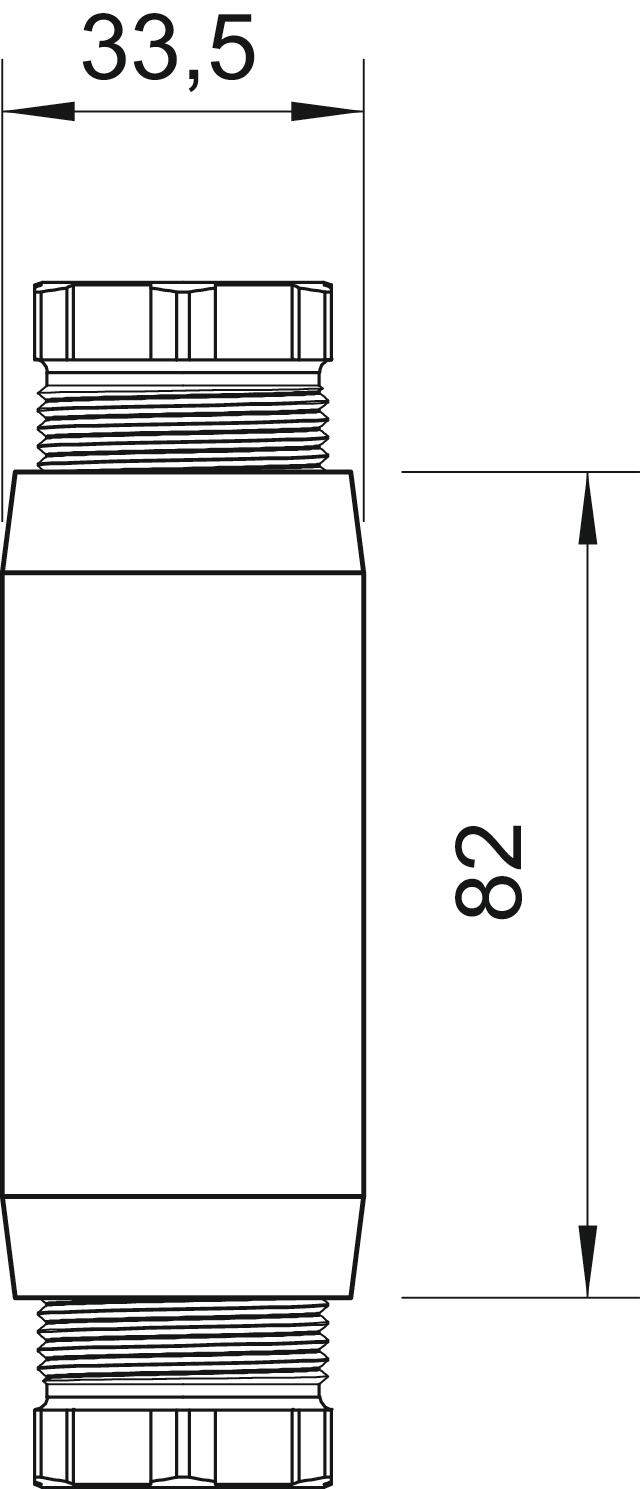

Dimension D 33,5 mm
Dimension L 82 mm
Entries

Pg 21
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Nominal voltage 660 V
Protection rating IP54
All types

All types

Types Dimension D Dimension L Entries Item no.
117 5x2.5 28 mm 64 mm <TEXT><P>Pg 16</P></TEXT> 2022028
117 5x6 33.5 mm 82 mm <TEXT><P>Pg 21</P></TEXT> 2022060
Downloads

Download

Download
Download
Download

REACH Declaration of conformity 117 5x6 / 2022060 , 0.12MB , pdf
Download
RoHS Declaration of conformity 117 5x6 / 2022060 , 0.12MB , pdf
Download

117 5x6 / 2022060
