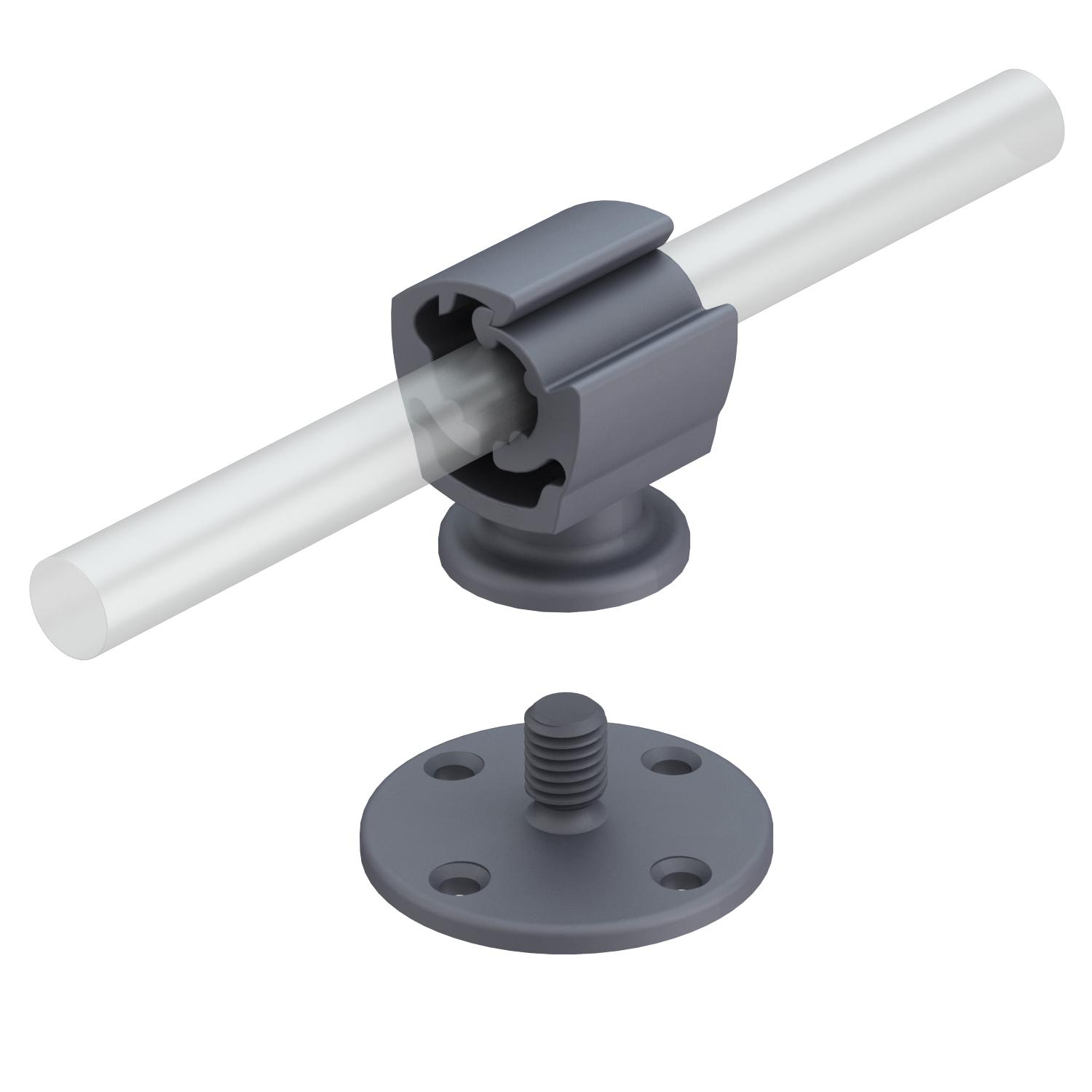

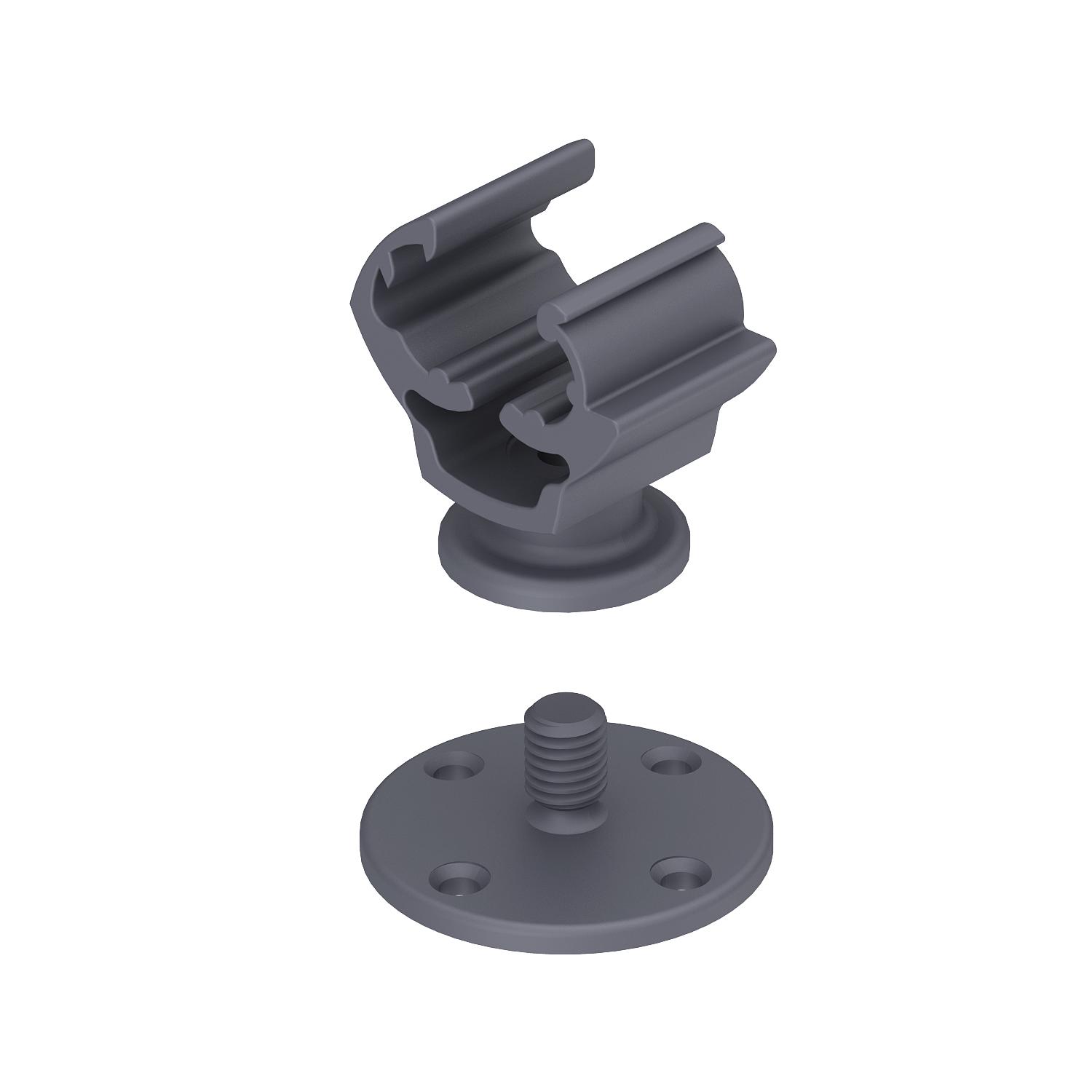

Cable bracket, Rd 8−10 mm with bonding base
Item no. 5207451 | EAN 4012195009726
- Product description
-
Product description• For bonding to concrete, steel or smooth substrates
• Not suitable for rough surfaces such as plaster, wood, bitumen strips
• Processing at > +15 °C and on cleaned substrate
• When installing flat conductors and round conductors, expansion elements are to be used for thermal compensation
• Use on film roofs after consultation with the responsible roof construction company
- Technical data
-
Technical data

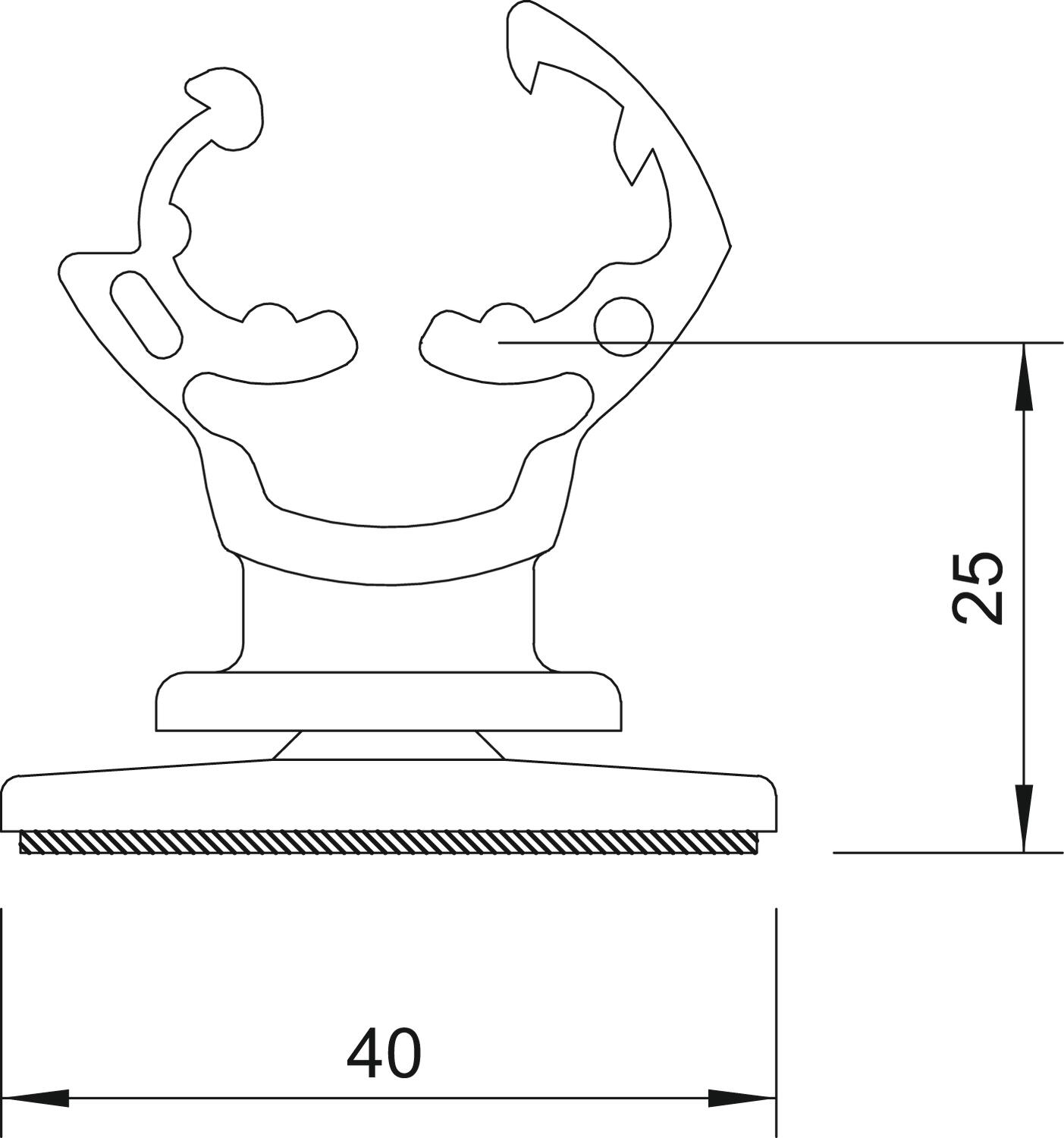

CO2 Footprint (GWP) Cradle-to-Gate 0,0668 kg CO2e / 1 Piece Conductor fastening type With clip Dimension M8 Dimension H 25 mm High voltage-resistant, insulated version no Material Polyamide Material of the base Polyamide Material of the crossbar Polyamide Material of the holder Polyamide Use in Ex area yes - All types
- Downloads
-
Data sheet 177 20 KL / 5207451 , 0.19MB , pdfEU declaration of conformity 177 20 KL / 5207451 , 0.06MB , pdf
