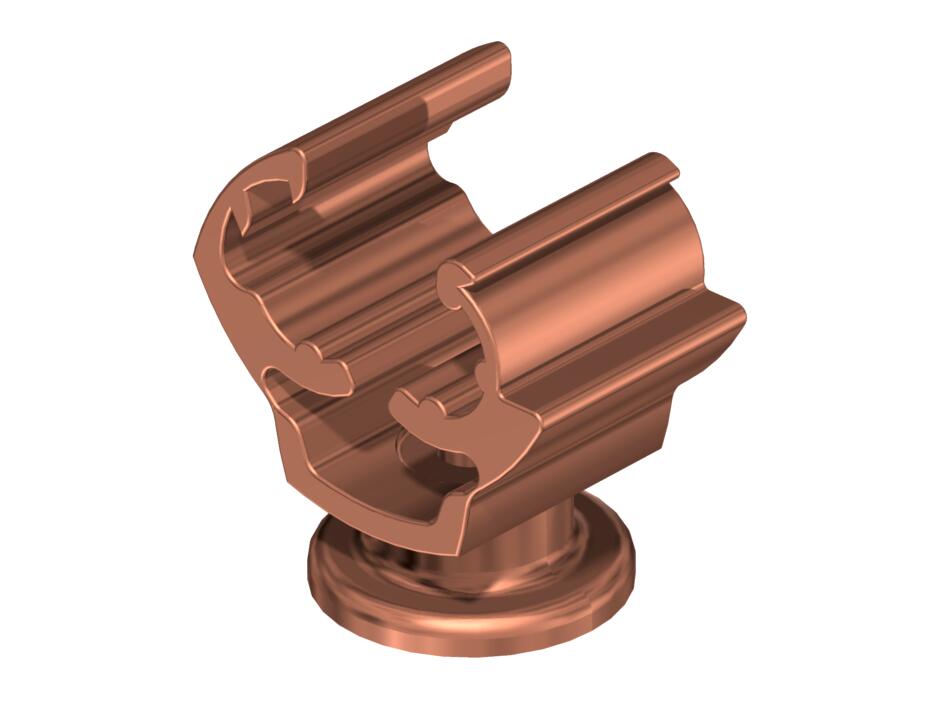

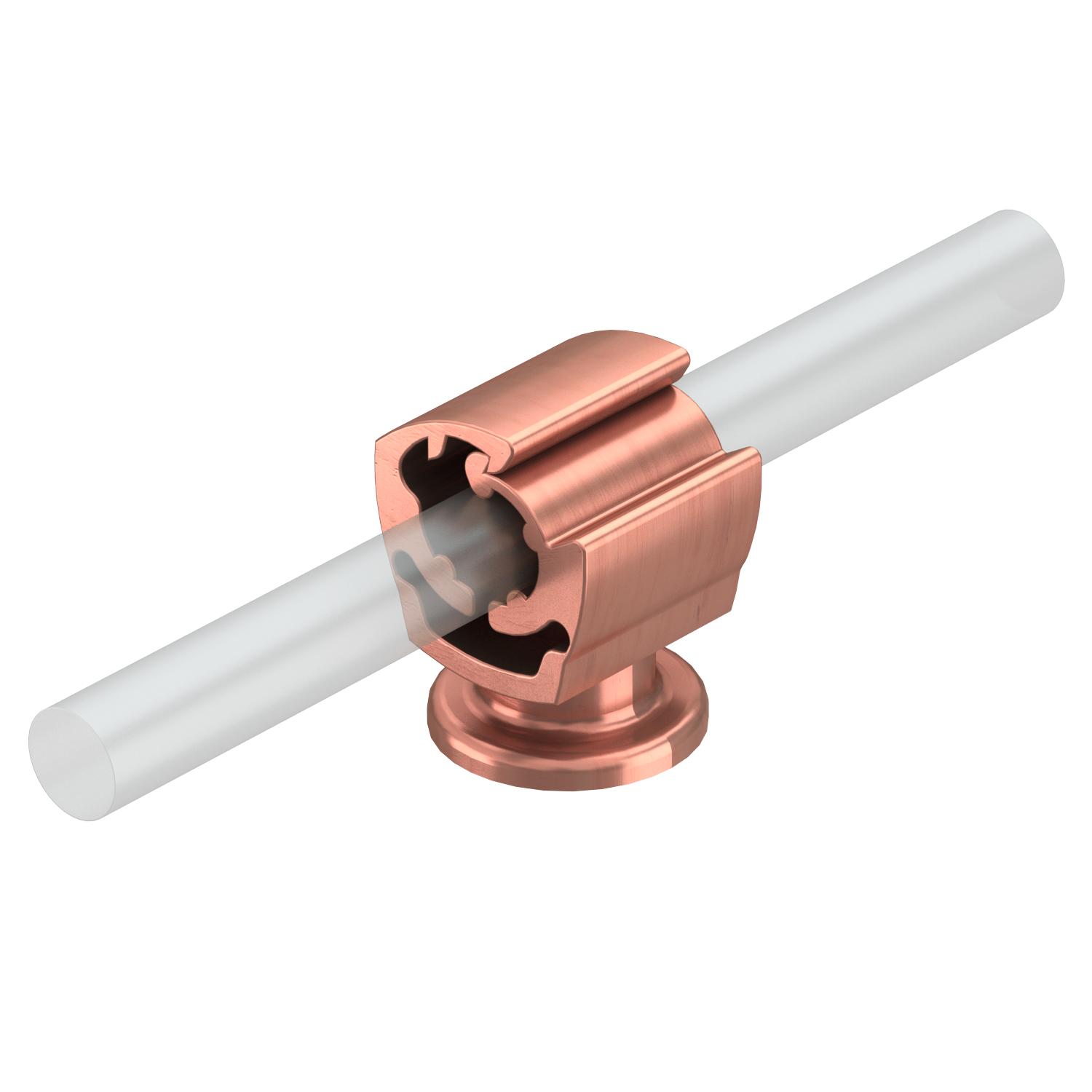

Cable bracket Rd 8–10 mm, copper-plated

Item no. 5207746 | EAN 4012195904991

8−10 mm round
Product description
Product description
• With female thread M8 for screwing and through hole for wood screws
• Colour: copper
• Weather and temperature-resistant from -35 °C to +90 °C
Technical data

Technical data

Cable dimensions 8−10 mm round
CO2 Footprint (GWP) Cradle-to-Gate 0,0335 kg CO2e / 1 Piece
Colour Copper
Conductor fastening type With clamp clip
Dimension 20mm
Holder fastening type Drill hole with M-thread
Material Polyamide
Material of the base Polyamide
Material of the crossbar Polyamide
Material of the holder Polyamide
Mounting height 20 mm
Thread metric 8
All types

All types

Types Cable dimensions Mounting height Item no.
177 20 CU 8−10 mm round 20 mm 5207746
177 30 CU 8−10 mm round 30 mm 5207754
177 55 CU 8−10 mm round 55 mm 5207762
Downloads

Download

Download
Download

177 20 CU / 5207746
