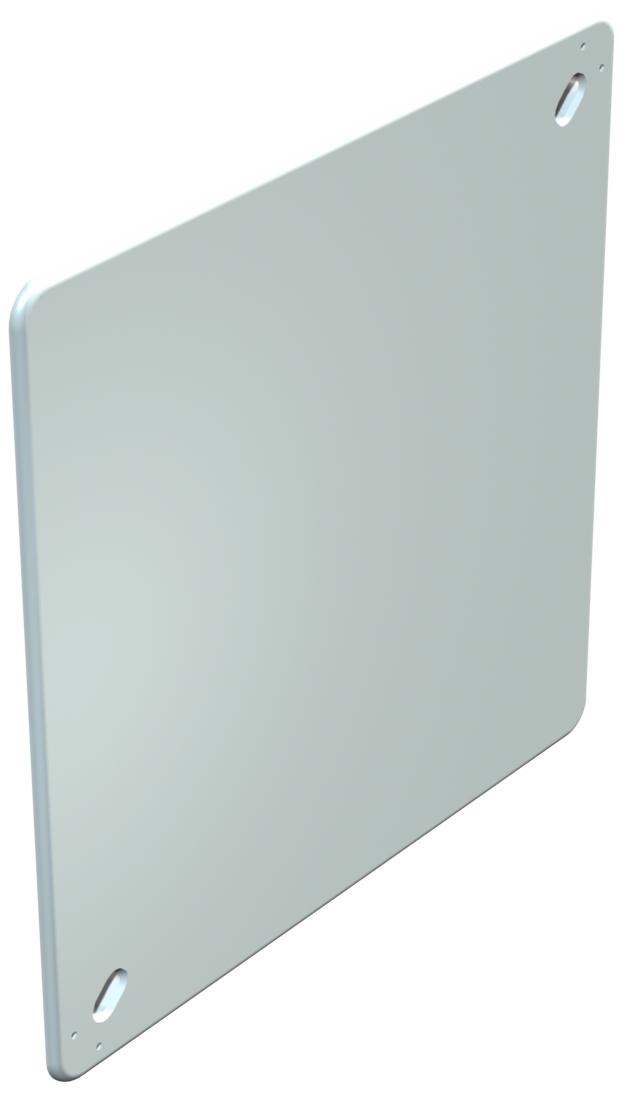

Box cover
Item no. 2003252 | EAN 4012195025276
- Product description
-
Product descriptionBox cover suitable for the connection sockets, type UV...K, cover edge is flush, surface is roughened, cover bolts can be lowered.
-
- Technical data
-
Technical data

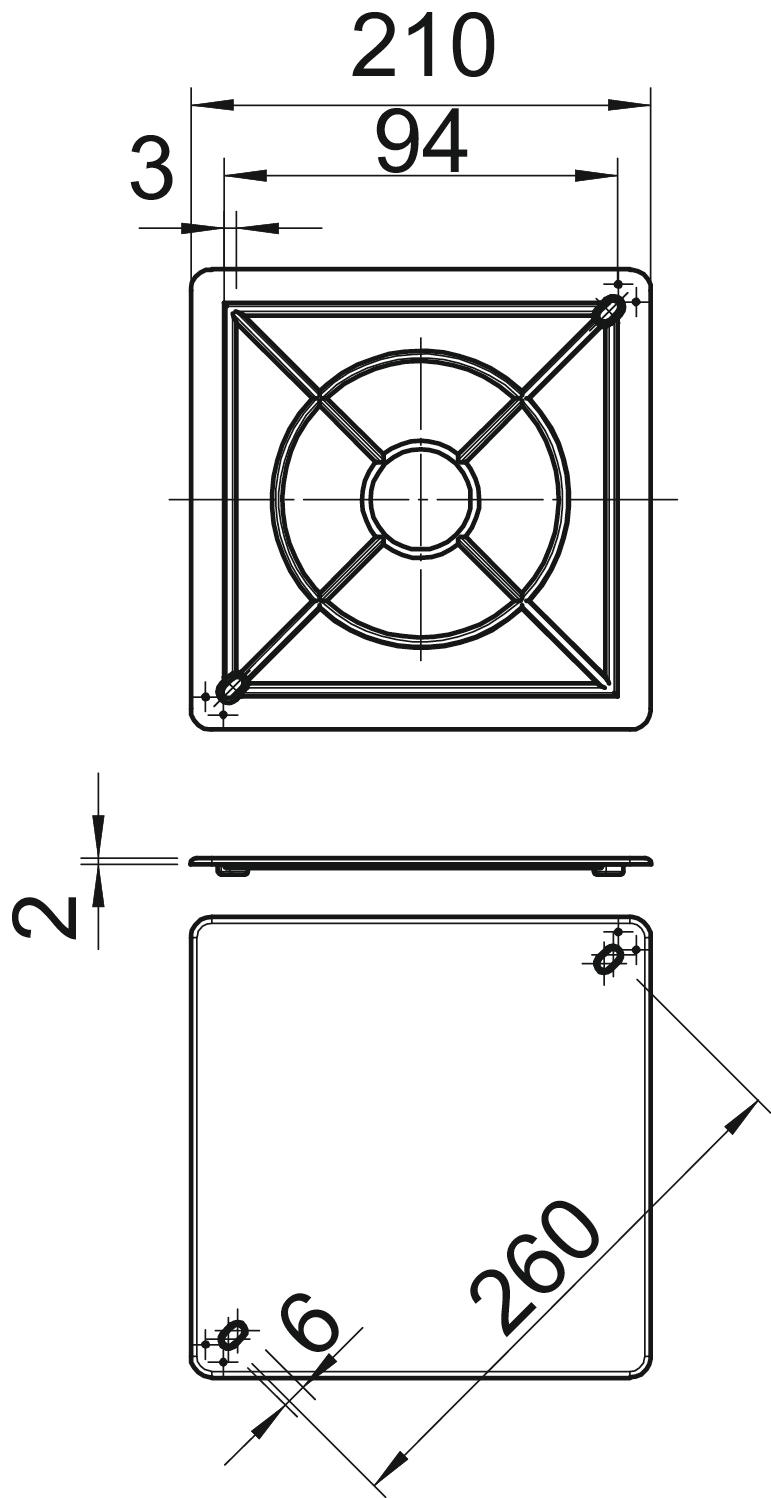

CO2 Footprint (GWP) Cradle-to-Gate 0,3402 kg CO₂e / 1 Piece Colour White Dimension 210x210x2 Dimension A 260 mm Dimension B 210 mm Dimension s 2 mm Fastening type Screw-on lid Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Halogen-free yes Height 2 mm Length 210 mm Material Polystyrene Sealable yes Shape Square Width 210 mm With bolts no - All types
- Downloads
-
Data sheet UV 200 D / 2003252 , 0.16MB , pdfREACH Declaration of conformity UV 200 D / 2003252 , 0.12MB , pdfRoHS Declaration of conformity UV 200 D / 2003252 , 0.13MB , pdf
