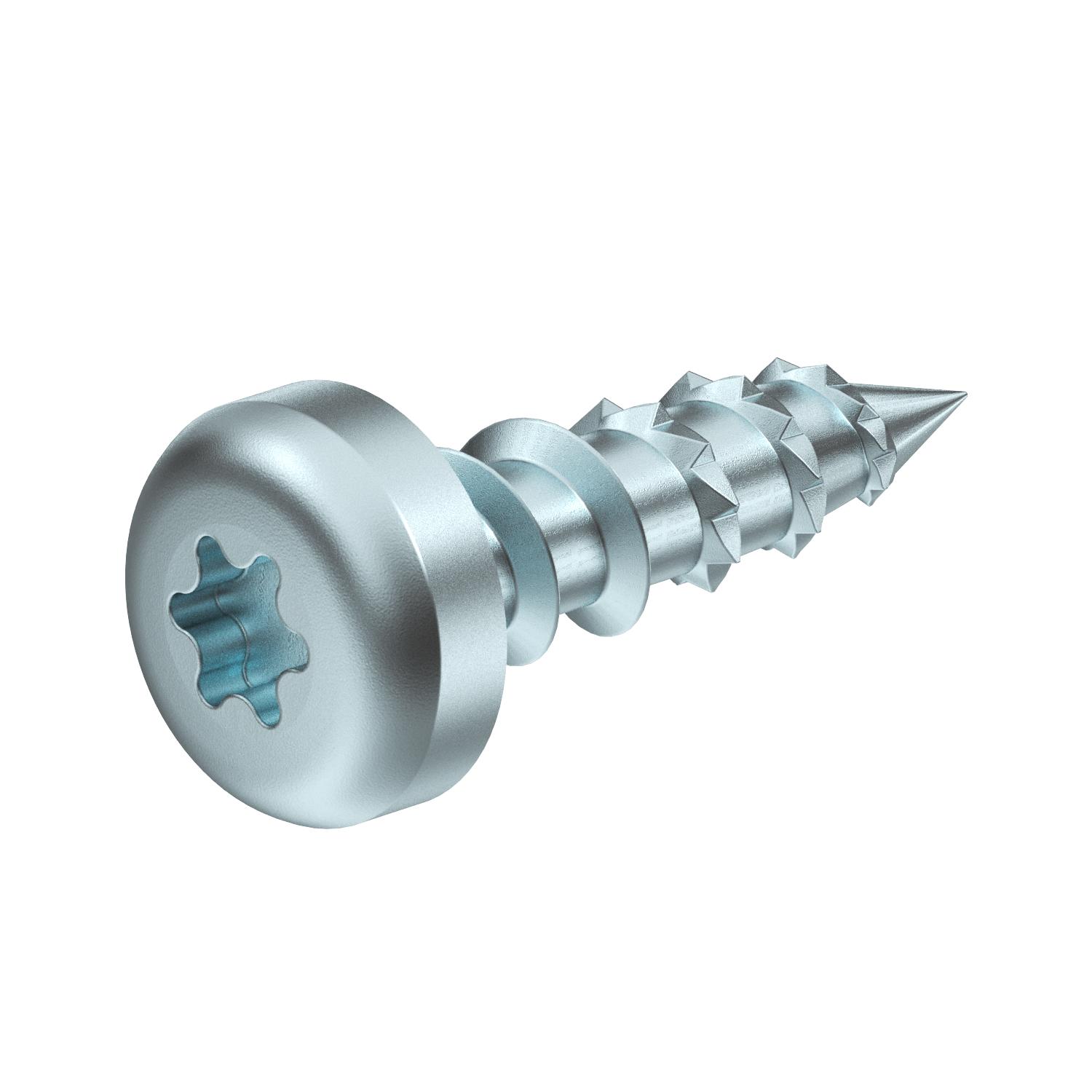

Bolt for cable fastening, KRS 5x20
Item no. 3498098 | EAN 4012195918912
- Product description
-
Product descriptionBolt with special milling ribs for PYROLINE® Con D and PYROLINE® Con S fire protection ducts, to fasten cable clips in the duct. Required plate thickness: At least 20 mm.
-
- Technical data
-
Technical data

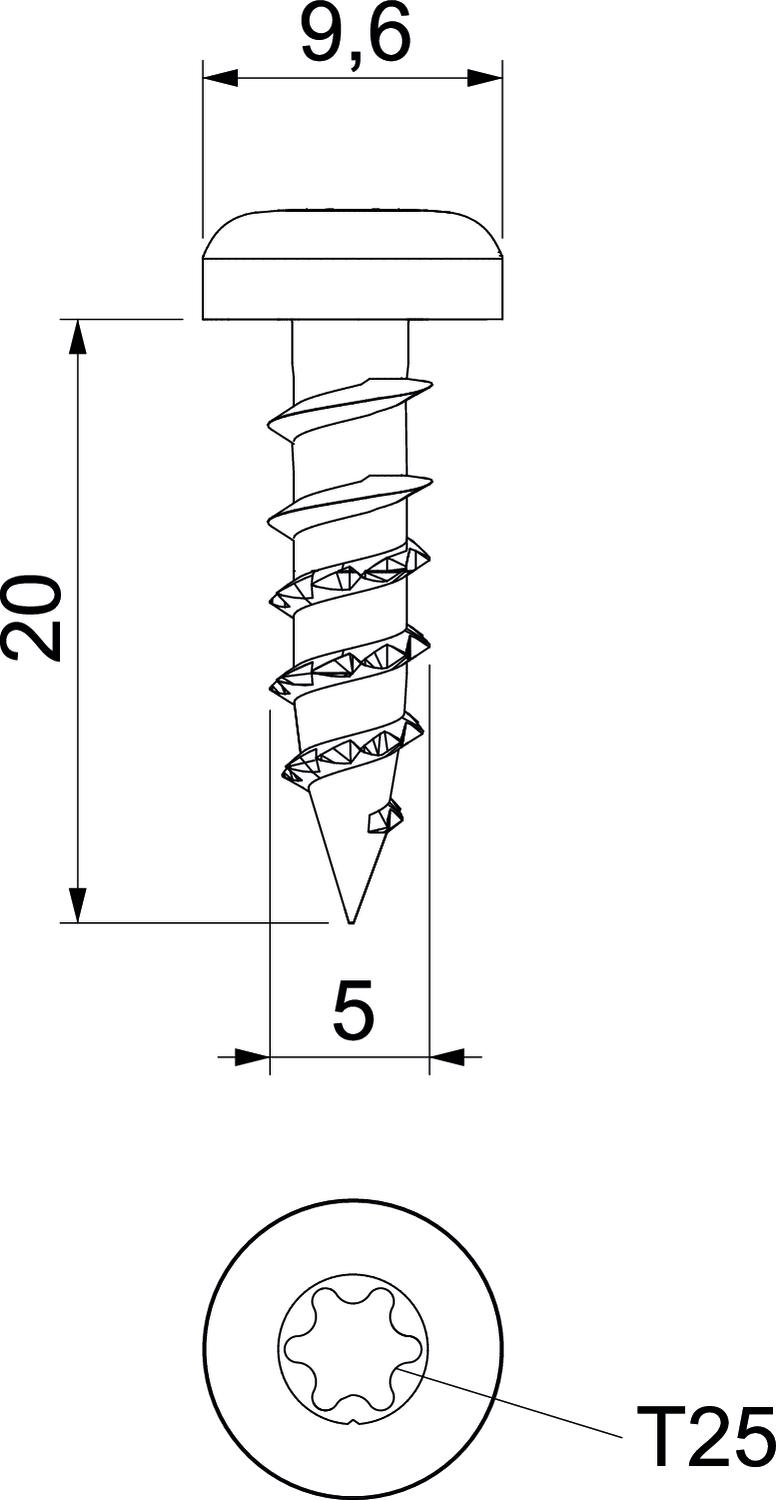

Colour zinc Dimension 5x20 Dimension d 5 mm Dimension D 9,6 mm Dimension L 20 mm Head shape Miscellaneous Length 20 mm Material Steel Screw system Torx Surface Electrogalvanized, transparently passivated Thread diameter ST 5 - All types
- Downloads
-
Data sheet KRS 5x20 / 3498098 , 0.19MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
