Blanking cover for mounting support
Item no. 7407047 | EAN 4012195861300
- Product description
-

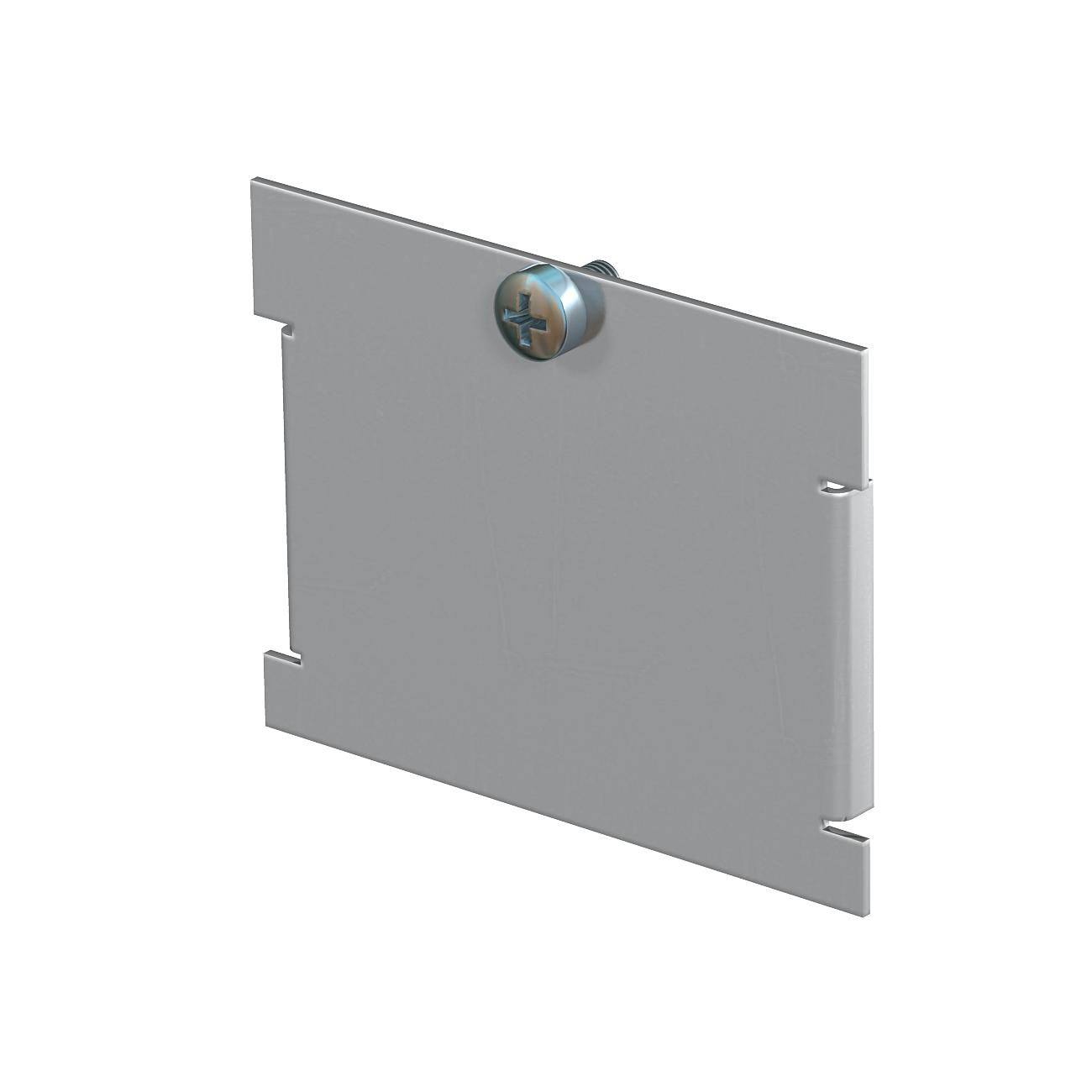

Product descriptionBlanking cover to close off an unused mounting slot for a support plate.
-
- Technical data
-
Technical data

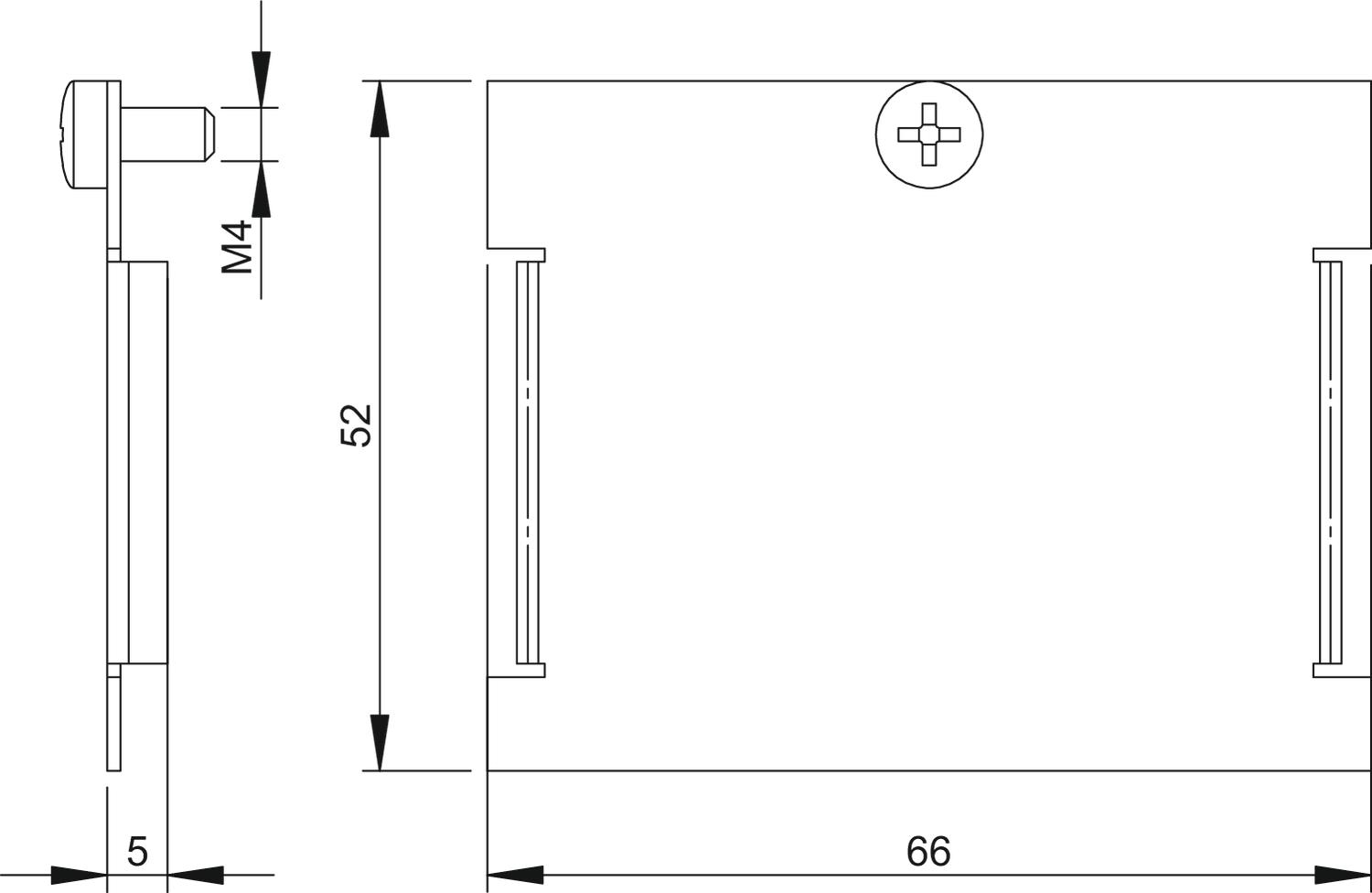

Application Mounting box Blanking lid yes CO2 Footprint (GWP) Cradle-to-Gate 0,1383 kg CO2e / 1 Piece Colour Jet black; RAL 9005 Decouplable no Depth 48,6 mm Dimension 62x66x4,5 Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Installation technology Miscellaneous Labelling panel no Length 72 mm Lowerable to be flush-floor no Material Steel Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for labelling panel no Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Surface Strip galvanized With floor covering recess no - All types
- Downloads
-
Data sheet MTU B / 7407047 , 0.16MB , pdfREACH Declaration of conformity MTU B / 7407047 , 0.12MB , pdfRoHS Declaration of conformity MTU B / 7407047 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
