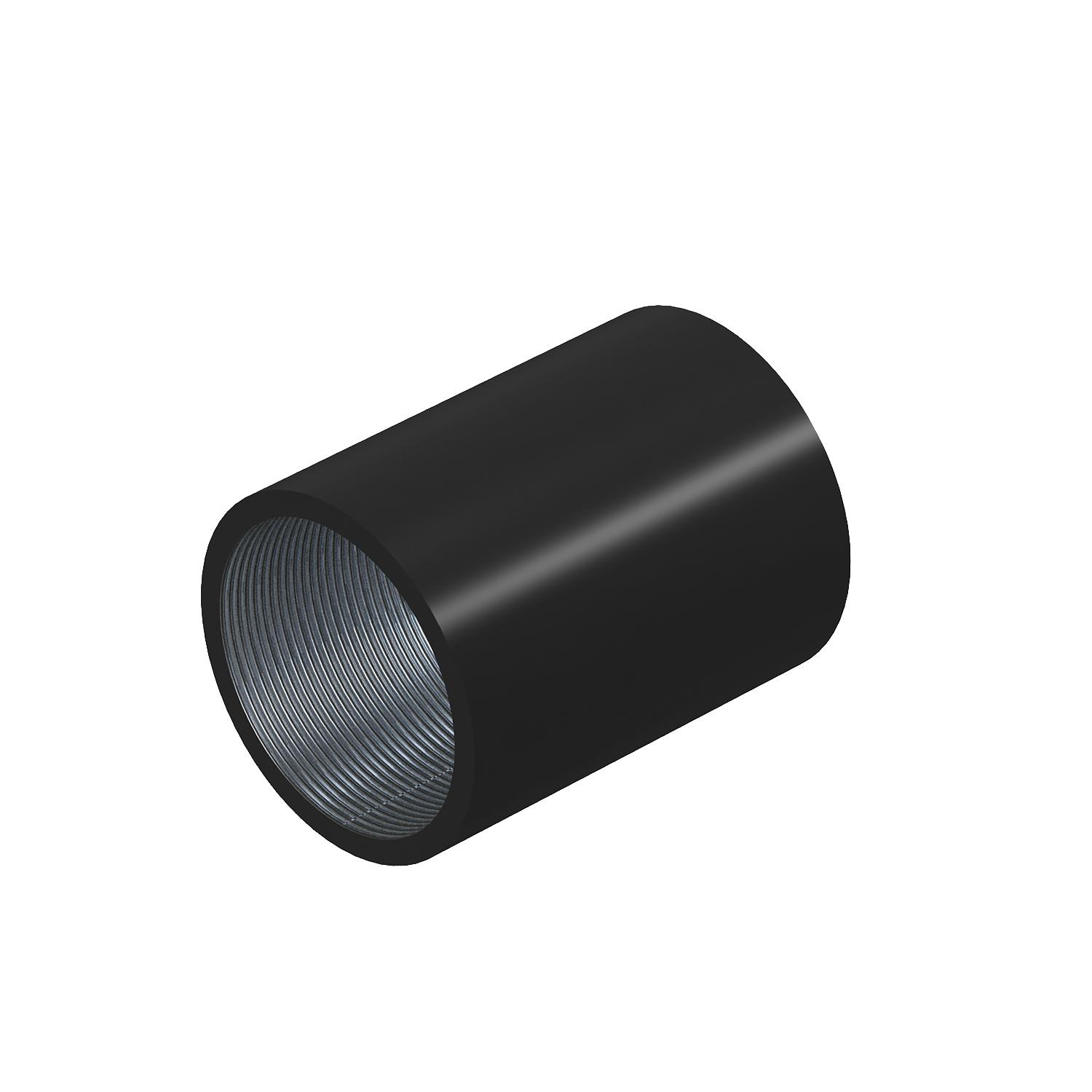

Black powder-coated steel sleeve, with thread

Item no. / Types

for pipe diameter

Thread

Product description

Product description

Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.

Technical data

Brushed surface	no
CO2 Footprint (GWP) Cradle-to-Gate	0,3795 kg CO₂e / 1 Piece
Colour	Jet black; RAL 9005

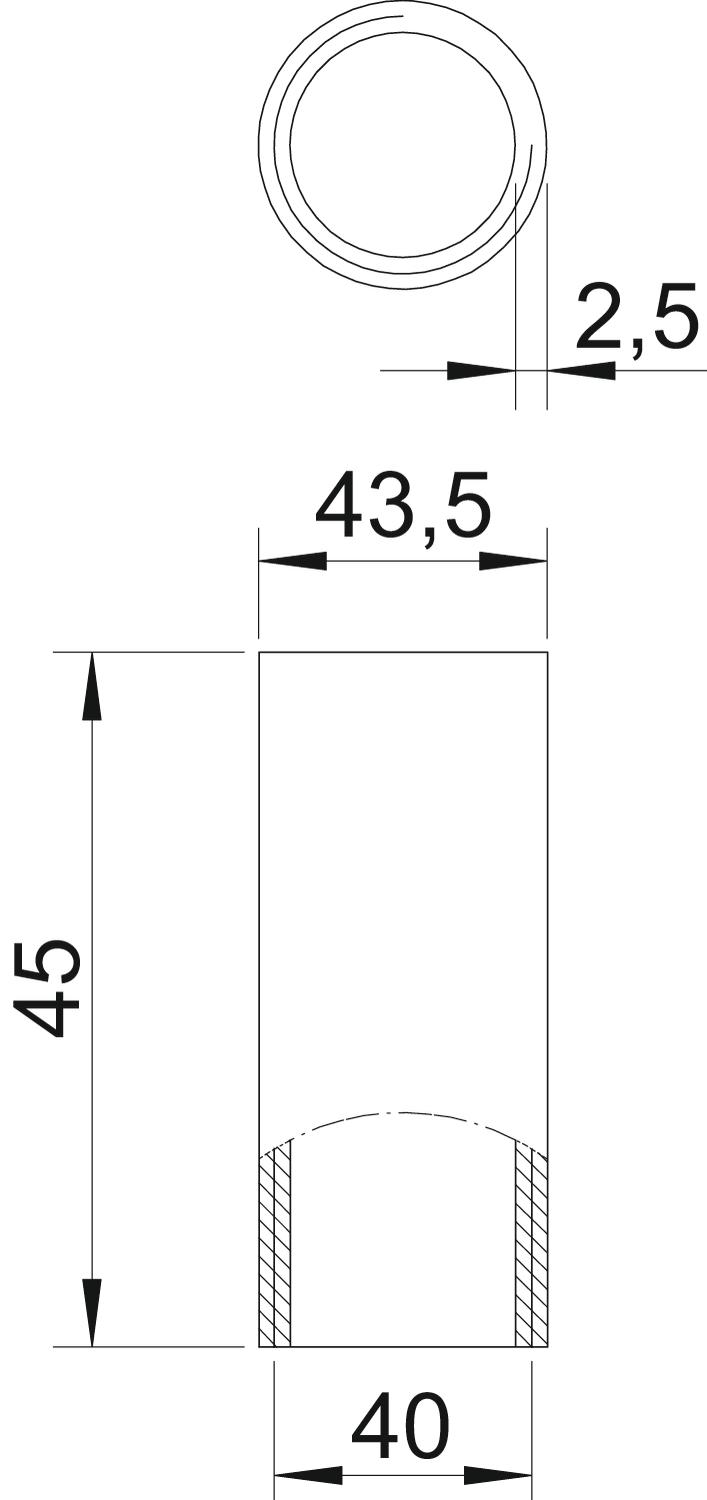

Dimension	M40x1,5
Dimension D	43,5 mm
Dimension d	40 mm
Dimension L	45 mm
Dimension m (mm)	M40
Dimension t	2,5 mm
for pipe diameter	40 mm
Halogen-free	no

Length	45 mm
Material	Steel
Permitted temperature range, max.	250 °C
Permitted temperature range, min.	-45 °C
Polished surface	no
Size	40
Surface	PES50 - Polyester/epoxy
Thread	M40x1,5
Two-part	no
Version for	Thread
With inspection opening and lid	no

All types

All types

Types	for pipe diameter	Thread	Item no.
SVM16W SW	16 mm	M16x1,5	2046522
SVM20W SW	20 mm	M20x1,5	2046523
SVM25W SW	25 mm	M25x1,5	2046524
SVM32W SW	32 mm	M32x1,5	2046525
SVM40W SW	40 mm	M40x1,5	2046526
SVM50W SW	50 mm	M50x1,5	2046527
SVM63W SW	63 mm	M63x1,5	2046528
