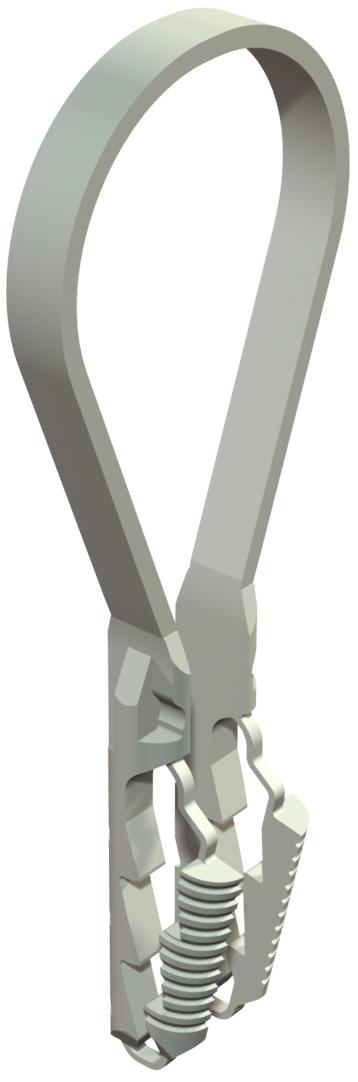

BKS clamp clip
Item no. 2148803 | EAN 4012195947899
- Product description
-
Product descriptionFor cables, flexible pipes and all kinds of insulating and armoured steel pipes, suitable for concrete, calcareous limestone and full brick. Use in gas concrete masonry is possible, but reduced load capacities must be expected.
-
- Technical data
-
Technical data

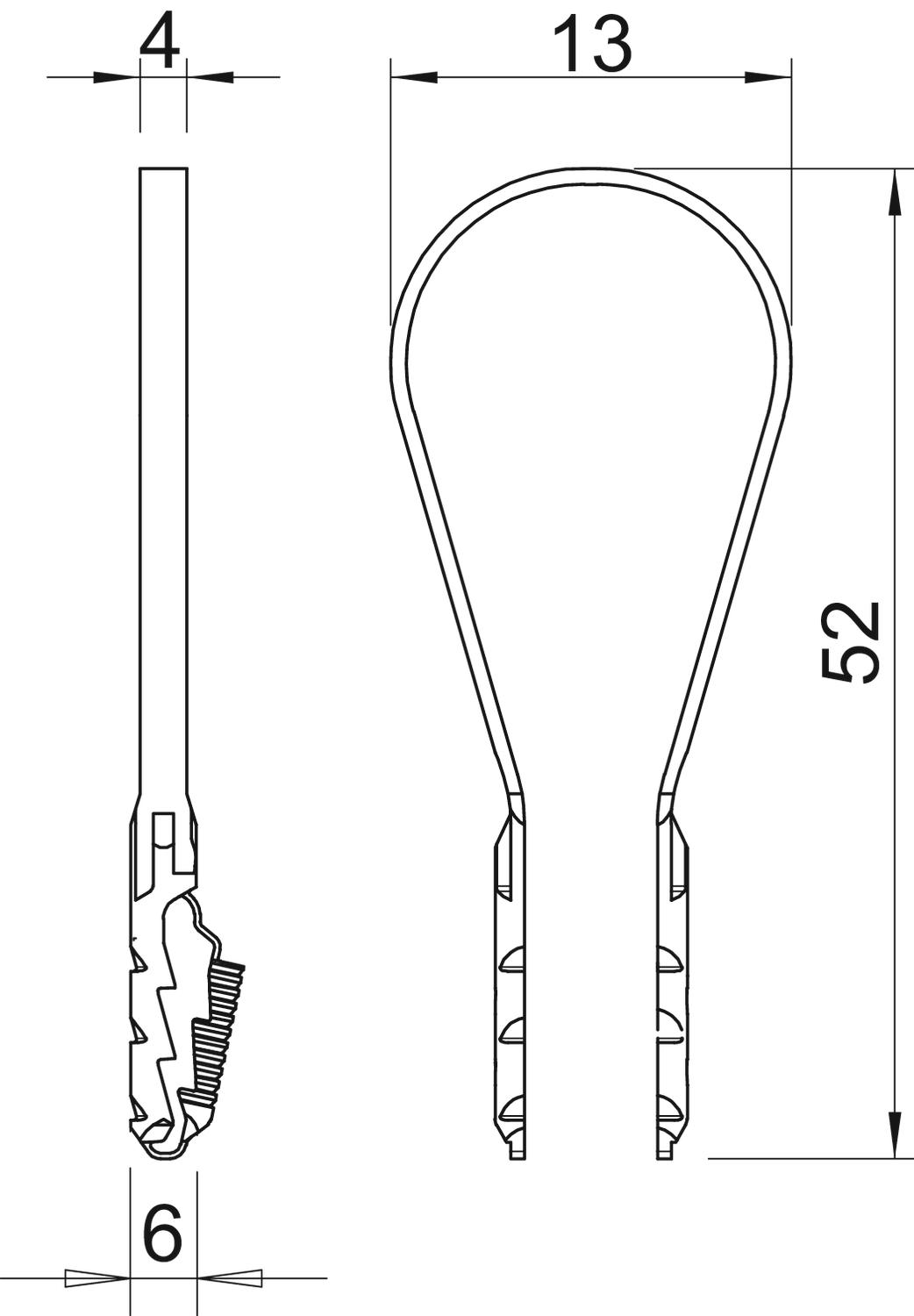

Clamping range D, max. 13 mm Clamping range D, min. 3 mm CO2 Footprint (GWP) Cradle-to-Gate 0,0053 kg CO₂e / 1 Piece Colour Light grey; RAL 7035 Dimension 3-13mm Dimension D 13 mm Dimension L 52 mm Drill hole depth 50 mm Drill hole diameter, min. 6 mm Fastening type Plug fastening Halogen-free yes Material Polyamide Pull-out value 500 N Version for Closed - All types
- Downloads
-
Data sheet 1973 3-13 LGR / 2148803 , 0.16MB , pdfEU declaration of conformity 1973 3-13 LGR / 2148803 , 0.06MB , pdfREACH Declaration of conformity 1973 3-13 LGR / 2148803 , 0.12MB , pdfRoHS Declaration of conformity 1973 3-13 LGR / 2148803 , 0.12MB , pdf
