BKRS FT Z support
Item no. 6044601 | EAN 4012196640669
- Product description
-

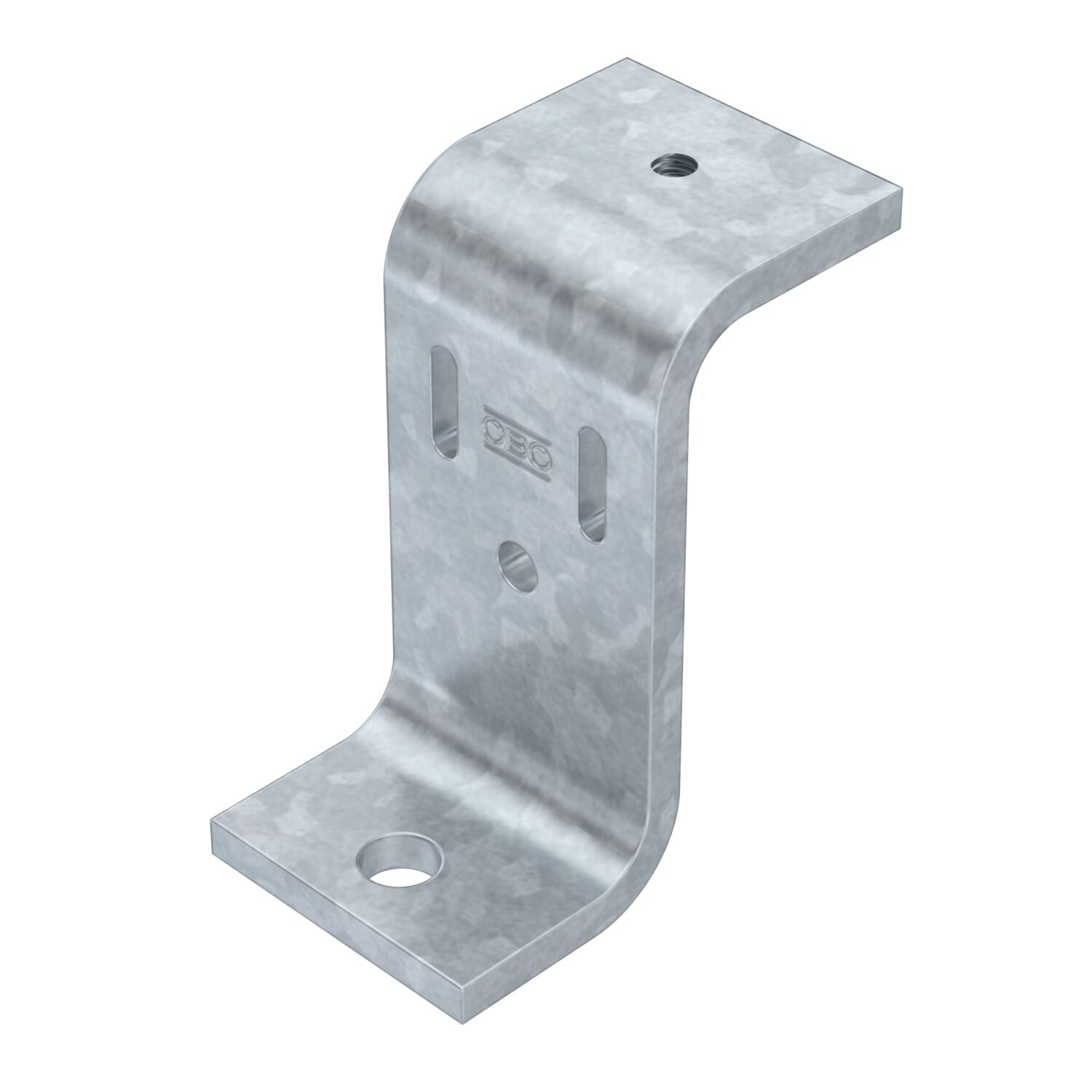

Product descriptionZ support as a stand-off of the walkable BKRS cable tray system on the floor. Fastening of the cable tray on the Z support with flat-head screw FKS 6 x 12 mm (item no. 6049246) with M6 threaded hole.
-
- Technical data
-
Technical data

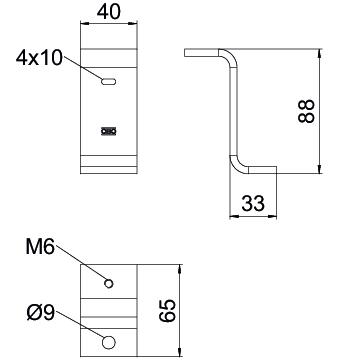

CO2 Footprint (GWP) Cradle-to-Gate 0,4806 kg CO2e / 1 Piece Colour zinc Dimension 65x40x88 Dimension B 88 mm Height 88 mm Length 65 mm Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Miscellaneous Width 40 mm - All types
-
Mounting accessories
Products Types Item no.

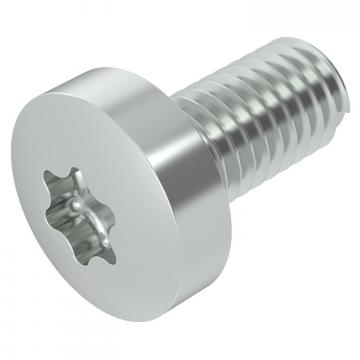

Flat-head screw with hexalobular internal G
FKS 6x12 G 6049246 - Downloads
-
Data sheet ZST 100 BKRS FT / 6044601 , 0.16MB , pdfEU declaration of conformity ZST 100 BKRS FT / 6044601 , 0.10MB , pdfREACH Declaration of conformity ZST 100 BKRS FT / 6044601 , 0.12MB , pdfRoHS Declaration of conformity ZST 100 BKRS FT / 6044601 , 0.13MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
