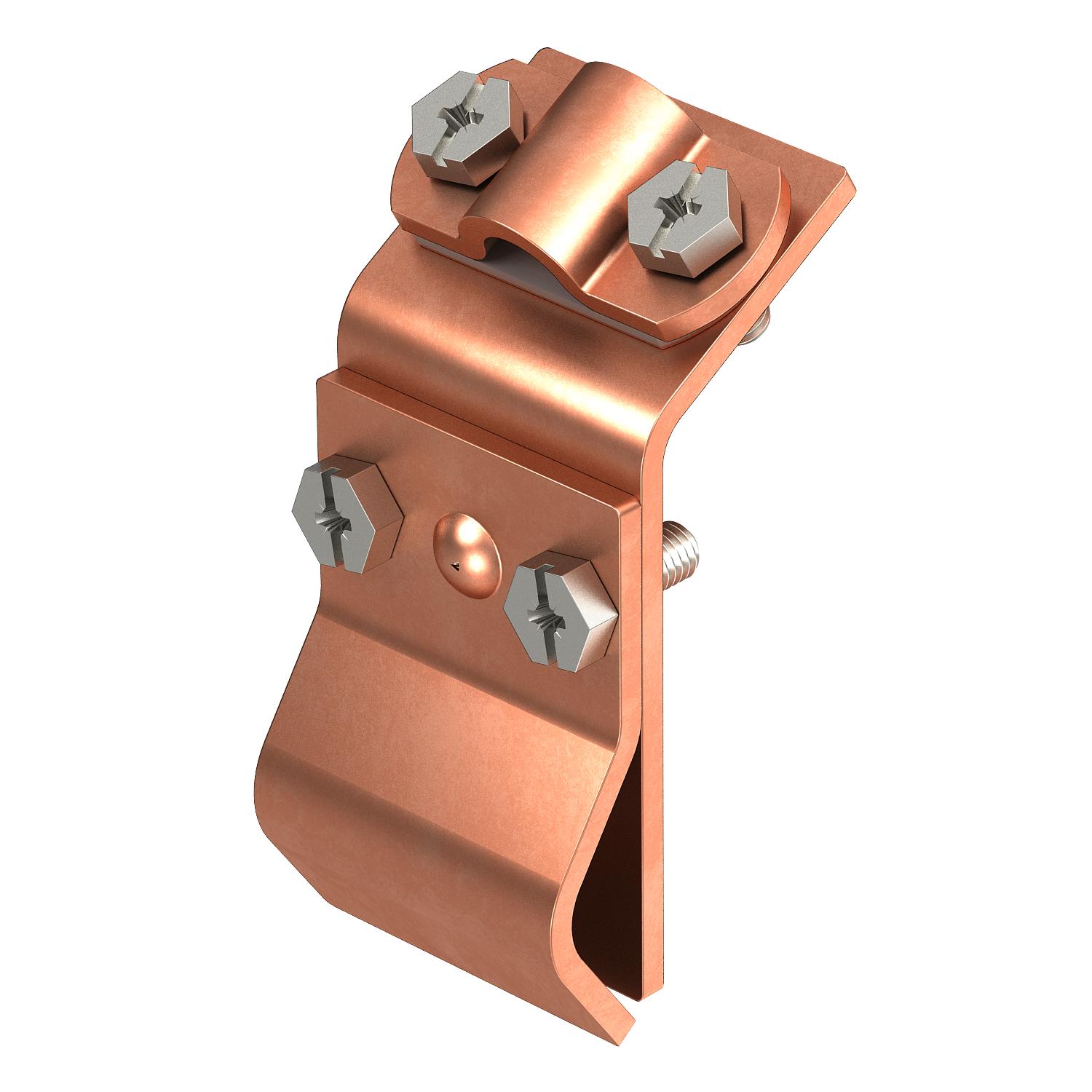

Bi-metal roof gutter clamp for all bead thicknesses
Item no. 5316170 | EAN 4012195818359
- Product description
-

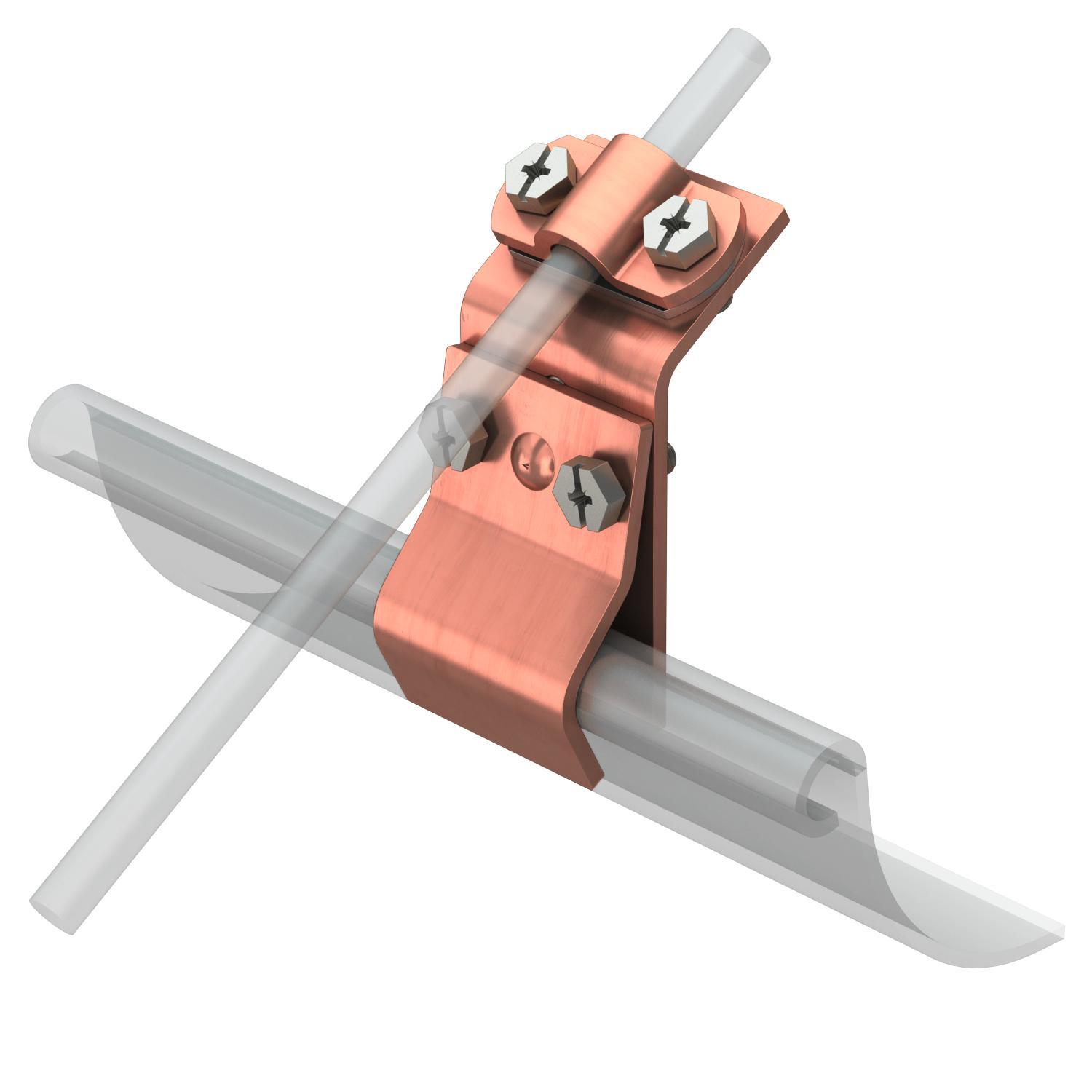

Product descriptionGutter clamp to connect round conductors to roof gutters
• Suitable for all bead thicknesses
• Bi-metal for connection of aluminium or hot-dip galvanised steel round conductors to copper roof gutters, without corrosion of the different metals
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,8017 kg CO2e / 1 Piece Dimension 8mm Fit Rd 8-10 mm Material Steel Surface Hot-dip galvanised Type of connector Roof gutter clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 262 ZM / 5316170 , 0.17MB , pdfEU declaration of conformity 262 ZM / 5316170 , 0.06MB , pdfREACH Declaration of conformity 262 ZM / 5316170 , 0.27MB , pdfRoHS Declaration of conformity 262 ZM / 5316170 , 0.12MB , pdf
