Bending radius limit
Item no. 6035982 | EAN 4012197438760
- Product description
-

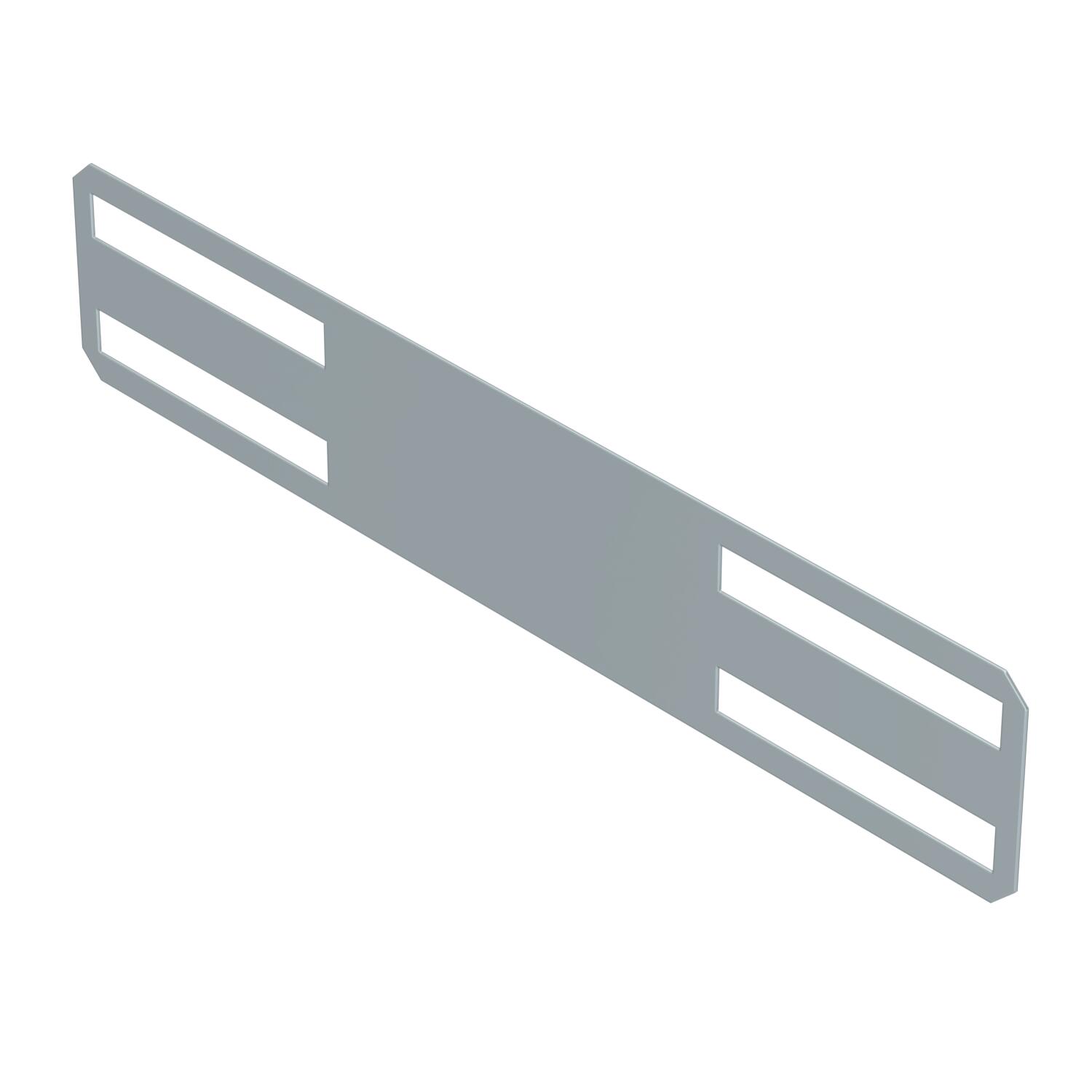

Product descriptionBending radius limit for creating the necessary bending radii when laying network and data cable using cable trays. Suitable for horizontal branches with fitting – 90° bend, 45° bend, angle-adjustable bend, T piece, add-on tee and cross-over. Fits side height of 60 mm. Mounting between fitting and cable tray with screws or clamps for fitting fastening.
-
- Technical data
-
Technical data

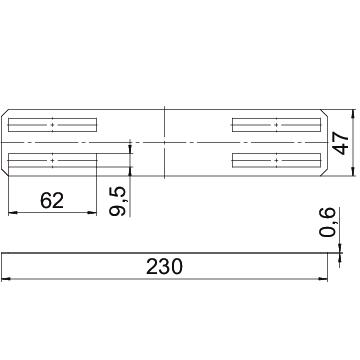

CO2 Footprint (GWP) Cradle-to-Gate 0,1415 kg CO2e / 1 Piece Colour zinc Dimension 47x230x0,6 Dimension 60x230 From tray width 100 mm Height 47 mm Length 230 mm Material Steel Material thickness 0,6 mm Profile shape Flat profile Suitable for cable tray yes Suitable for profile shapes Cable tray Surface Strip galvanized With screw accessories no - All types
- Downloads
-
Data sheet BRL 60 FS / 6035982 , 0.18MB , pdfEU declaration of conformity BRL 60 FS / 6035982 , 0.10MB , pdf
