Automated fitted unit BRK AEE3-1 406 | Light grey; RAL 7035
morepic-1

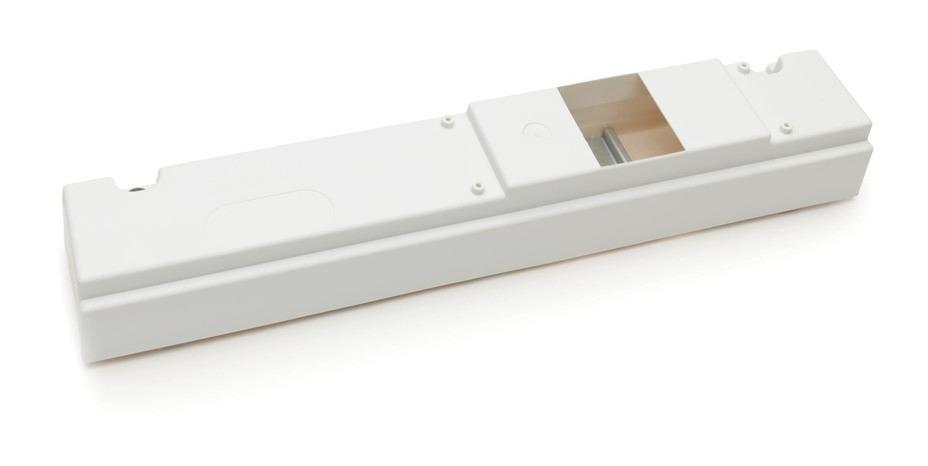

Automated fitted unit BRK AEE3-1

Item no. 6133602 | EAN 4012196716999

6133602 / BRK AEE3-1
406 mm
Light grey; RAL 7035
Product description
Product description
Automated fitted unit with 3 part units for the installation of miniature circuit breakers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Cable entry yes
CO2 Footprint (GWP) Cradle-to-Gate 1,0484 kg CO2e / 1 Piece
Colour Light grey; RAL 7035
Dimension 59x70x406
DIN rail yes
Extension option no
Halogen-free yes
Height 59 mm
Length 406 mm
Material Polypropylene
Number of rows 1
Number of units 3
Suitable for duct depth 70
Transparent lid yes
Type of cover Transparent
Width 70 mm
With mounting plate no
All types

All types

Types Length Colour Item no.
BRK AEE3-1 406 mm Light grey; RAL 7035 6133602
Downloads

Download

EU declaration of conformity BRK AEE3-1 / 6133602 , 0.10MB , pdf
Download
REACH Declaration of conformity BRK AEE3-1 / 6133602 , 0.13MB , pdf
Download
RoHS Declaration of conformity BRK AEE3-1 / 6133602 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
