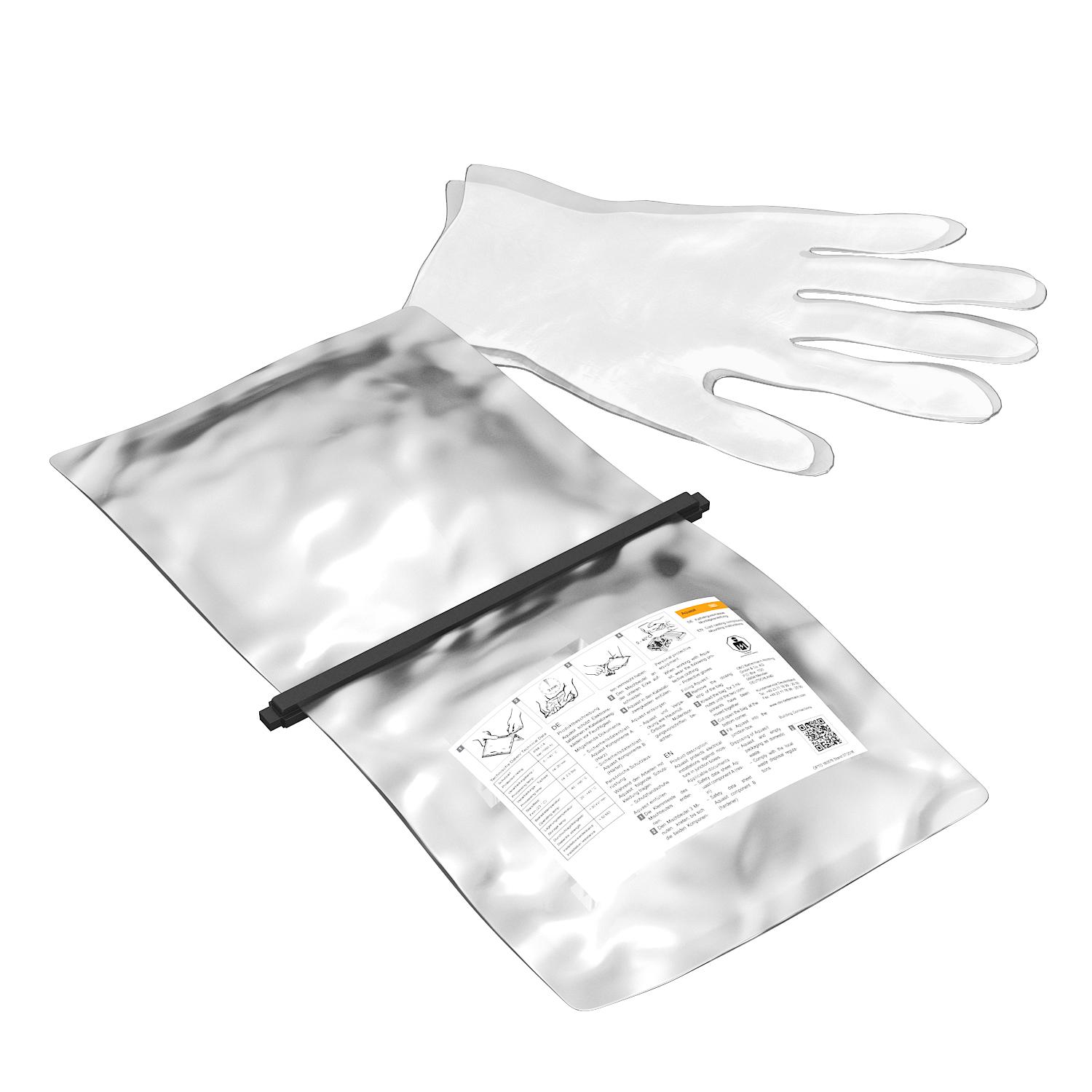

Aquasit cold casting compound, mixing bag
Item no. 2363030 | EAN 4012197333362
- Product description
-
Product descriptionTwo-component casting compound Aquasit in an aluminium bag, for filling junction boxes in outdoor areas exposed to high levels of and long-lasting dampness. Also applicable for use against mechanical shock.
Processing time of 20 minutes after opening and mixing. Can be stored unopened at 0 to 40 °C up to 24 months from date of production. Practical experience, tests and approvals only apply in conjunction with OBO junction boxes.
Protection rating with appropriate junction box: IP68
Rated voltage: 400 V
Penetration resistance: >25 kV/mm to VDE 0291 Part 2
Operating temperature: –40 to +80 °C
Processing temperature: 5 to +40 °C
Halogen-free, silicon-free, isocyanate-free
Environmentally friendly and without the need to be labelled
-
- Technical data
-
Technical data
Contents 250 ml Dimension 250 ml For Ex zone Without For Ex zone dust Without For Ex zone gas Without Height 24 mm Length 177 mm Material cable resin Two-component polyurethane resin Width 147 mm - All types
- Downloads
-
Data sheet KVMM 250 / 2363030 , 0.19MB , pdfSafety data sheet KVMM 250 / 2363030 , 0.06MB , pdfEU declaration of conformity KVMM 250 / 2363030 , 0.15MB , pdfREACH Declaration of conformity KVMM 250 / 2363030 , 0.13MB , pdfRoHS Declaration of conformity KVMM 250 / 2363030 , 0.13MB , pdfMounting instructions Mounting instructions Aquasit , 2.90MB , pdf
