Angle profile WP40/65 A2
Item no. 6373062 | EAN 4012196199631
- Product description
-

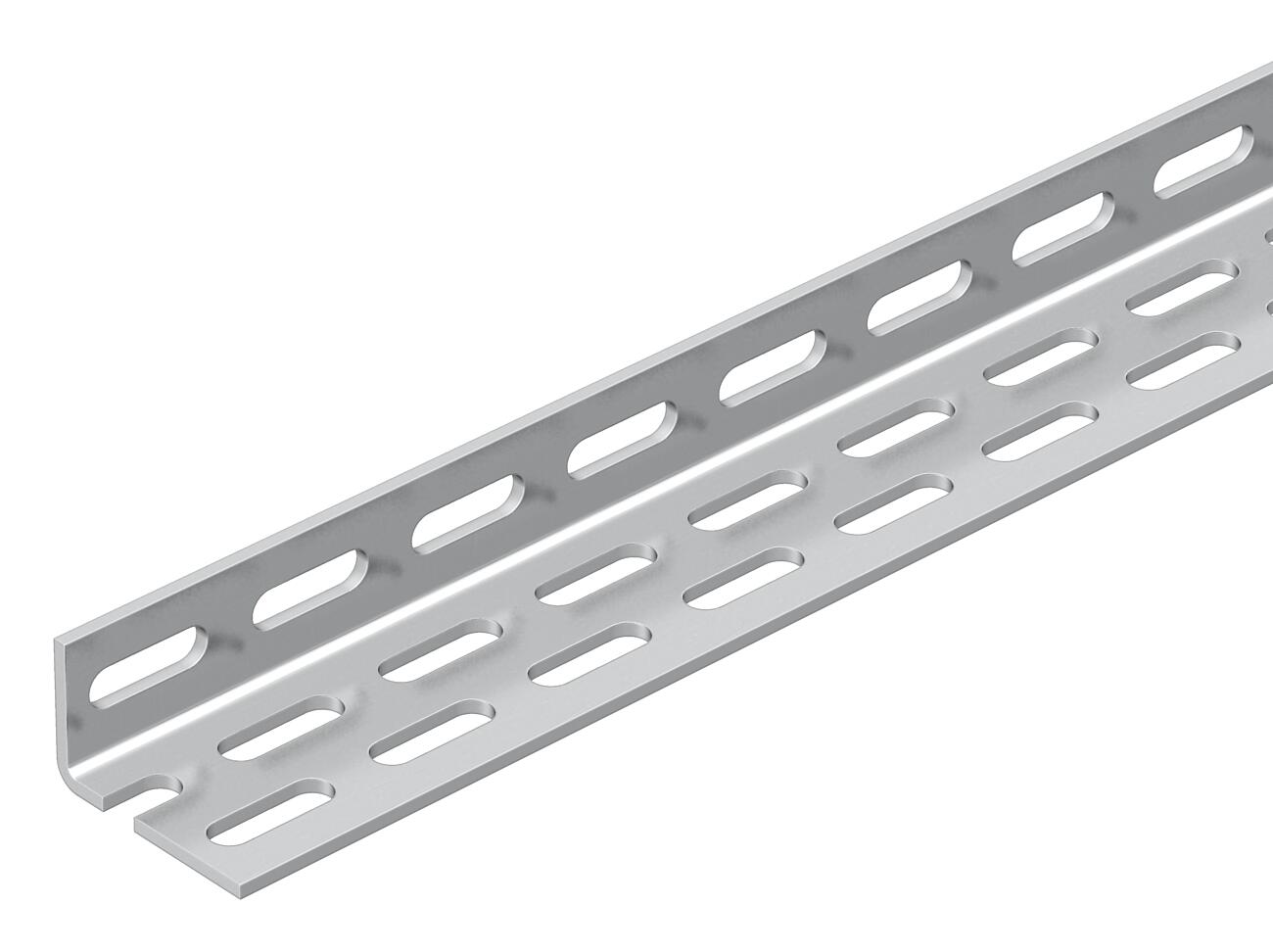

Product descriptionPerforated angle profile for creation of special support structures.
-
- Technical data
-
Technical data

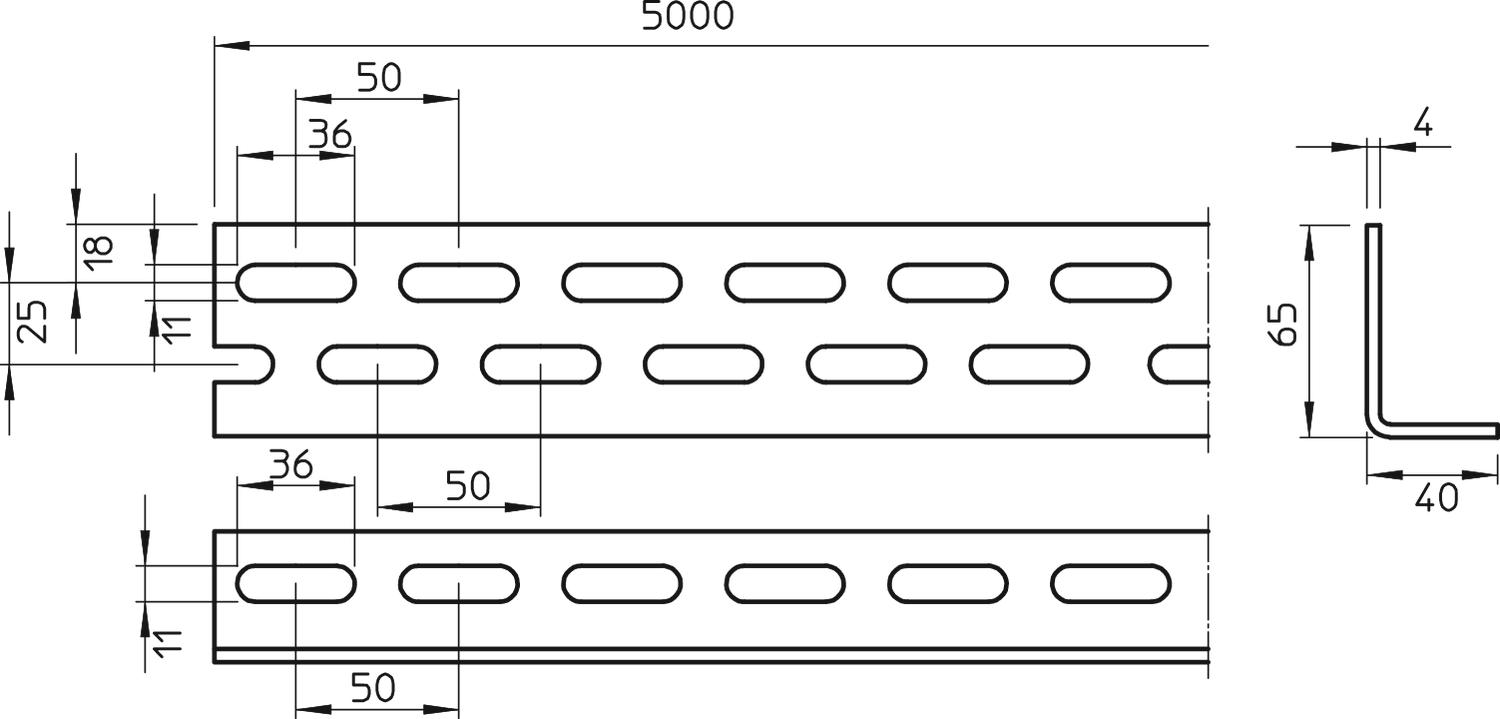

Breakable no CO2 Footprint (GWP) Cradle-to-Gate 14,7267 kg CO2e / 1 Meter Colour stainless steel Dimension 40x65x5000 Height 40 mm Length 5000 mm Maintain electrical functions no Material Stainless steel Mounting perforation in base yes Plate thickness 4 mm Profile shape L profile Side perforation yes Surface Bright, treated Type of perforation 2 sides perforated Version for Single profile Width 65 mm With toothing no - All types
- Downloads
-
Data sheet WP 40 65 5000 A2 / 6373062 , 0.18MB , pdfEU declaration of conformity WP 40 65 5000 A2 / 6373062 , 0.11MB , pdfREACH Declaration of conformity WP 40 65 5000 A2 / 6373062 , 0.12MB , pdfRoHS Declaration of conformity WP 40 65 5000 A2 / 6373062 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
