Angle profile WP40/50
Item no. 6373200 | EAN 4012196169160
- Product description
-

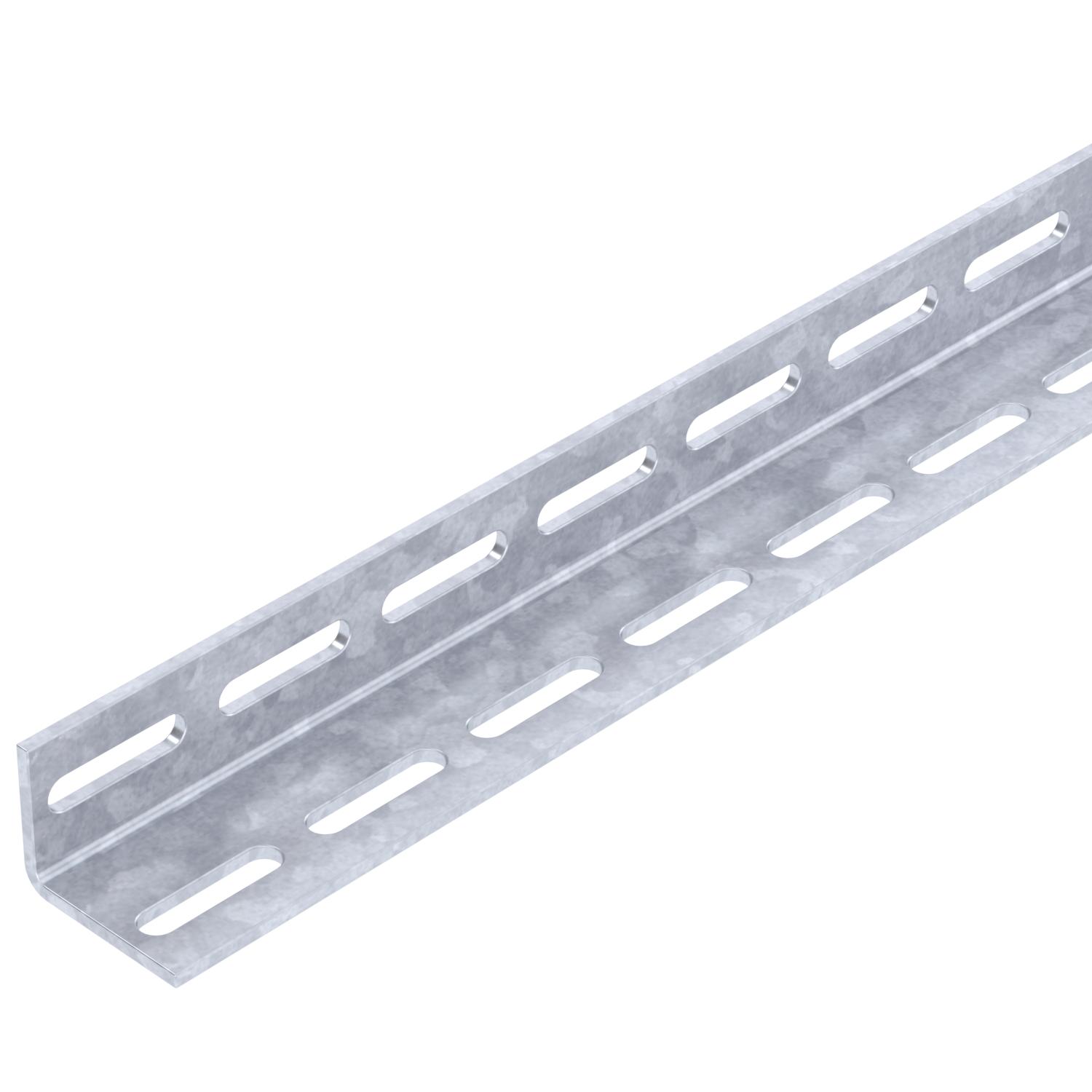

Product descriptionPerforated angle profile for the creation of special support structures.
-
- Technical data
-
Technical data

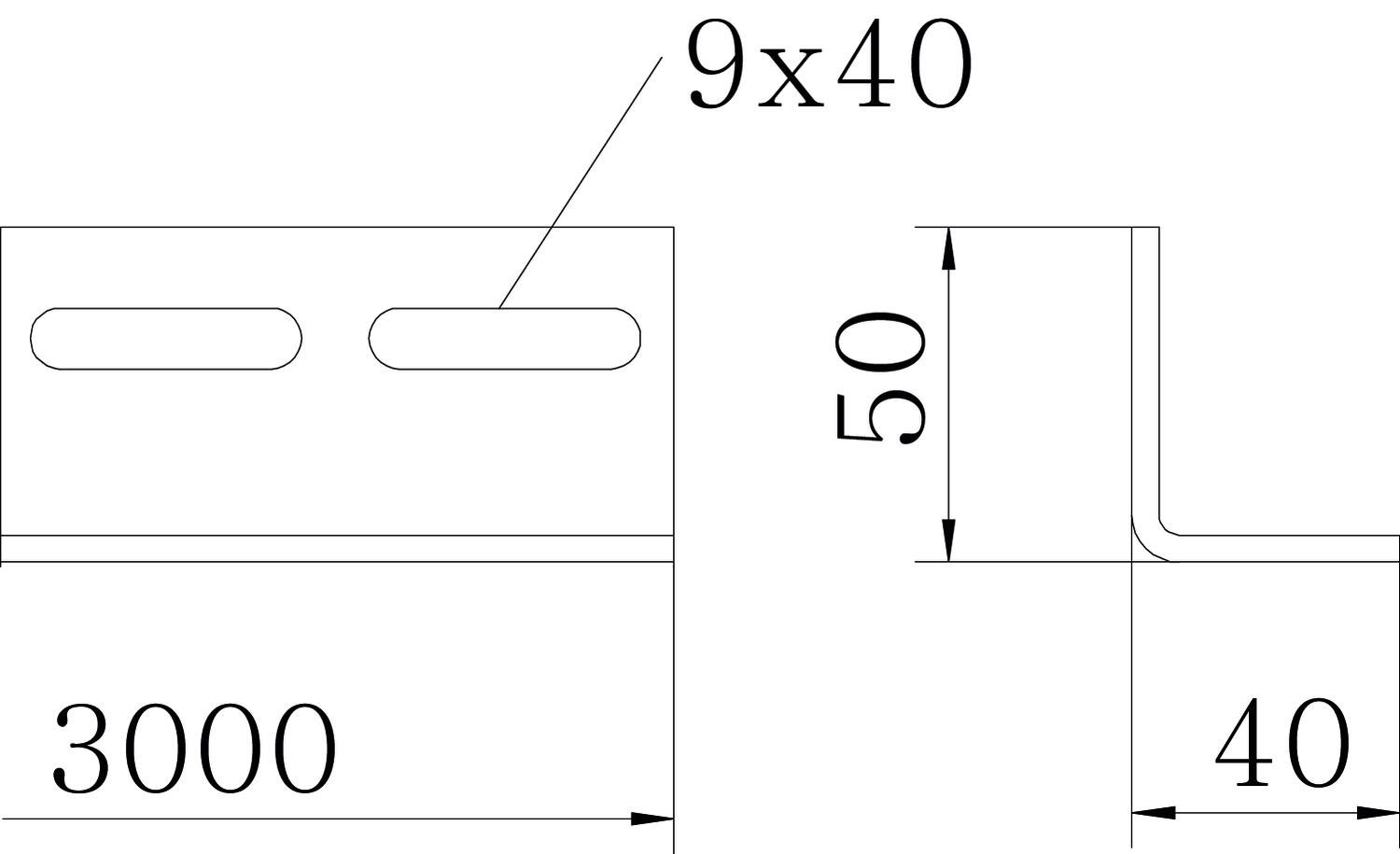

Breakable no CO2 Footprint (GWP) Cradle-to-Gate 5,9935 kg CO2e / 1 Meter Colour zinc Dimension 40x50x3000 Height 40 mm Length 3000 mm Maintain electrical functions no Material Steel Mounting perforation in base yes Plate thickness 4 mm Profile shape L profile Side perforation yes Surface Hot-dip galvanised Type of perforation 2 sides perforated Version for Single profile Width 50 mm With toothing no - All types
- Downloads
-
Data sheet WP 40 50 3000 FT / 6373200 , 0.19MB , pdfEU declaration of conformity WP 40 50 3000 FT / 6373200 , 0.11MB , pdfREACH Declaration of conformity WP 40 50 3000 FT / 6373200 , 0.12MB , pdfRoHS Declaration of conformity WP 40 50 3000 FT / 6373200 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
