Aluminium wall cover, open, 90210 278 | 124 | Pure white; RAL 9010
morepic-1 morepic-2 video-1

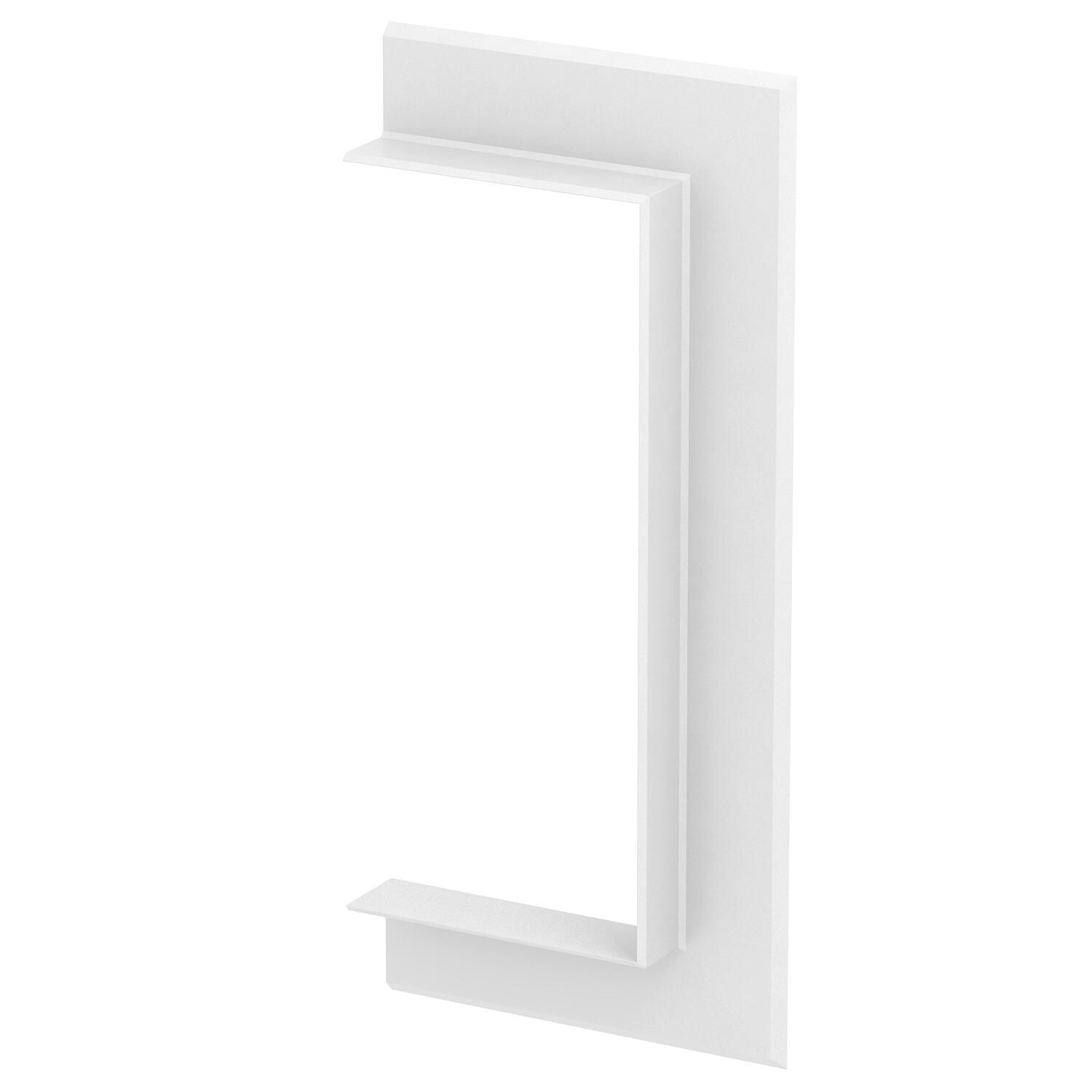

Aluminium wall cover, open, 90210

Item no. 6279010 | EAN 4012195667315

6279010 / G-AWAO90210RW
278 mm
124 mm
Pure white; RAL 9010
Product description
Product description
Wall cover, open, to close wall penetrations during wall mounting.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 3,2439 kg CO2e / 1 Piece
Colour Pure white; RAL 9010

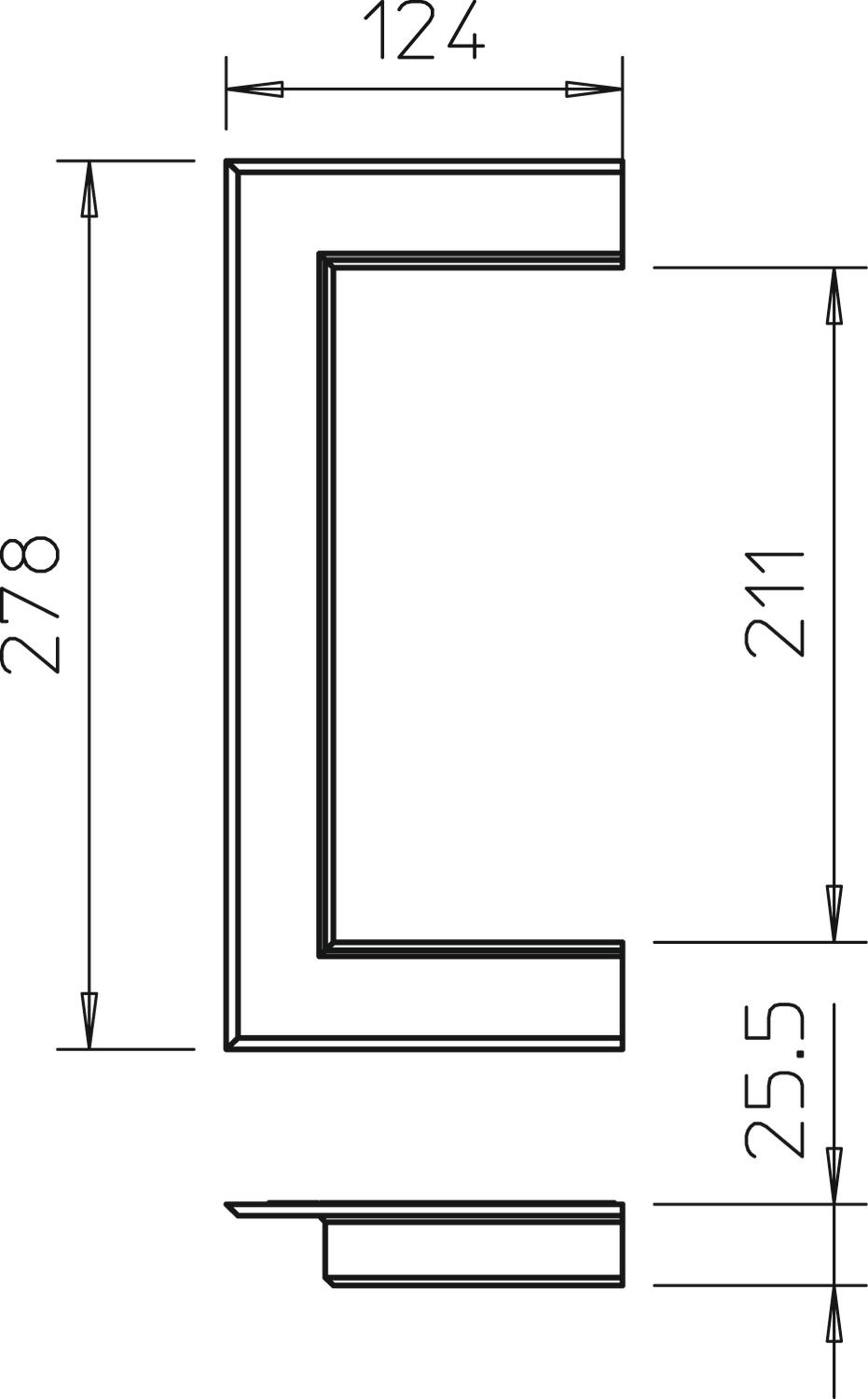

Dimension 124x278x25
Halogen-free yes
Height 124 mm
Length 25 mm
Material Aluminium
Mounting type of the trunking Wall
Trunking depth 90 mm
Version for Universal
Width 278 mm
All types

All types

Types Width Height Colour Item no.
G-AWAO90210RW 278 mm 124 mm Pure white; RAL 9010 6279010
Downloads

Download

Download

EU declaration of conformity G-AWAO90210RW / 6279010 , 0.10MB , pdf
Download
UK Declaration of Conformity G-AWAO90210RW / 6279010 , 0.09MB , pdf
Download

No invitation to tender text is available for this product.
