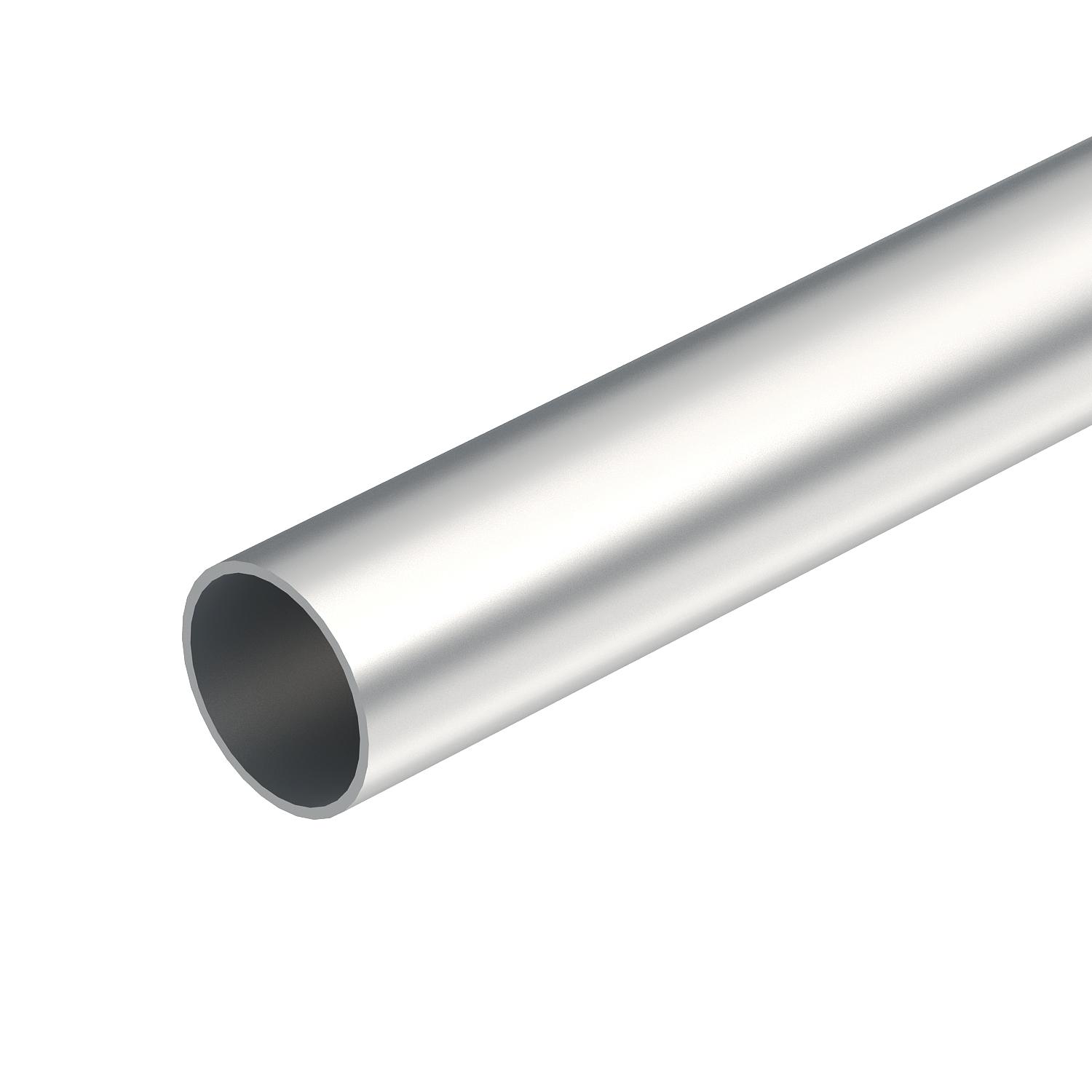

Aluminium pipe, without thread

Item no. / Types

Dimension D

Dimension L	3000 mm

Dimension t

Product description

Product description

Electrical installation pipe without threaded ends to EN 61386-1 for mechanical protection of cables. With burr-free inner wall.

Technical data

Brushed surface	no
Cavity wall installation	yes
Classification code	44561
CO2 Footprint (GWP) Cradle-to-Gate	1,8975 kg CO₂e / 1 Meter
Concealed	no
Concrete installation	no
Connection 1, installation pipe	Pipe end
Connection 2, installation pipe	Pipe end

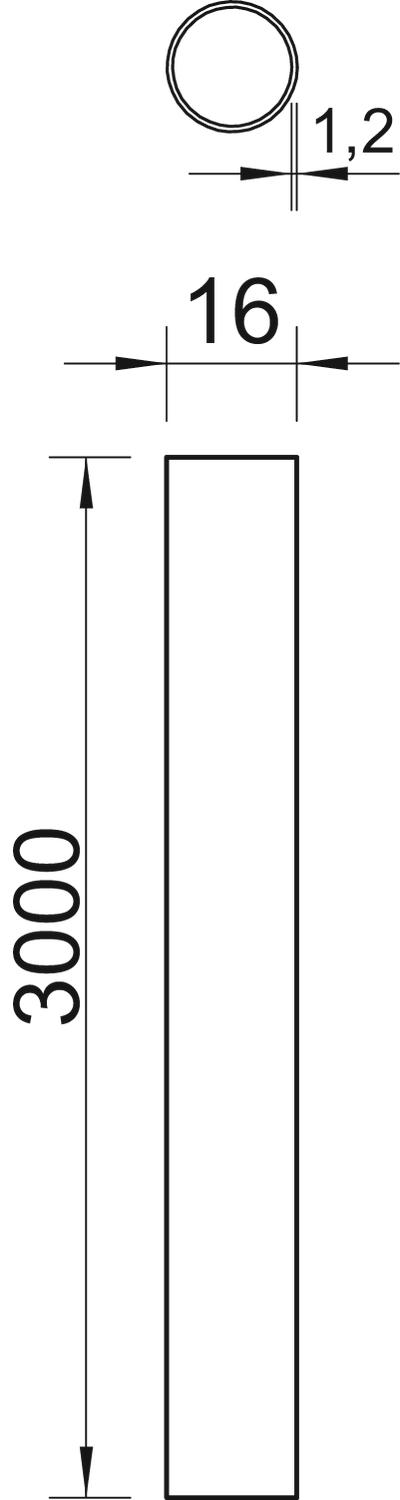

Dimension	Ø16, 3000mm
Dimension D	16 mm
Dimension L	3000 mm
Dimension m (mm)	M16
Dimension t	1,2 mm
Installation in the earth	no

Installation on wood	yes
Installation outdoors	yes
Length	3000 mm
Machines and system installation	yes
Material	Aluminium
Permitted temperature range, max.	250 °C
Permitted temperature range, min.	-45 °C
Pipe version	Rigid without thread
Polished surface	no
Surface-mounted	yes
Underfloor installation (bitumen, hot asphalt)	yes
Underfloor installation (screed)	yes
With sleeve	no

All types

All types

Types	Dimension D	Dimension L	Dimension t	Item no.
S16W ALU	16 mm	3000 mm	1.2 mm	2046002
S20W ALU	20 mm	3000 mm	1.2 mm	2046003
S25W ALU	25 mm	3000 mm	1.3 mm	2046004
S32W ALU	32 mm	3000 mm	1.3 mm	2046005
S40W ALU	40 mm	3000 mm	1.4 mm	2046006
S50W ALU	50 mm	3000 mm	1.4 mm	2046007
S63W ALU	63 mm	3000 mm	1.7 mm	2046008

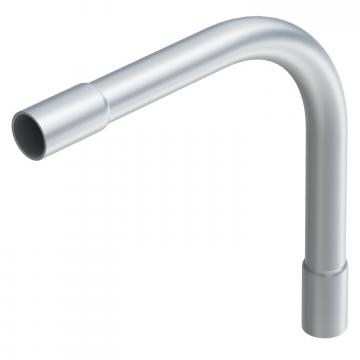

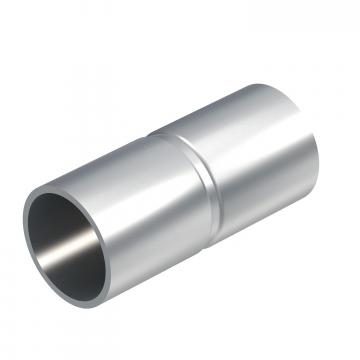

Accessories
