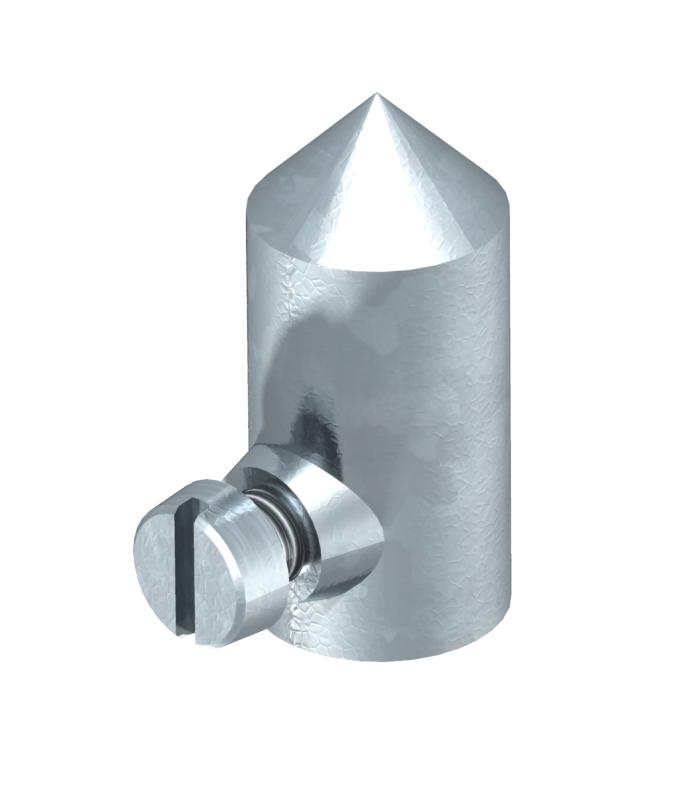

Air-termination tip
Item no. 5405068 | EAN 4012195428657
- Product description
-
Product description• To be used for Rd 8−10 (corrosion protection)
• With cylinder bolt M6 x 10
• Made of die-cast zinc, bolts made of hot-galvanised steel
- Technical data
-
Technical data

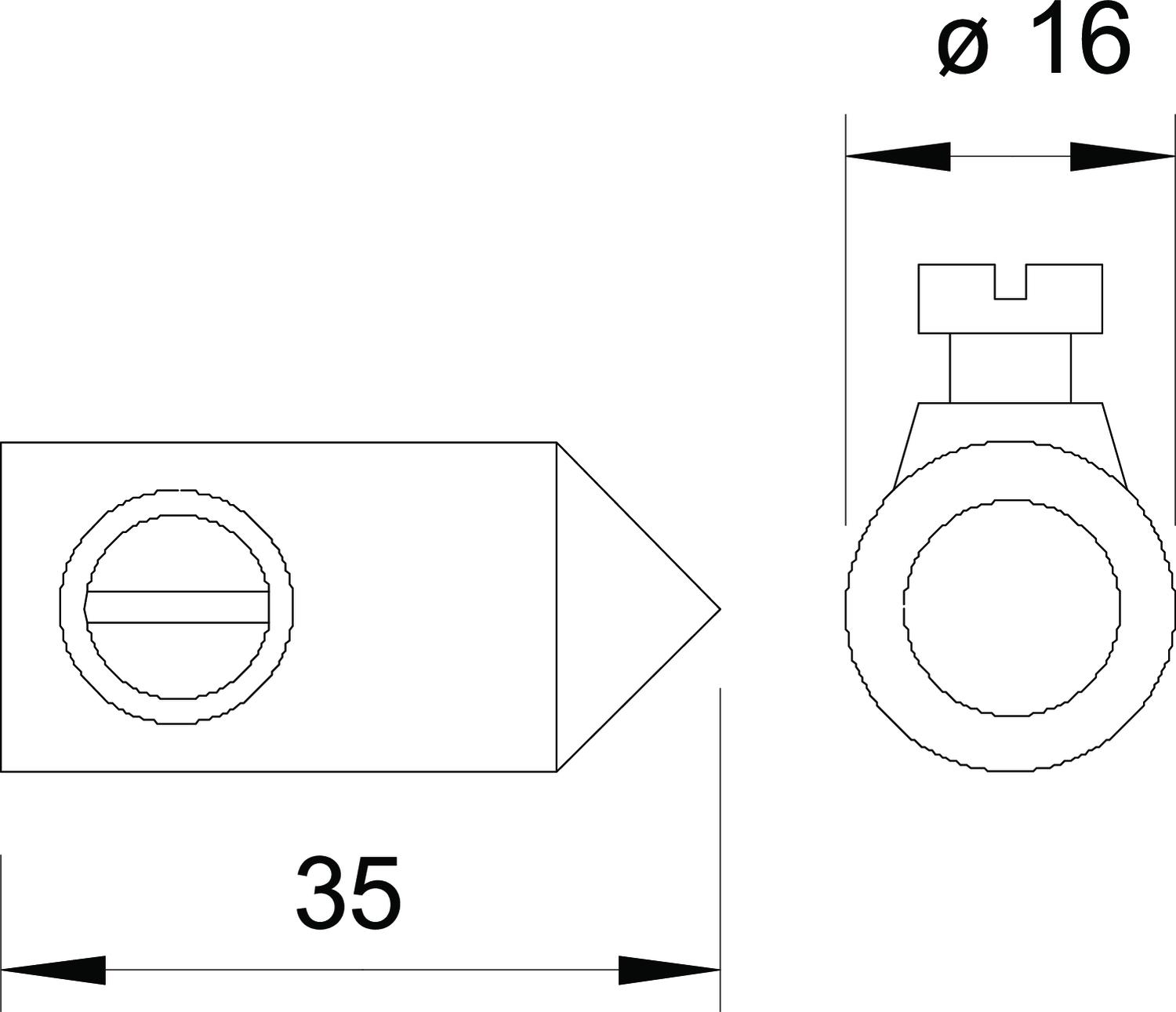

CO2 Footprint (GWP) Cradle-to-Gate 0,1305 kg CO2e / 1 Piece Diameter 16 mm Dimension 35mm Fit Rd 8-10 mm Length 35 mm Material Die-cast zinc Surface Electrogalvanized Version for Air-termination tip - All types
- Downloads
-
Data sheet 120 A / 5405068 , 0.14MB , pdfEU declaration of conformity 120 A / 5405068 , 0.06MB , pdfREACH Declaration of conformity 120 A / 5405068 , 0.12MB , pdfRoHS Declaration of conformity 120 A / 5405068 , 0.12MB , pdf
