Air-termination rod set 2 m
Item no. 5403354 | EAN 4012197450533
- Product description
-
Product description• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• From a free length of > 2.5 m an additional fastening such as, for example, an insulated spacer is recommended.

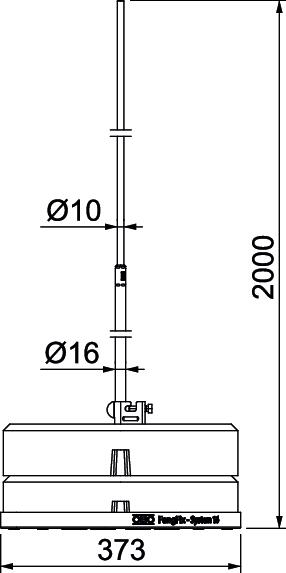

• The last metre of the air-termination rod tapered from Ø 16 mm to Ø 10 mm, material: ALMgSi

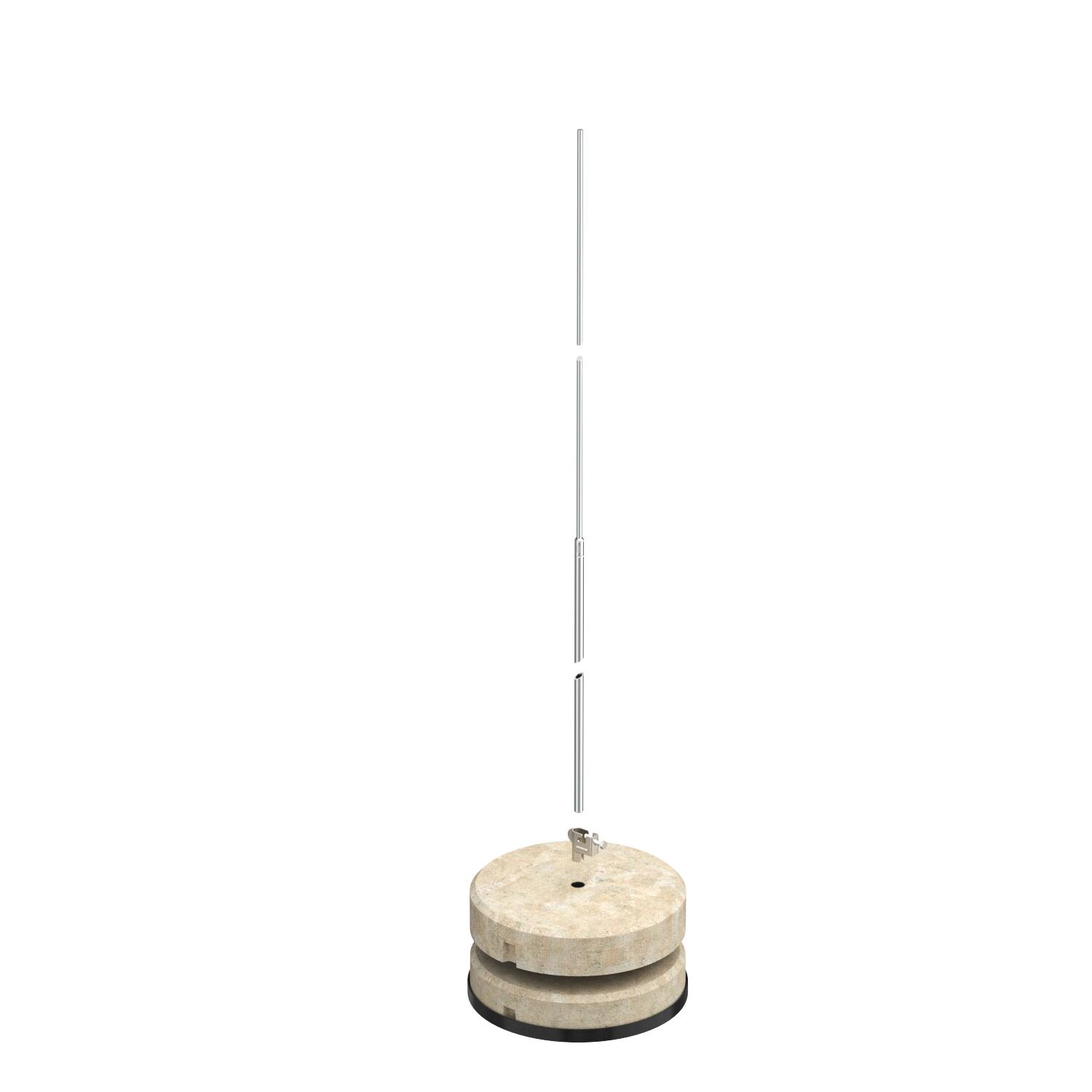

• Set consists of air-termination rod, FanFix stand system 16 kg, and an additional concrete stone 16 kg for stacking
- Technical data
-
- All types
- Downloads
-
Data sheet F-FIX-SET 2000 / 5403354 , 0.13MB , pdf
