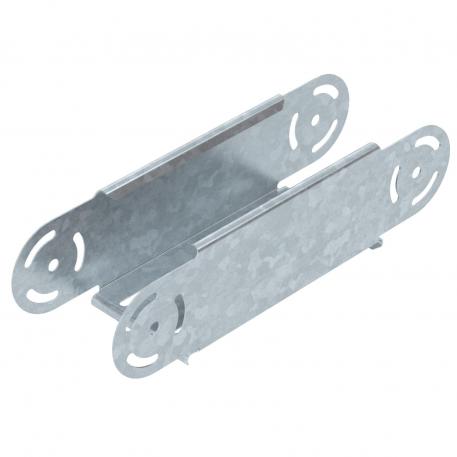

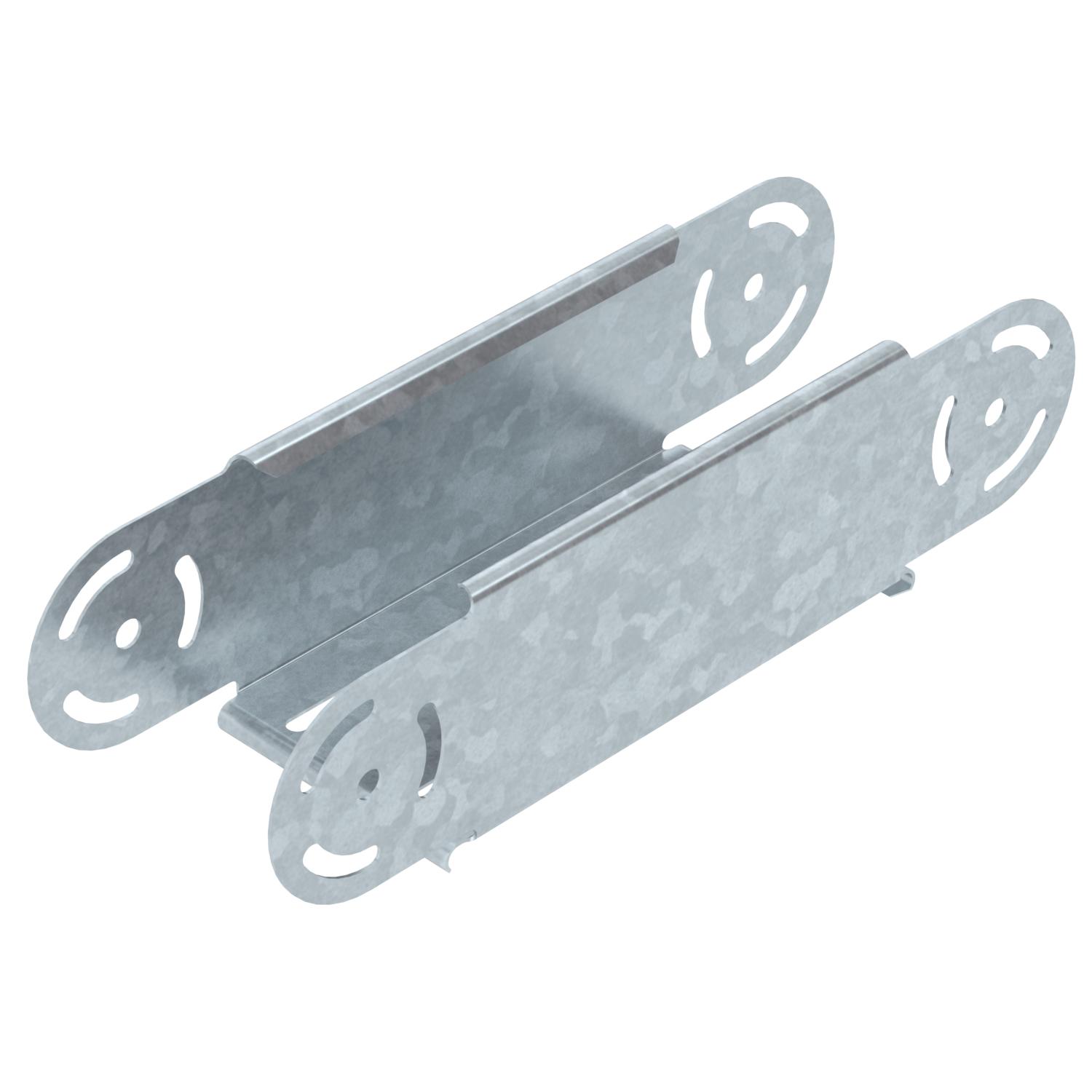

Adjustable bend element, vertical 85 FT
Item no. 7076096 | EAN 4012196228430
- Product description
-
Product descriptionAdjustable vertical bend element, for all cable tray types with a side height of 85 mm.
-
- Technical data
-
Technical data

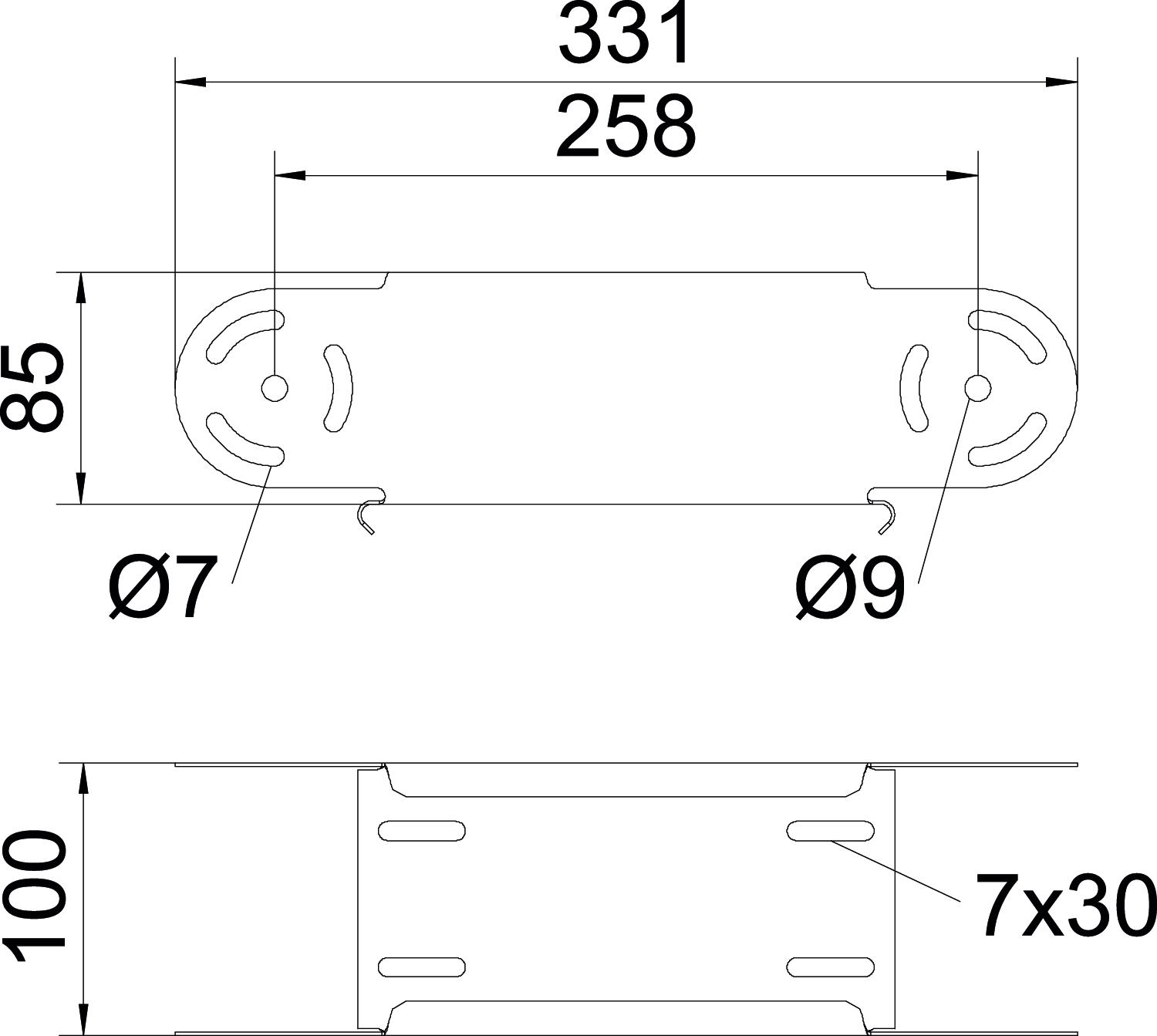

Bend (angle) Adjustable Change of direction Vertical, rising/falling Colour zinc Connector version Without connectors Dimension 85x100 Dimension B 100 mm Height 85 mm Height 3 in Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Hot-dip galvanised Type Adjustable bend element Type of connector, cable support system Screwed Wide-span version no Width 100 mm Width 4 in - All types
-
All types
-
Mounting accessories
Products Types Item no.

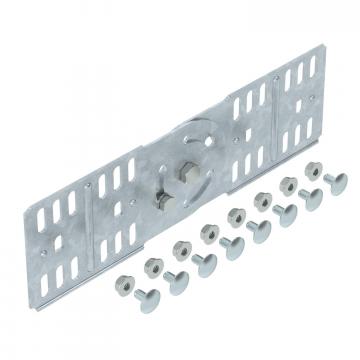

Adjustable connector FT
RGV 85 FT 7082320 - Downloads
-
Data sheet RGBEV 810 FT / 7076096 , 0.19MB , pdfEU declaration of conformity RGBEV 810 FT / 7076096 , 0.10MB , pdfUK Declaration of Conformity RGBEV 810 FT / 7076096 , 0.09MB , pdfREACH Declaration of conformity RGBEV 810 FT / 7076096 , 0.12MB , pdfRoHS Declaration of conformity RGBEV 810 FT / 7076096 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdf
