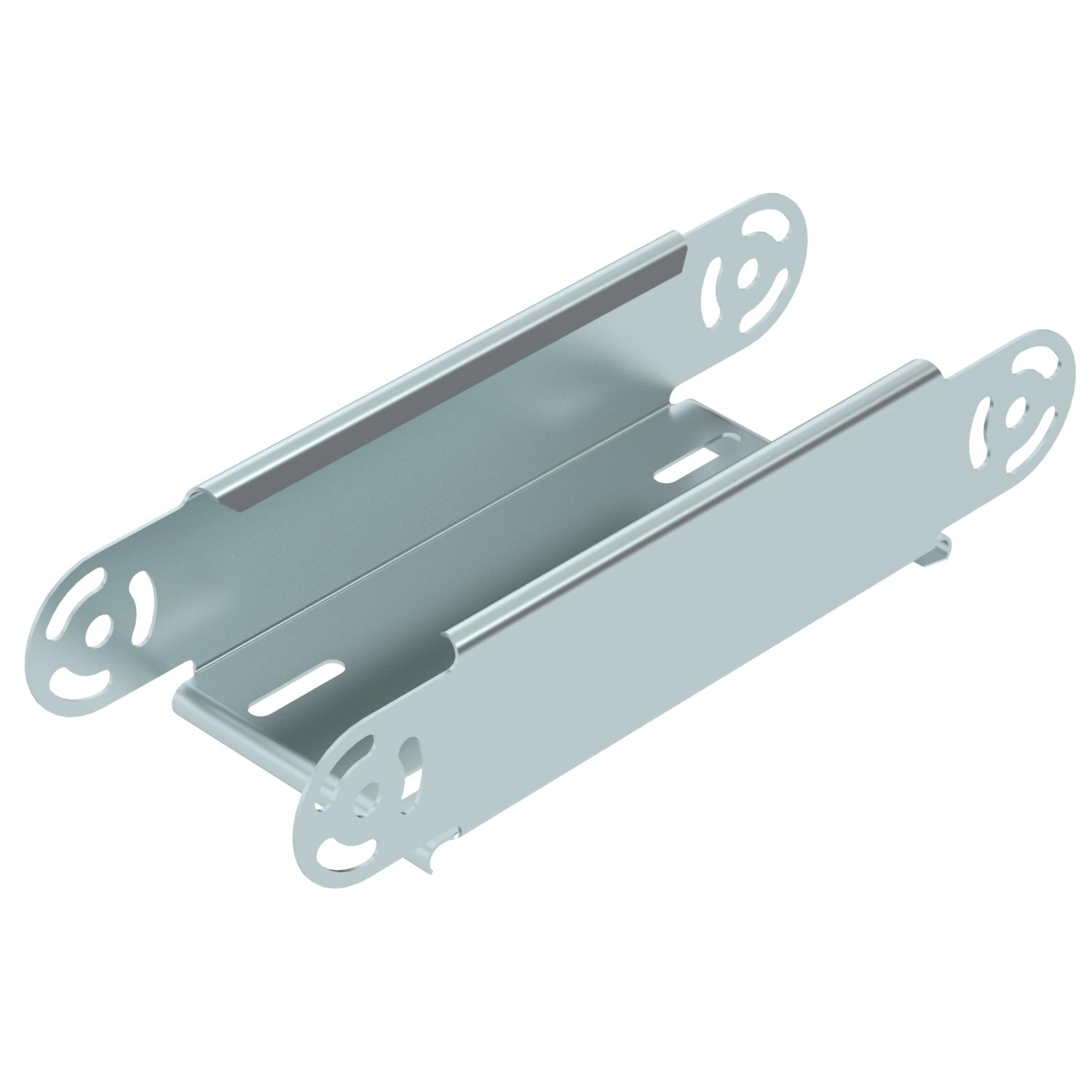

Adjustable bend element, vertical 60 FS
Item no. 7005326 | EAN 4012196216550
- Product description
-
Product descriptionAdjustable vertical bend element, for all cable tray types with a side height of 60 mm.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Vertical, rising/falling Colour zinc Connector version Without connectors Dimension 60x100 Dimension B 100 mm Height 60 mm Height 2 in Maintain electrical functions yes Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type Adjustable bend element Type of connector, cable support system Screwed Wide-span version no Width 100 mm Width 4 in - All types
-
All types
- Downloads
-
Data sheet RGBEV 610 FS / 7005326 , 0.18MB , pdfEU declaration of conformity RGBEV 610 FS / 7005326 , 0.10MB , pdfUK Declaration of Conformity RGBEV 610 FS / 7005326 , 0.09MB , pdfREACH Declaration of conformity RGBEV 610 FS / 7005326 , 0.12MB , pdfRoHS Declaration of conformity RGBEV 610 FS / 7005326 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdf
