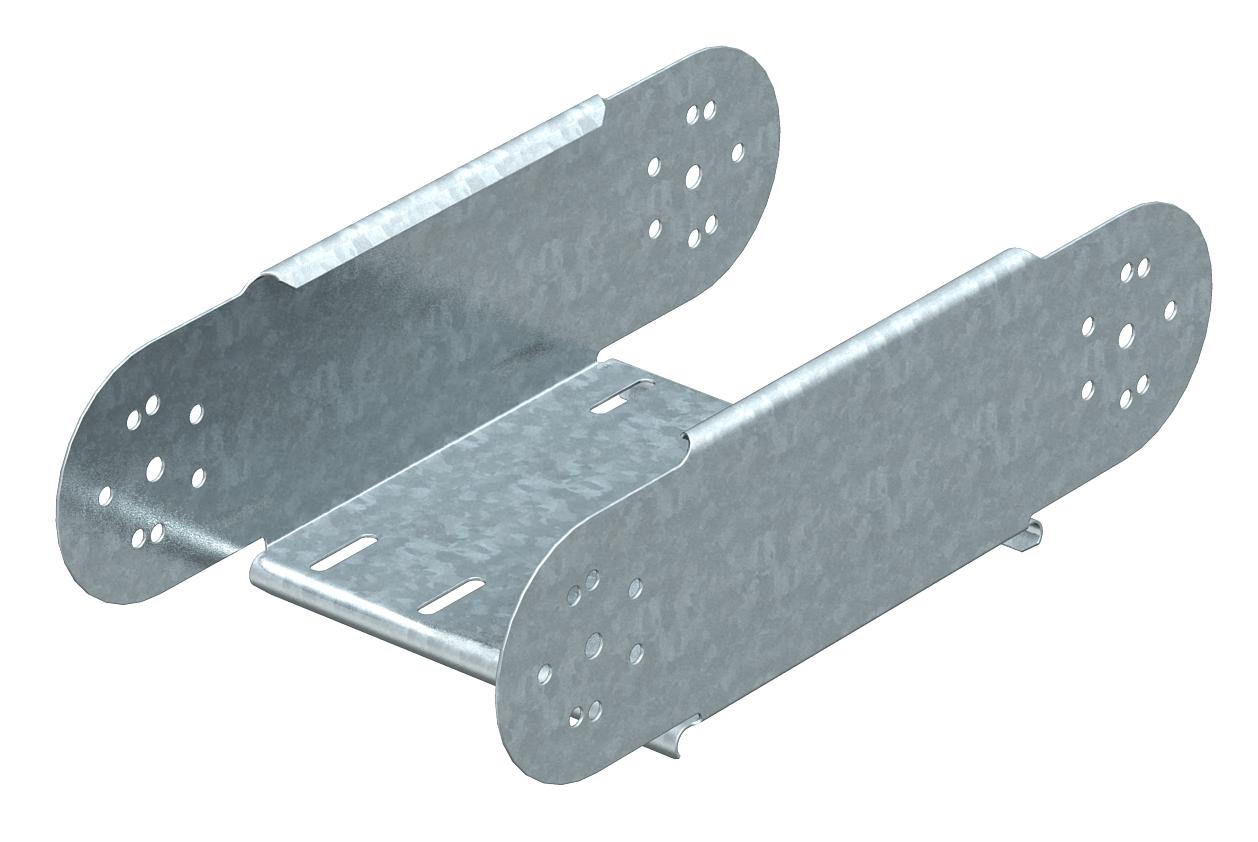

Adjustable bend element, vertical 110 FS
Item no. 7005628 | EAN 4012196217274
- Product description
-
Product descriptionAdjustable bend element, vertical, for all cable tray types with a side height of 110 mm.
-
- Technical data
-
Technical data

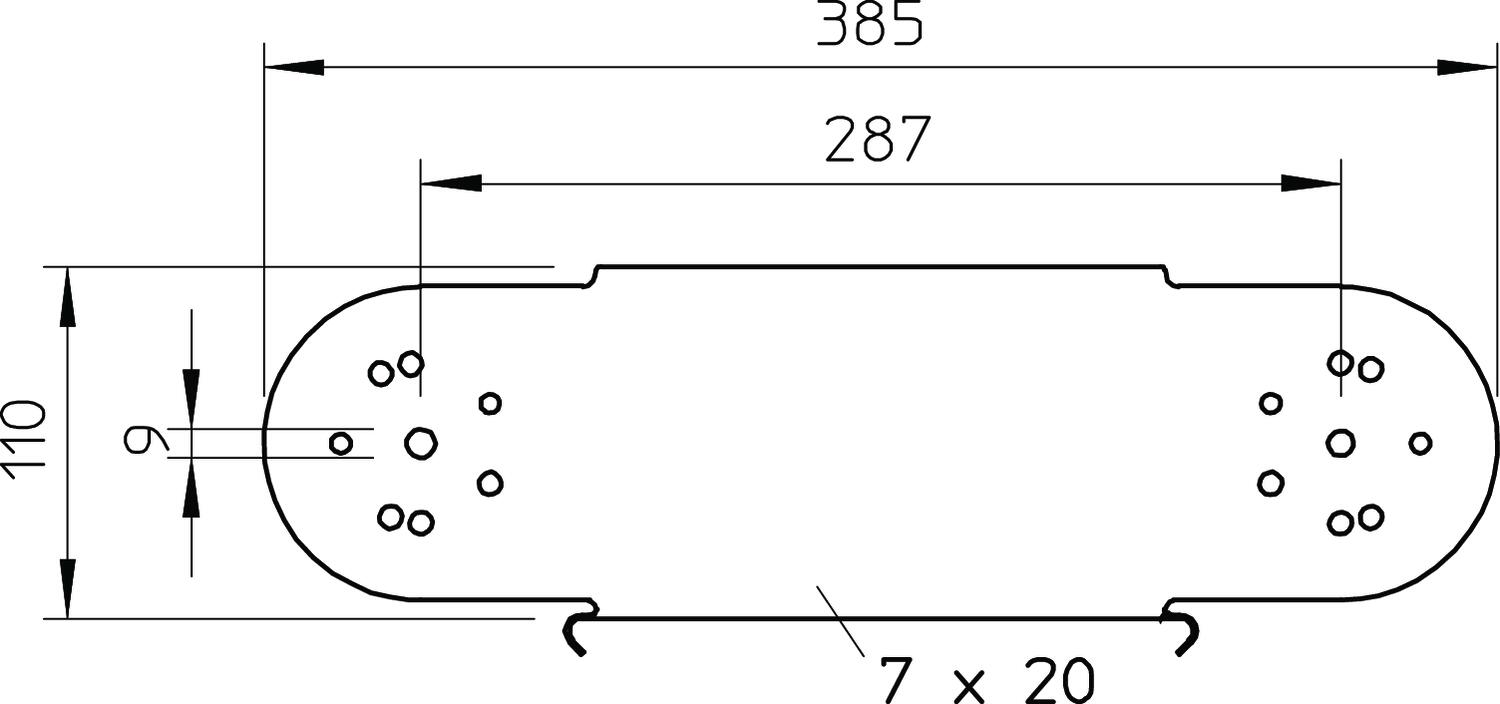

Bend (angle) Adjustable Change of direction Vertical, rising/falling Colour zinc Connector version Without connectors Dimension 110x100 Dimension B 100 mm Height 110 mm Height 4 in Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type Adjustable bend element Type of connector, cable support system Screwed Wide-span version no Width 100 mm Width 4 in - All types
-
All types
- Downloads
-
Data sheet RGBEV 110 FS / 7005628 , 0.19MB , pdfEU declaration of conformity RGBEV 110 FS / 7005628 , 0.10MB , pdfUK Declaration of Conformity RGBEV 110 FS / 7005628 , 0.09MB , pdfREACH Declaration of conformity RGBEV 110 FS / 7005628 , 0.12MB , pdfRoHS Declaration of conformity RGBEV 110 FS / 7005628 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdf
