Adhesive clip 4040, without nail | 7 | 12 | 2 | Light grey; RAL 7035

morepic-1

morepic-2

morepic-3

Adhesive clip 4040, without nail

Item no. 2214881 | EAN 4012195599838

Item no. / Types

for cable diameter, min.	7 mm

for cable diameter, max.	12 mm

For nail diameter	2

Colour	Light grey; RAL 7035

Product description

Product description

Adhesive clip, for clamping to the cable, suitable for steel nails 2 mm.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0022 kg CO₂e / 1 Piece
Colour	Light grey; RAL 7035
Dimension	7-12mm
Dimension B	8,3 mm
Dimension H	10,1 mm
Dimension L	19,1 mm
Double clip	no
for cable diameter, max.	12 mm
for cable diameter, min.	7 mm

For nail diameter	2
Halogen-free	yes
Hardened	no
Impact-resistant	yes
Material	Polypropylene
Pipe locking	no
Shape	Round (for round conductor)
With nail	no

All types

All types

Types	for cable diameter, min.	for cable diameter, max.	For nail diameter	Colour	Item no.
4040 SP	7 mm	12 mm	2	Light grey; RAL 7035	2214881
4040	7 mm	12 mm	2	Light grey; RAL 7035	2215314

Downloads

Data sheet 4040 SP / 2214881 , 0.17MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 4040 SP / 2214881 , 0.06MB , pdf

Download

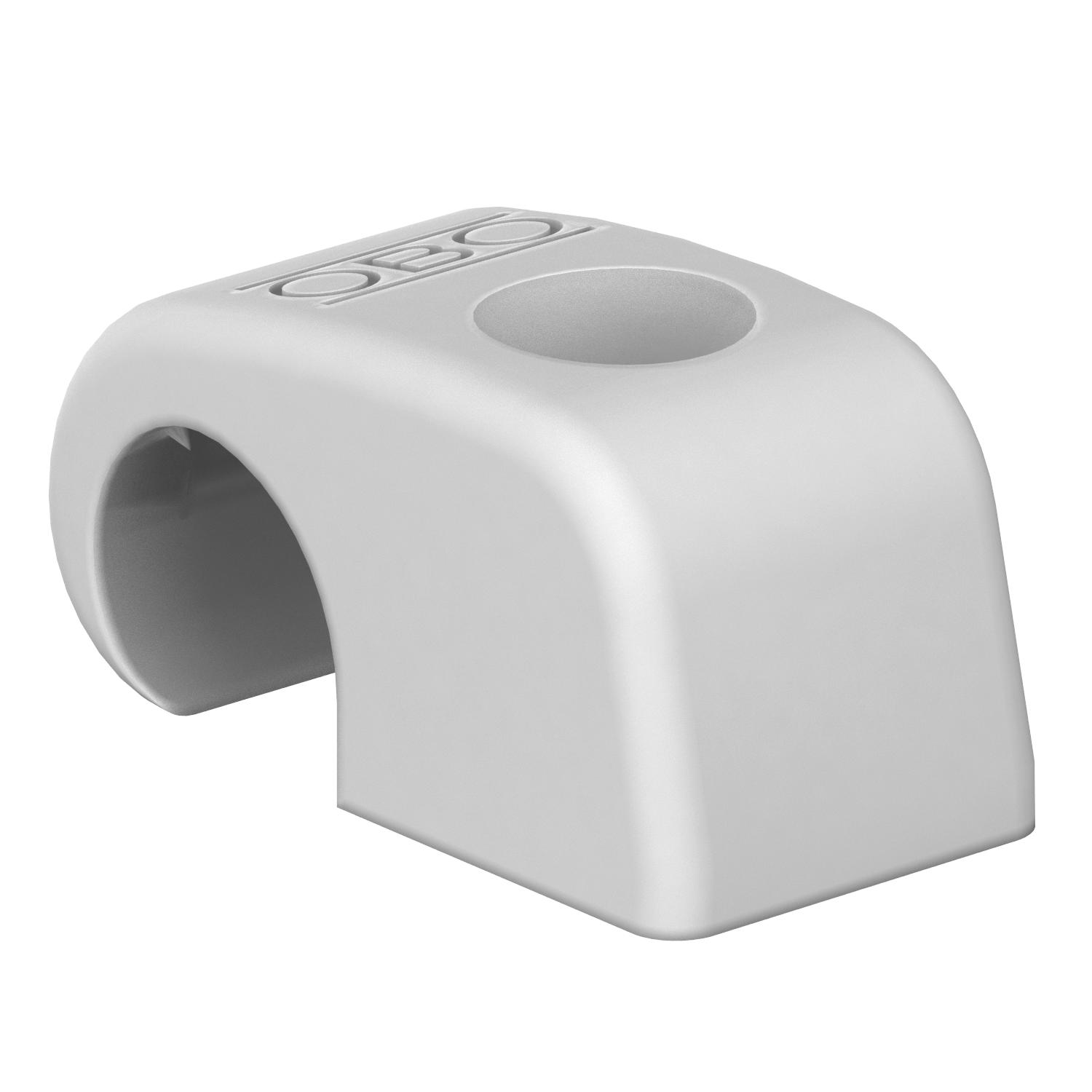

Product graphic 4040 SP / 2214881, 52.03 kB, jpg

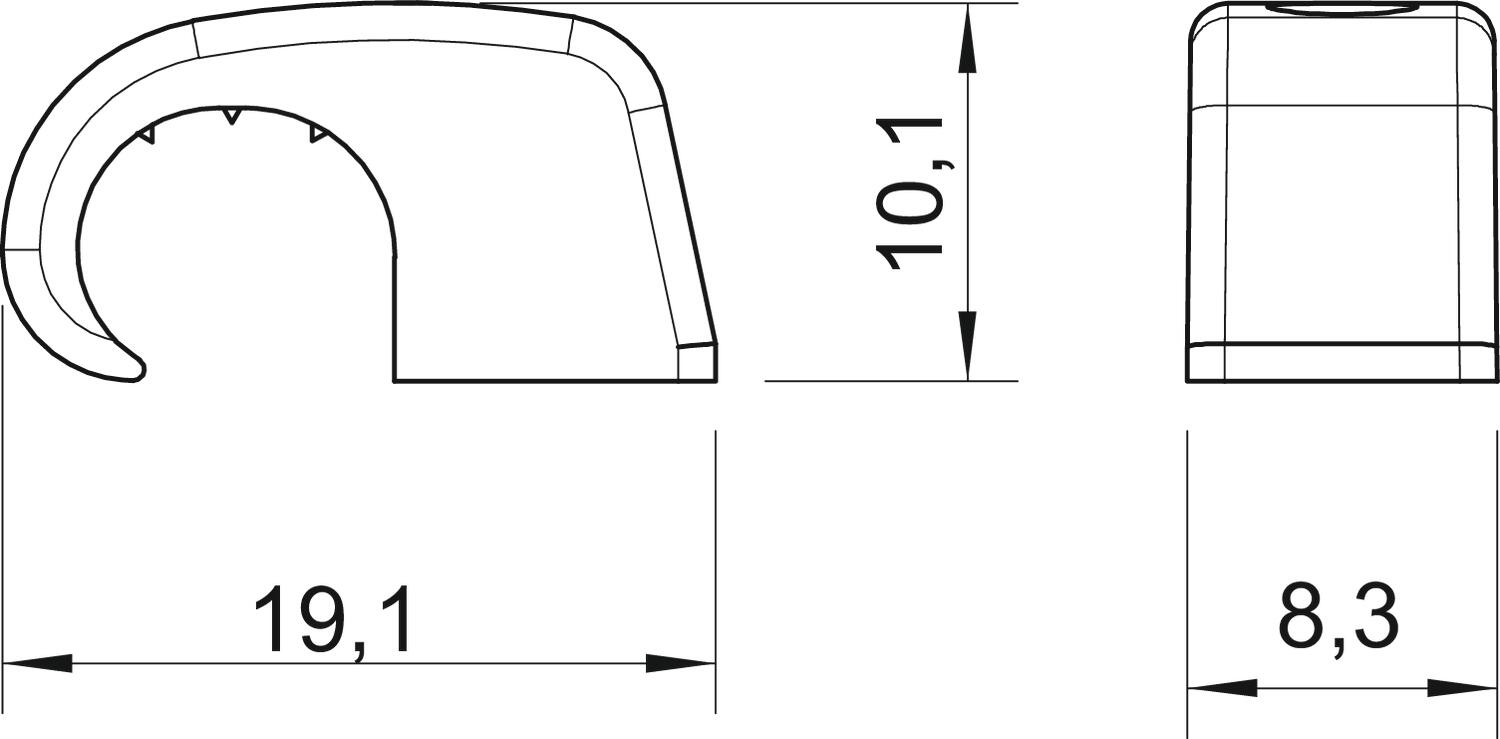

Scale drawing 4040 SP / 2214881, 48.31 kB, jpg

4040 SP / 2214881
