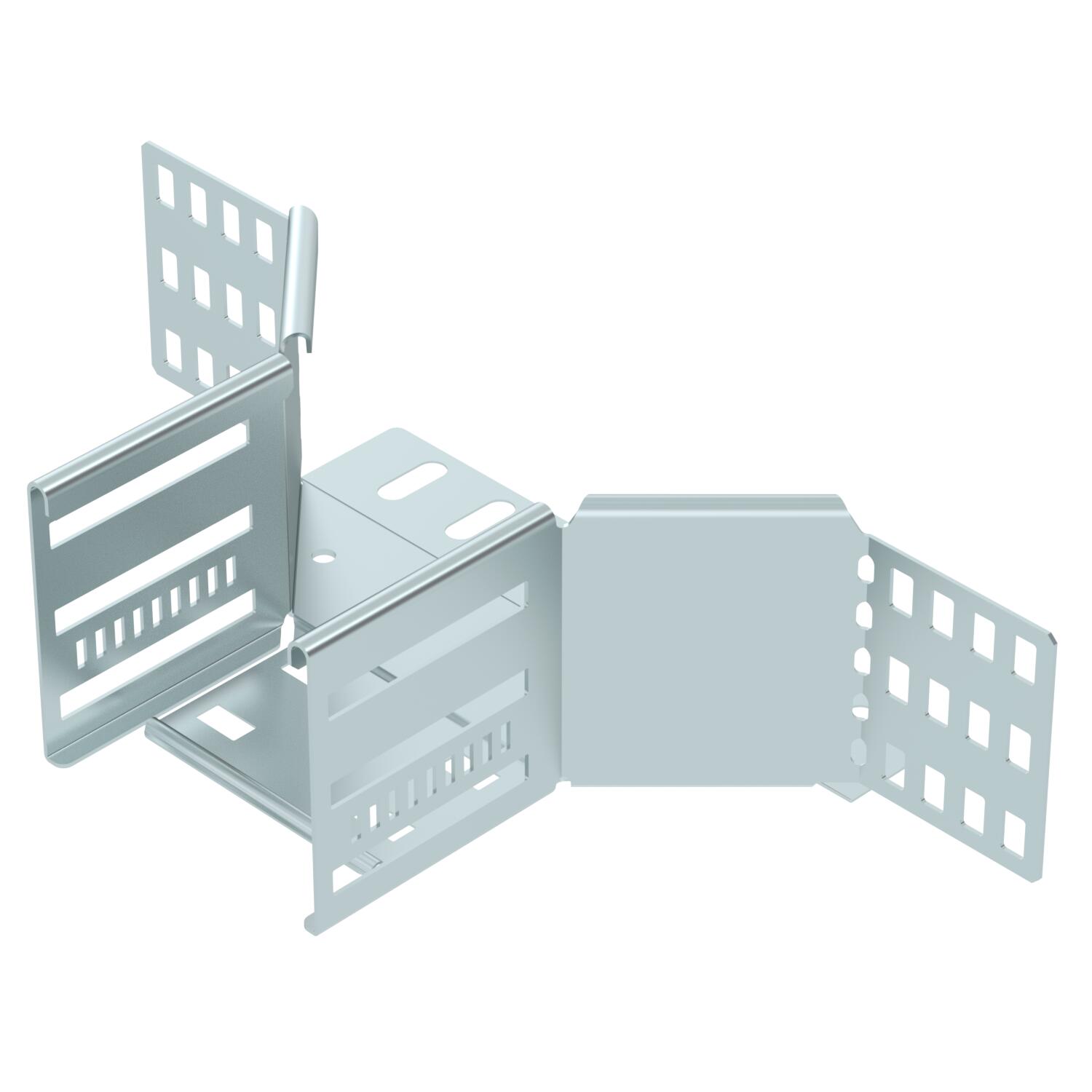

Add-on tee 85 FS

Item no. 6042131 | EAN 4012197337377

Item no. / Types

Width

Colour	zinc

Product description

Product description

Add-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 85 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,5919 kg CO2e / 1 Piece
Colour	zinc
Connector version	Integrated connector
Departing width	100 mm

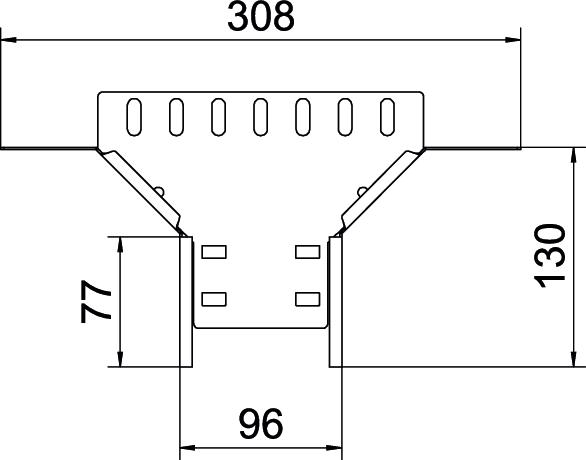

Dimension	85x100
Dimension B	100 mm
Height	85 mm
Maintain electrical functions	no
Material	Steel
Material thickness, floor plate	0,8 mm
NATO hole pattern	no

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	0,8 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	14 St.
Rustproof steel, pickled	no
Surface	Strip galvanized
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	100 mm

All types

All types

Types	Width	Colour	Item no.
RAA 810 FS	100 mm	zinc	6042131
RAA 820 FS	200 mm	zinc	6042133
RAA 830 FS	300 mm	zinc	6042135
RAA 840 FS	400 mm	zinc	6042137
RAA 850 FS	500 mm	zinc	6042141
RAA 860 FS	600 mm	zinc	6042143
