Add-on tee 35 FS
Item no. 7120450 | EAN 4012196687664
- Product description
-

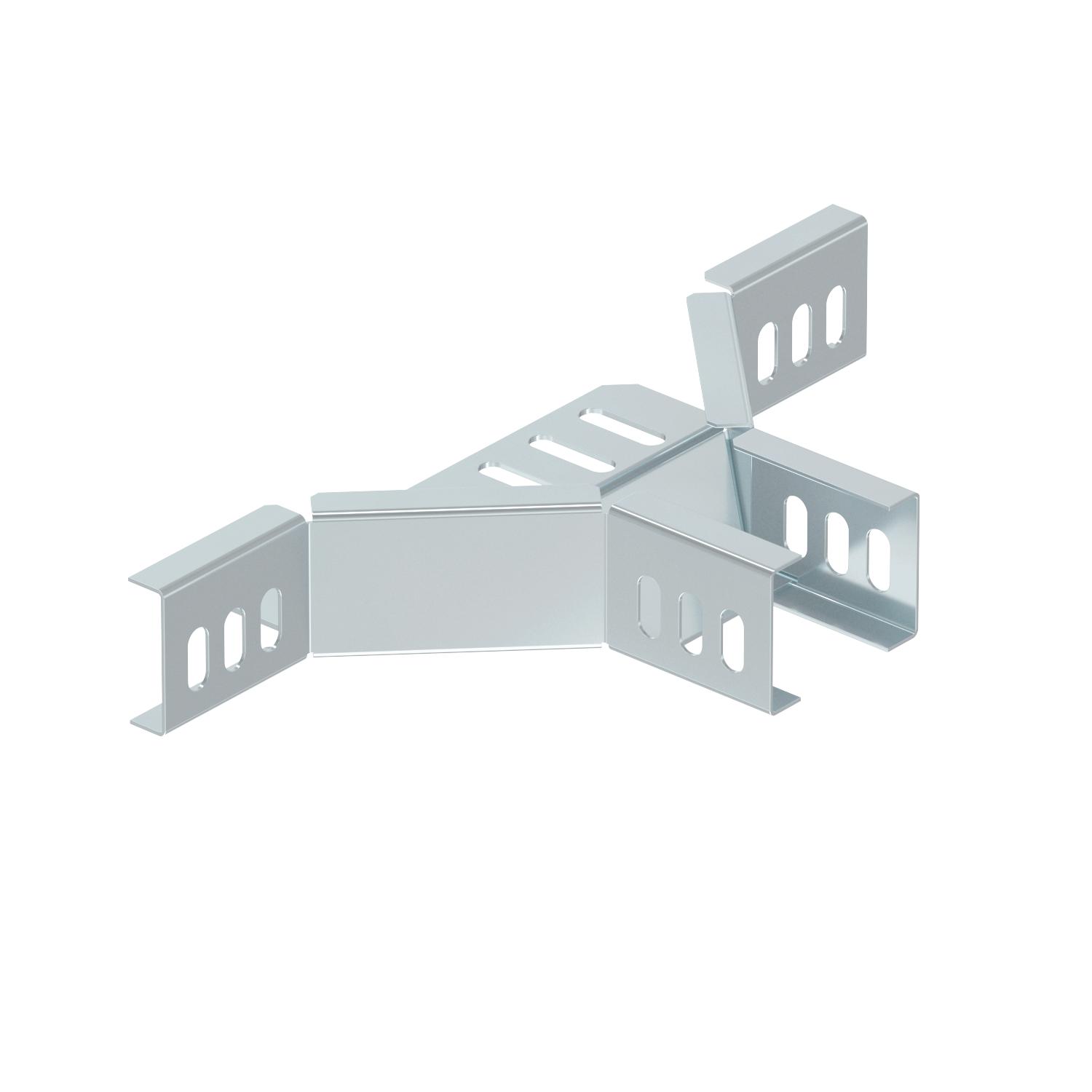

Product descriptionAdd-on tee for the horizontal routing of cable trays, type RKS 305.
-
- Technical data
-
Technical data

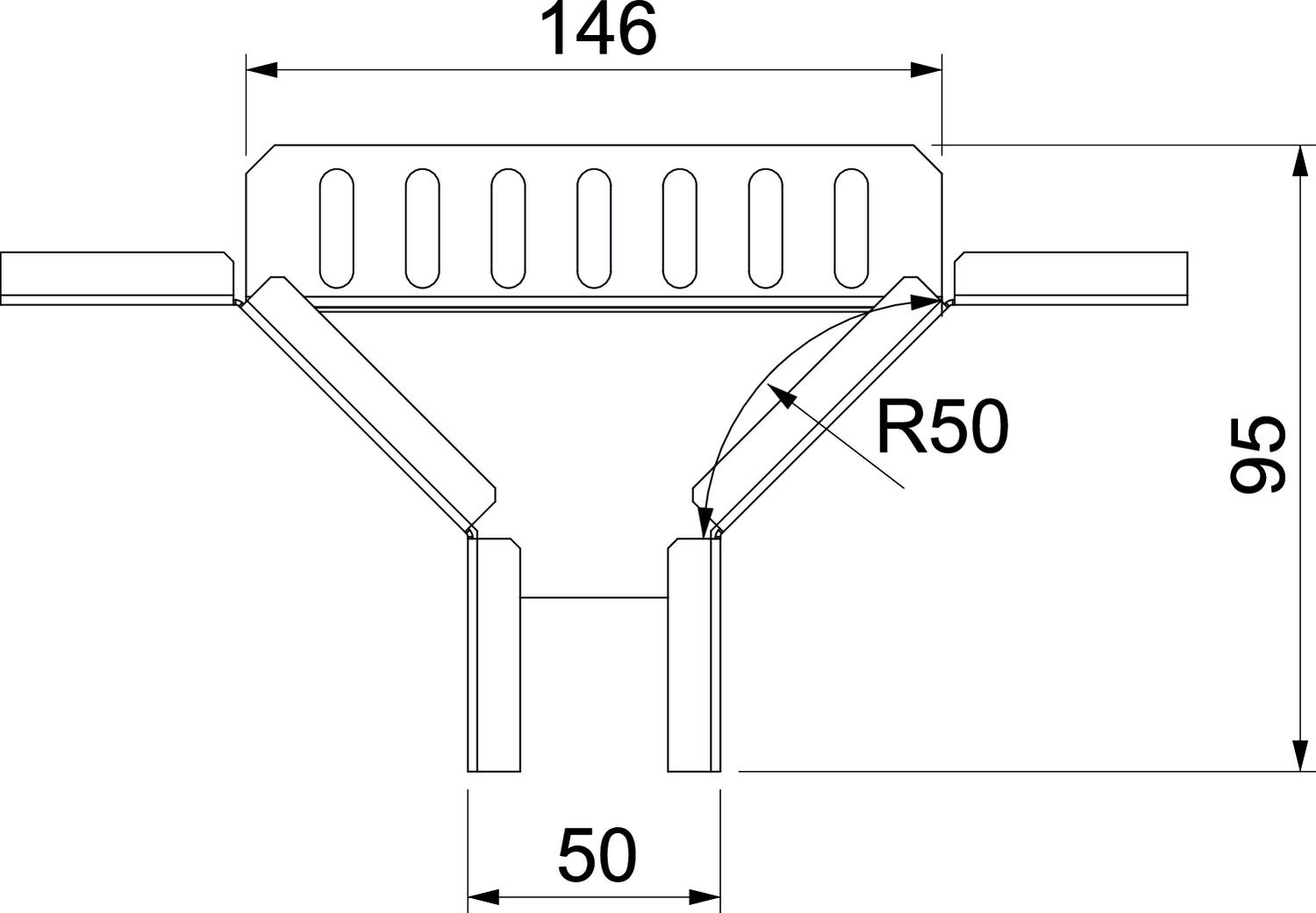

Bend (angle) 90° Change of direction Horizontal Colour zinc Connector version Supplied connectors Departing width 50 mm Dimension 35x50 Dimension B 50 mm Dimension R 50 mm Height 1 in Height 35 mm Maintain electrical functions no Material Steel NATO hole pattern no Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 50 mm - All types
- Downloads
-
Data sheet RAA 305 FS / 7120450 , 0.16MB , pdfEU declaration of conformity RAA 305 FS / 7120450 , 0.10MB , pdfREACH Declaration of conformity RAA 305 FS / 7120450 , 0.12MB , pdfRoHS Declaration of conformity RAA 305 FS / 7120450 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
