Add-on tee 35 FS
Item no. 6042101 | EAN 4012197337070
- Product description
-

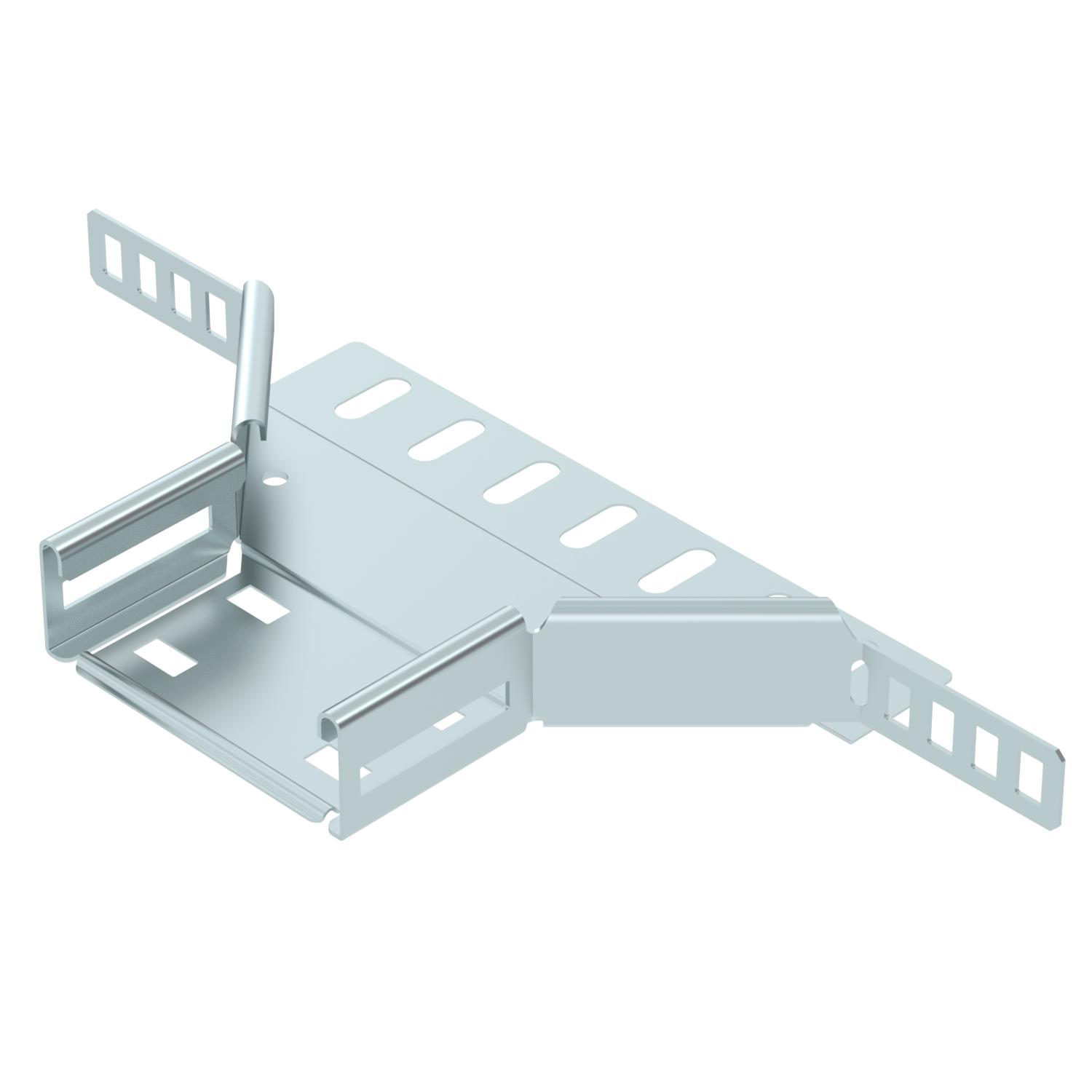

Product descriptionAdd-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

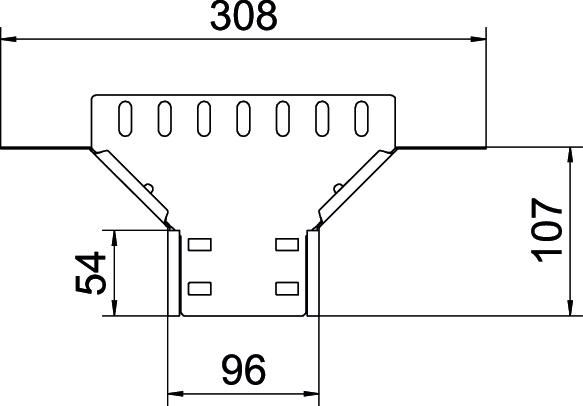

CO2 Footprint (GWP) Cradle-to-Gate 0,944 kg CO2e / 1 Piece Colour zinc Connector version Integrated connector Departing width 100 mm Dimension 35x100 Dimension B 100 mm Dimension R 50 mm Height 35 mm Maintain electrical functions no Material Steel Material thickness, floor plate 0,8 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 6 St. Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 100 mm - All types
-
System accessories
Products Types Item no.
Cover for add-on tee FS
RAAD 100 FS 6042401 - Downloads
-
Data sheet RAA 310 FS / 6042101 , 0.18MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RAA 310 FS / 6042101 , 0.10MB , pdfUK Declaration of Conformity RAA 310 FS / 6042101 , 0.09MB , pdfREACH Declaration of conformity RAA 310 FS / 6042101 , 0.12MB , pdfRoHS Declaration of conformity RAA 310 FS / 6042101 , 0.13MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
