Add-on tee 160 FT
Item no. 6098827 | EAN 4012196335770
- Product description
-

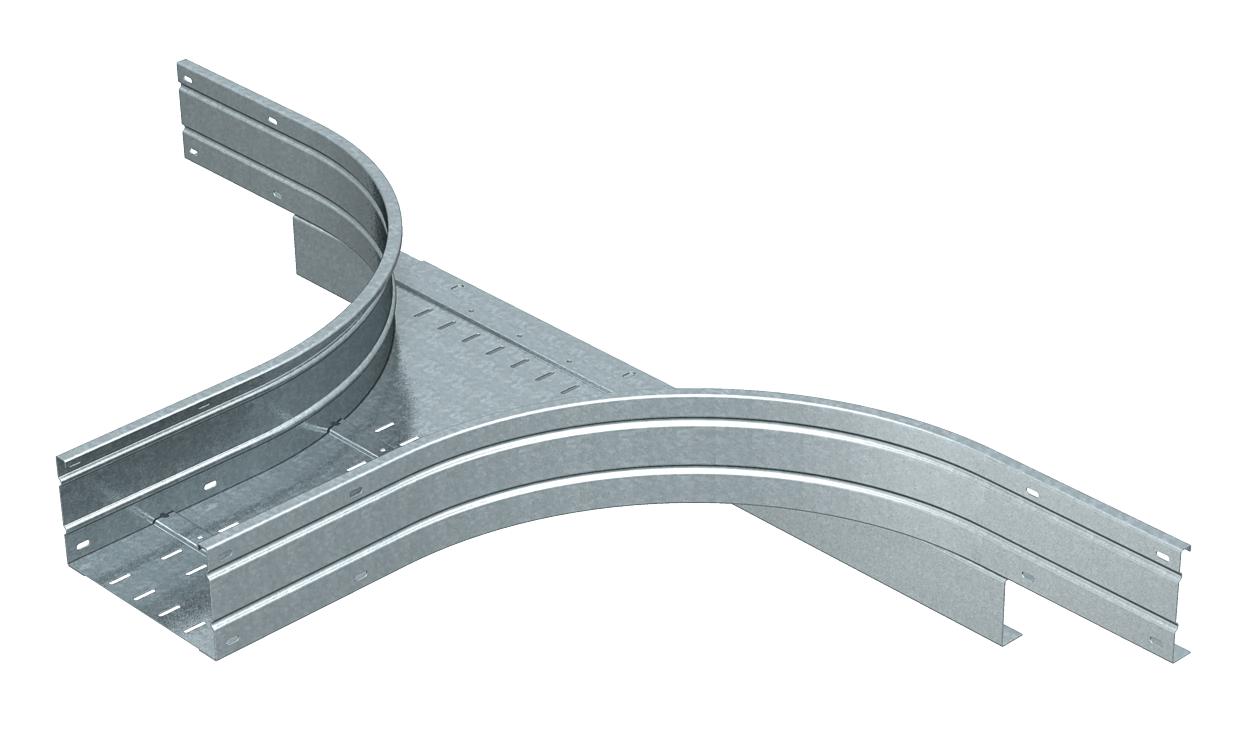

Product descriptionAdd-on tee for horizontal use. For all wide span cable trays of 160 mm side height.
-
- Technical data
-
Technical data

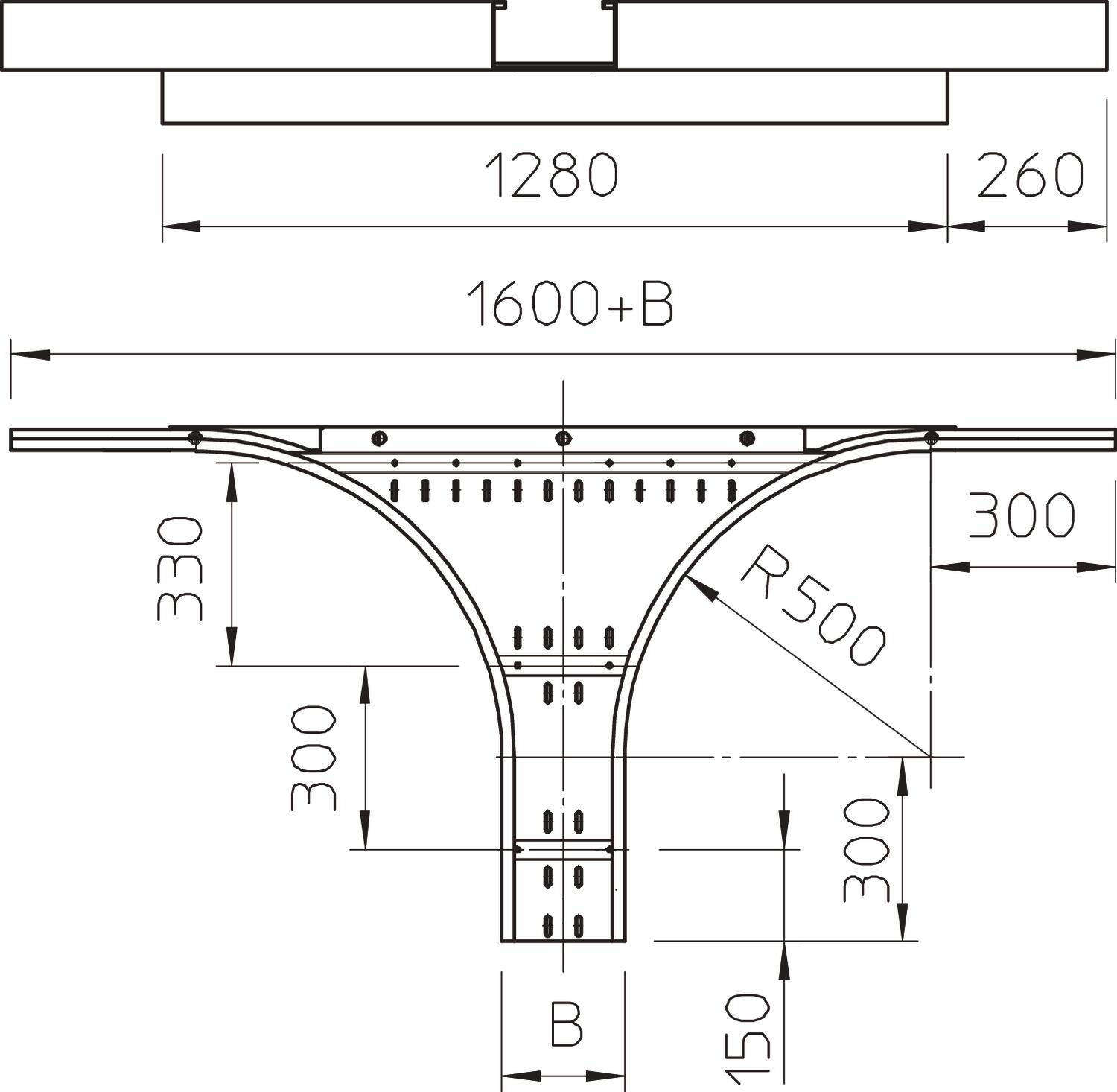

Colour zinc Connector version Without connectors Dimension 160x200 Dimension B 200 mm Dimension R 500 mm Height 160 mm Material Steel Material thickness, floor plate 1,5 mm NATO hole pattern no Plate thickness 2 mm Rail thickness 2 mm Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Screwed Wide-span version yes Width 200 mm - All types
- Downloads
-
Data sheet WRAA 162 FT / 6098827 , 0.27MB , pdfEU declaration of conformity WRAA 162 FT / 6098827 , 0.11MB , pdfUK Declaration of Conformity WRAA 162 FT / 6098827 , 0.09MB , pdfREACH Declaration of conformity WRAA 162 FT / 6098827 , 0.12MB , pdfRoHS Declaration of conformity WRAA 162 FT / 6098827 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
