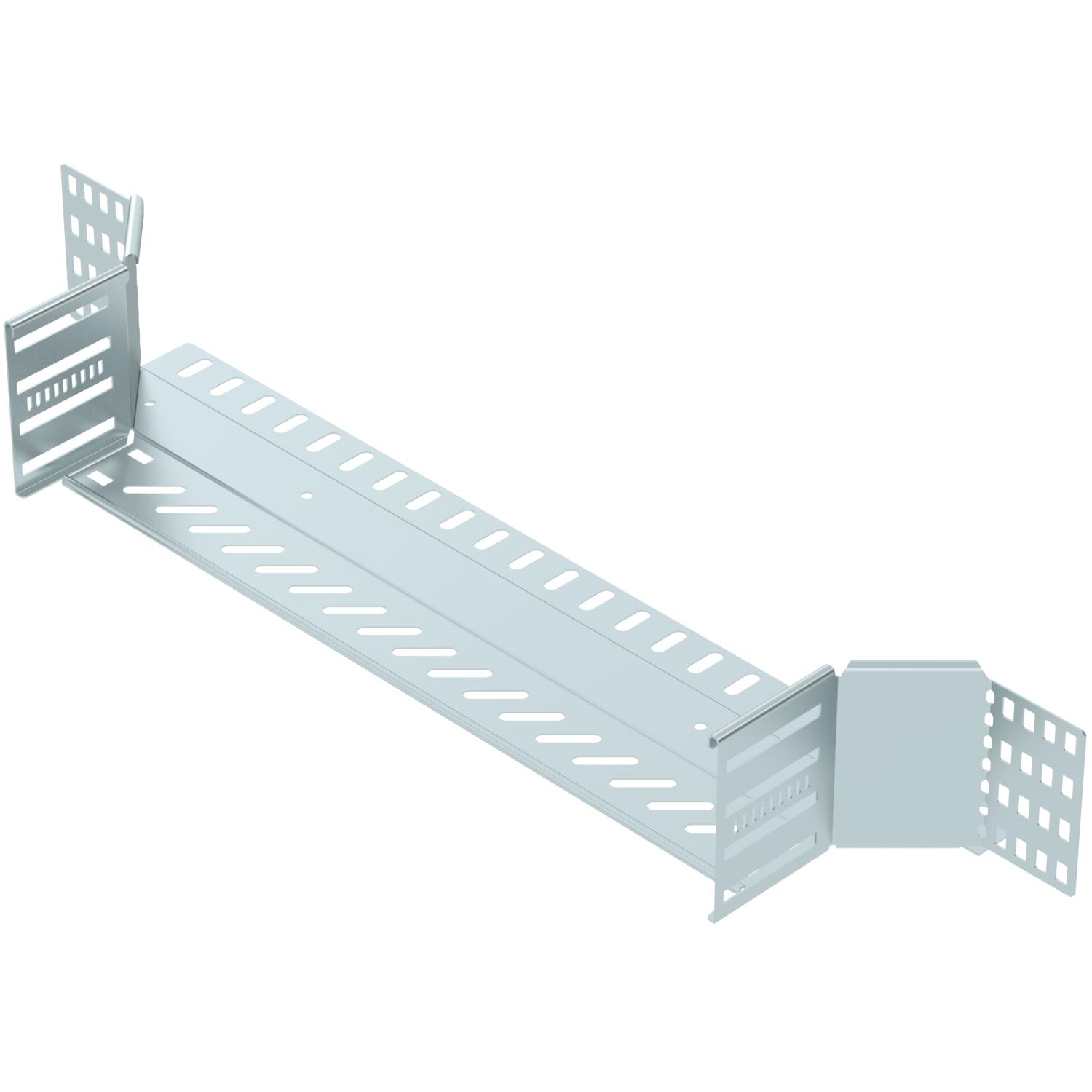

Add-on tee 110 FS
Item no. 6042161 | EAN 4012197337704
- Product description
-
Product descriptionAdd-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

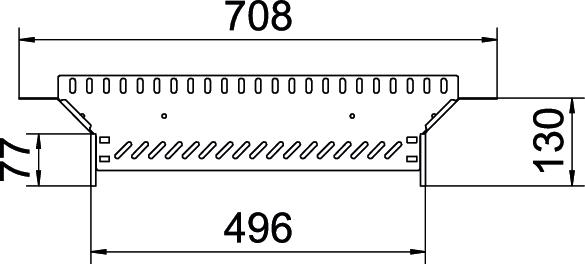

CO2 Footprint (GWP) Cradle-to-Gate 3,5174 kg CO2e / 1 Piece Colour zinc Connector version Integrated connector Departing width 500 mm Dimension 110x500 Dimension B 500 mm Height 110 mm Maintain electrical functions no Material Steel Material thickness, floor plate 1 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rail thickness 1,25 mm Recommended quantity of bolts 24 St. Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system screwed/clamped Wide-span version no Width 500 mm - All types
-
System accessories
Products Types Item no.
Cover for add-on tee FS
RAAD 500 FS 6042411 Mounting accessories
Products Types Item no.
Double clamp, fitting mounting A2
DOP A2 6035998 - Downloads
-
Data sheet RAA 150 FS / 6042161 , 0.18MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RAA 150 FS / 6042161 , 0.10MB , pdfUK Declaration of Conformity RAA 150 FS / 6042161 , 0.09MB , pdfREACH Declaration of conformity RAA 150 FS / 6042161 , 0.12MB , pdfRoHS Declaration of conformity RAA 150 FS / 6042161 , 0.13MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
