Add-on tee 110 A2

Item no. 6042345 | EAN 4012197337971

Item no. / Types

Width

Colour	stainless steel

Product description

Product description

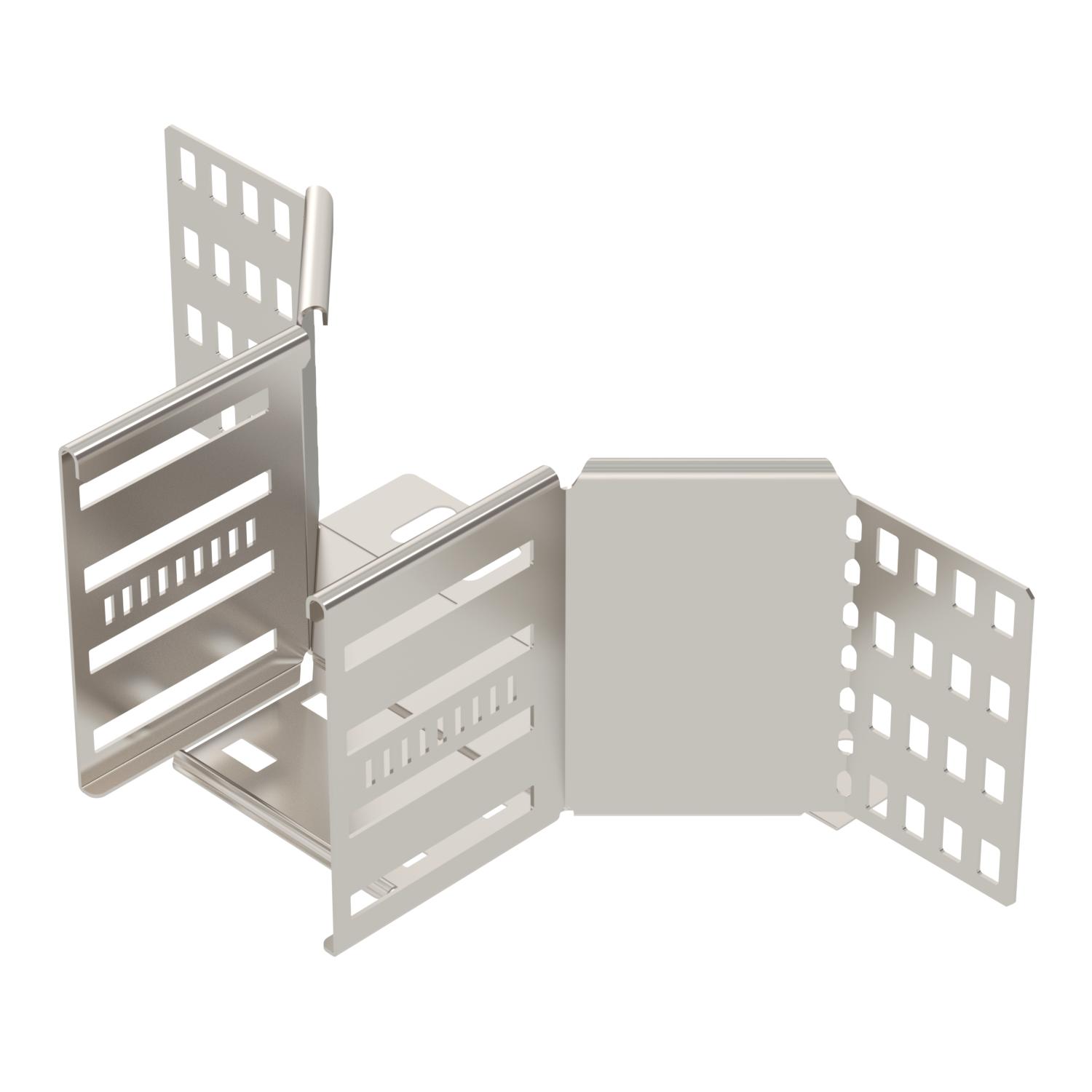

Add-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	4,4803 kg CO2e / 1 Piece
Colour	stainless steel
Connector version	Integrated connector
Departing width	100 mm

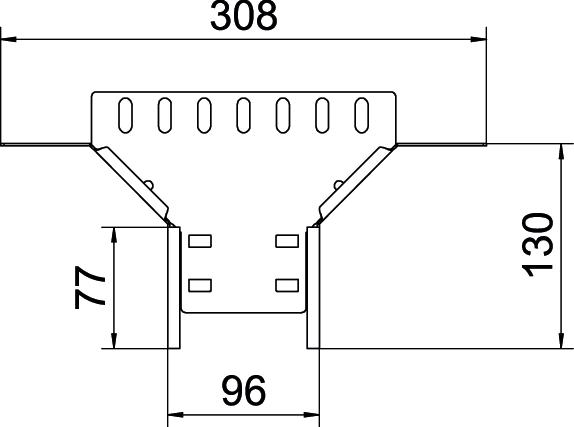

Dimension	110x100
Dimension B	100 mm
Height	110 mm
Maintain electrical functions	no
Material	Stainless steel
Material thickness, floor plate	0,8 mm
NATO hole pattern	no

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	0,8 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	18 St.
Rustproof steel, pickled	no
Surface	Bright, treated
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	100 mm

All types

All types

Types	Width	Colour	Item no.
RAA 110 A2	100 mm	stainless steel	6042345
RAA 120 A2	200 mm	stainless steel	6042347
RAA 130 A2	300 mm	stainless steel	6042349
RAA 140 A2	400 mm	stainless steel	6042351
RAA 150 A2	500 mm	stainless steel	6042353
RAA 160 A2	600 mm	stainless steel	6042355
