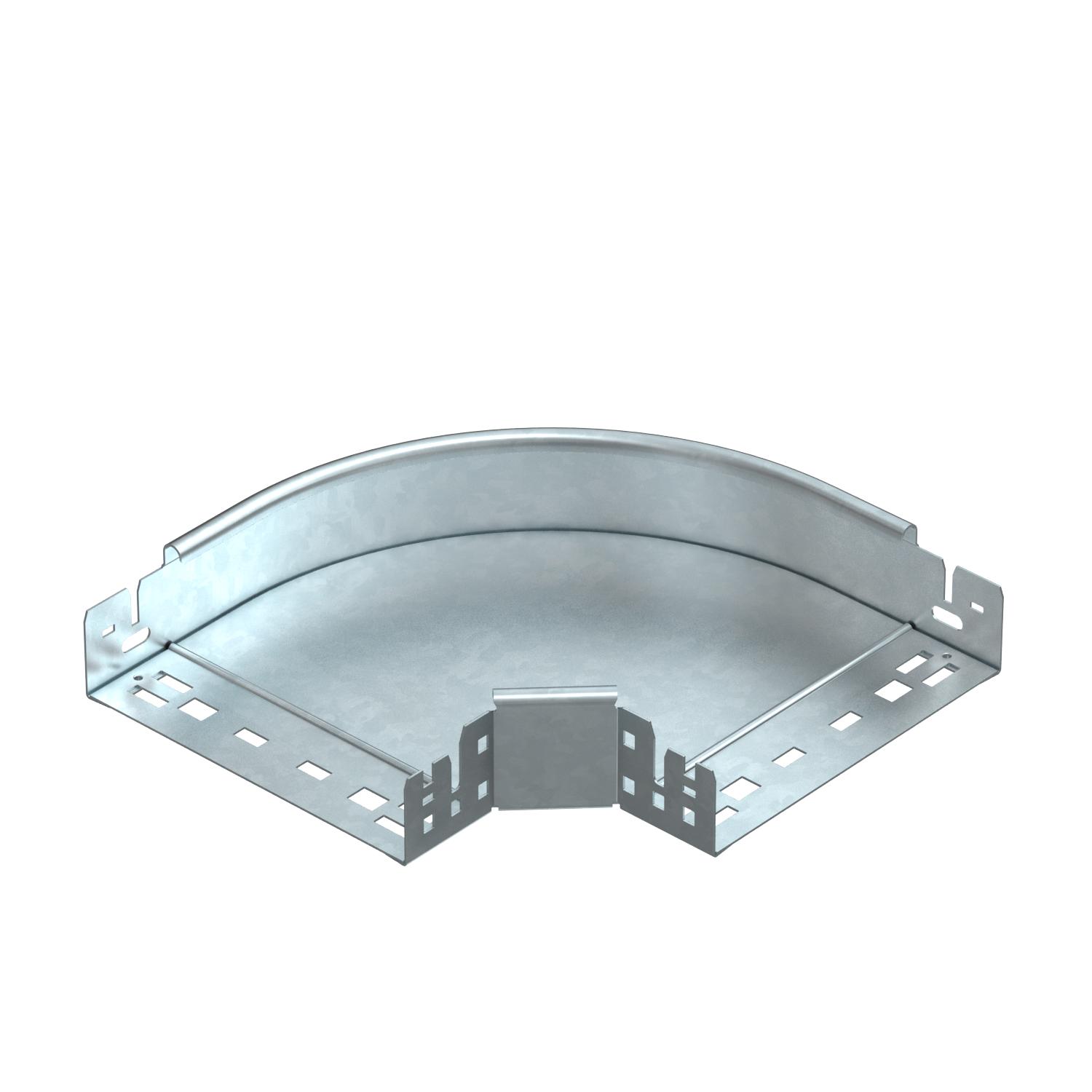

90° Magic bend 60 FT
Item no. 6041154 | EAN 4012195881902
- Product description
-
Product description90° bend with quick connector system. For all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 4,4903 kg CO2e / 1 Piece Colour zinc Connector version Integrated connector Dimension 60x200 Dimension B 200 mm Height 60 mm Height 2 in Maintain electrical functions yes Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Surface Hot-dip galvanised Type Bend, rigid Type of connector, cable support system Click fastening Wide-span version no Width 8 in Width 200 mm - All types
- Downloads
-
Data sheet RBM 90 620 FT / 6041154 , 0.19MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RBM 90 620 FT / 6041154 , 0.10MB , pdfREACH Declaration of conformity RBM 90 620 FT / 6041154 , 0.12MB , pdfRoHS Declaration of conformity RBM 90 620 FT / 6041154 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
