90° Magic bend 60 FS

Item no. 6041136 | EAN 4012195881841

Steel
Strip galvanized
zinc
Product description
Product description

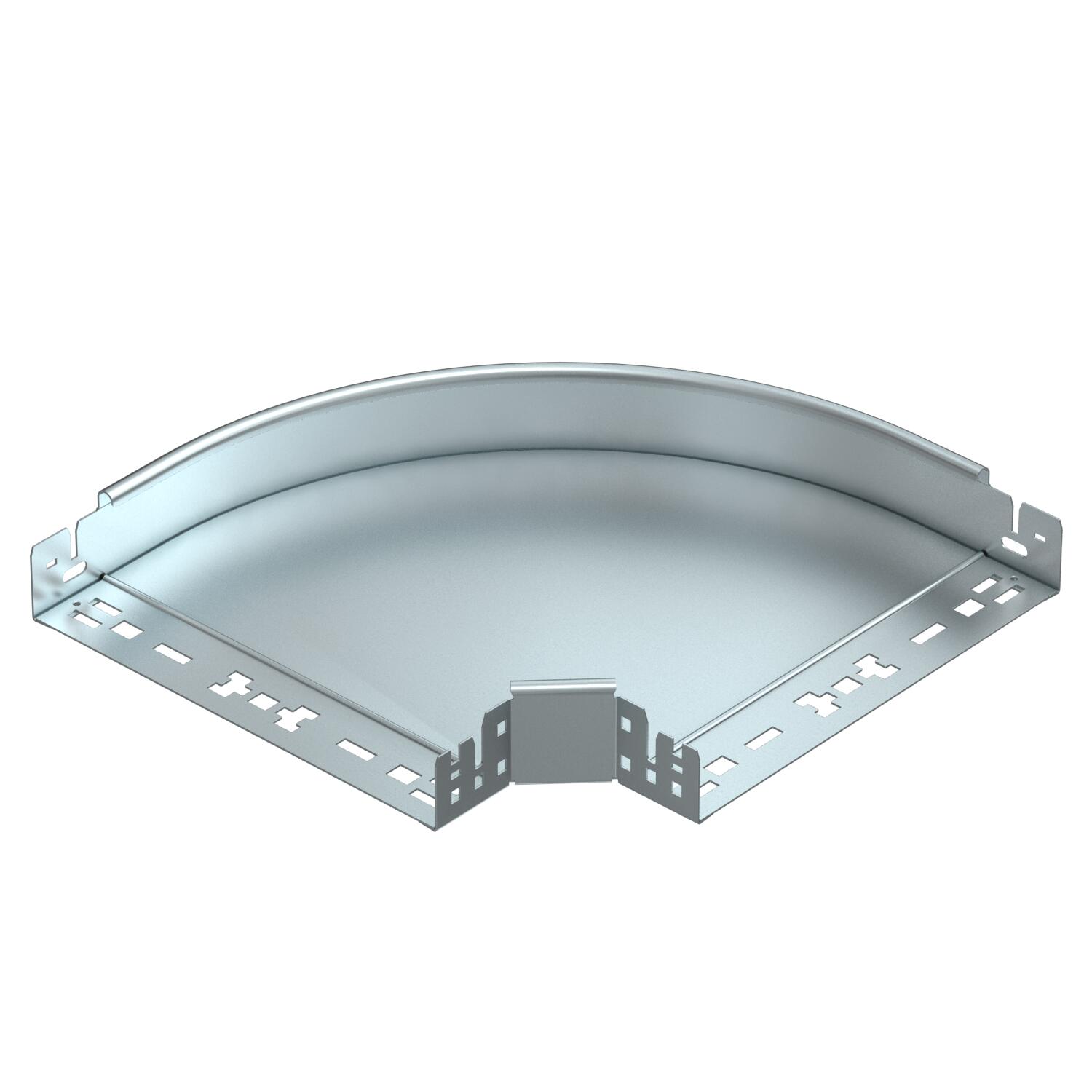

90° bend with quick connector system. For all cable tray types of 60 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

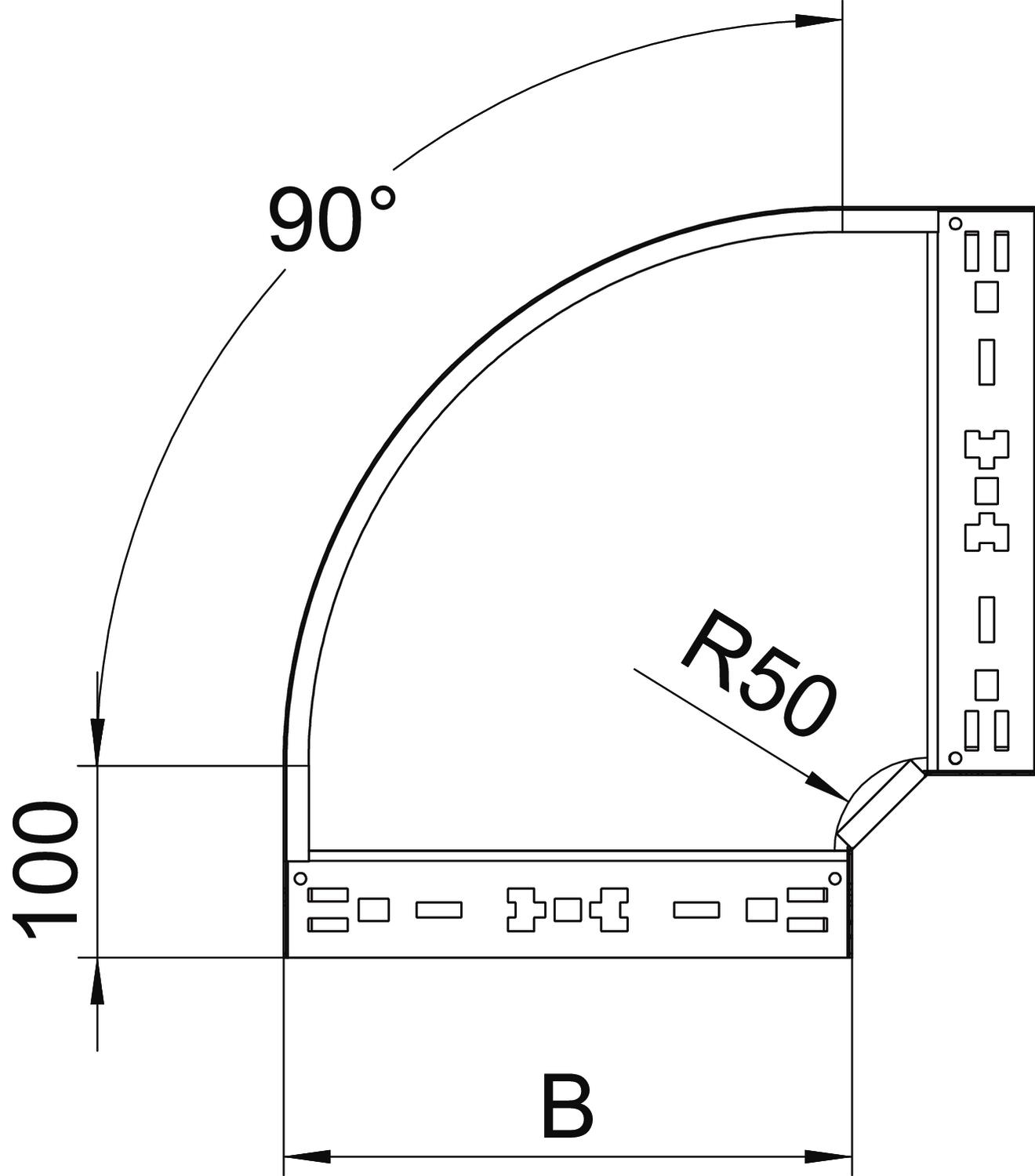

Bend (angle) 90°
Change of direction Horizontal
CO2 Footprint (GWP) Cradle-to-Gate 6,5163 kg CO2e / 1 Piece
Colour zinc
Connector version Integrated connector
Dimension 60x300
Dimension B 300 mm
Fire protection Use of fire protection ceilings
Height 60 mm
Height 2 in
Maintain electrical functions yes
Material Steel
Mounting perforation in base no
NATO hole pattern no
Plate thickness 1,25 mm
Rustproof steel, pickled no
Side perforation no
Surface Strip galvanized
Type of connector, cable support system Click fastening
Wide-span version no
Width 12 in
Width 300 mm
All types

All types

Types Width Material Surface Colour Item no.
RBM 90 630 FS 300 mm Steel Strip galvanized zinc 6041136
RBM 90 650 FS 500 mm Steel Strip galvanized zinc 6041140
RBM 90 660 FS 600 mm Steel Strip galvanized zinc 6041142
