90° bend 110 FT
Item no. 6217778 | EAN 4012196685257
- Product description
-

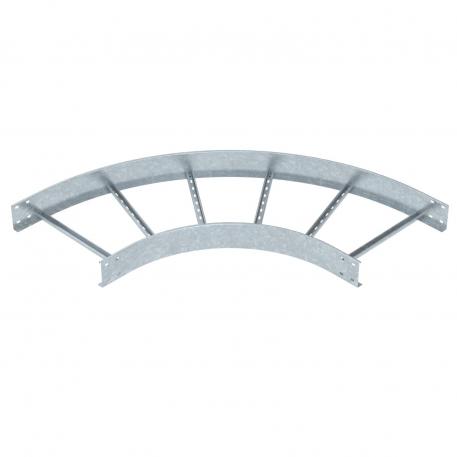

Product description90° bend, horizontal, for all wide span cable ladders of 110 mm side height.
-
- Technical data
-
Technical data

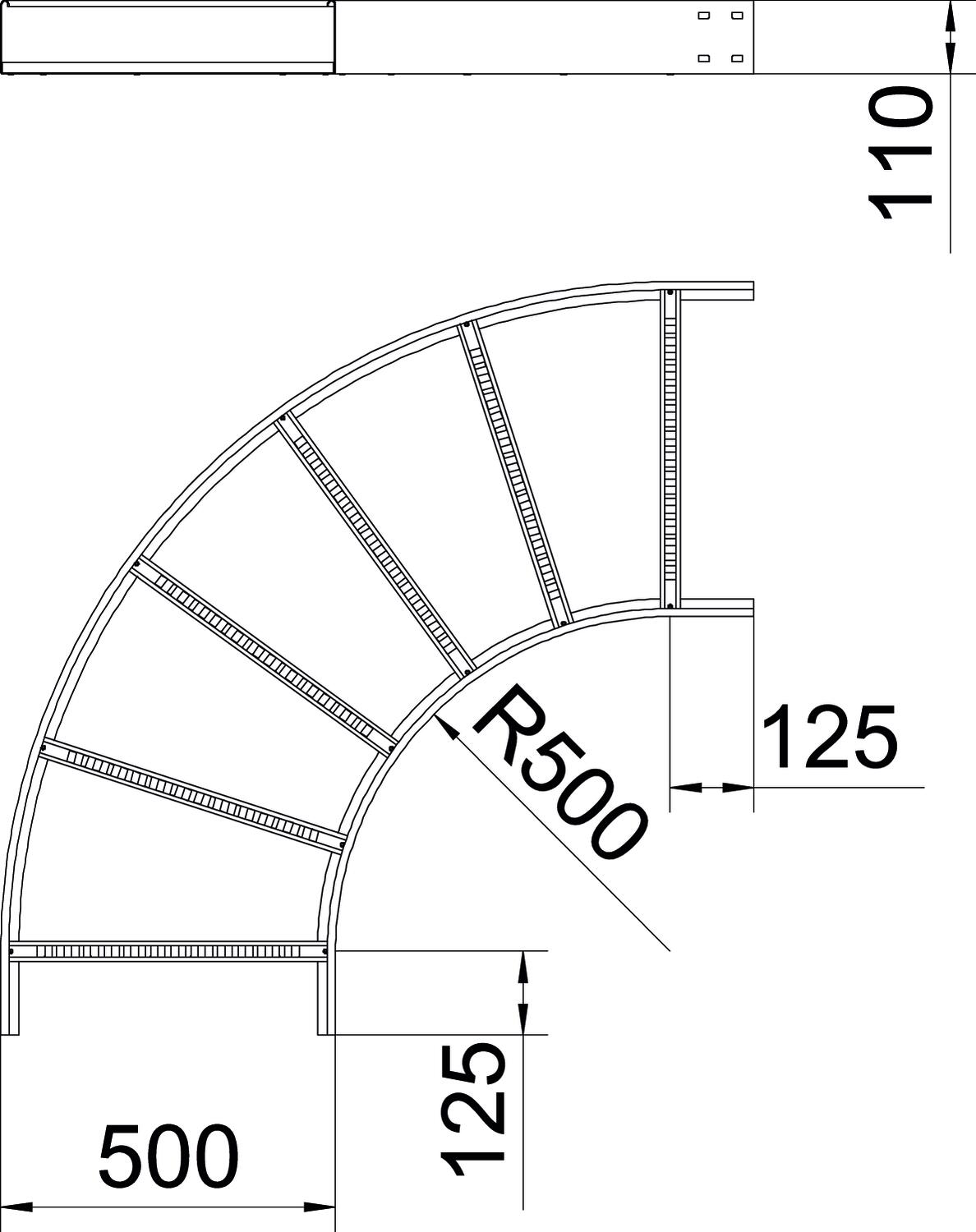

Bend (angle) 90° Change of direction Horizontal Colour zinc Dimension 110x500 Dimension B 500 mm Dimension R 500 mm Height 110 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile unperforated Wide-span version no Width 500 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FT
LVG 110 FT 6216548 - Downloads
-
Data sheet LB 90 1150 R5 FT / 6217778 , 0.21MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LB 90 1150 R5 FT / 6217778 , 0.10MB , pdfUK Declaration of Conformity LB 90 1150 R5 FT / 6217778 , 0.09MB , pdfREACH Declaration of conformity LB 90 1150 R5 FT / 6217778 , 0.12MB , pdfRoHS Declaration of conformity LB 90 1150 R5 FT / 6217778 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
