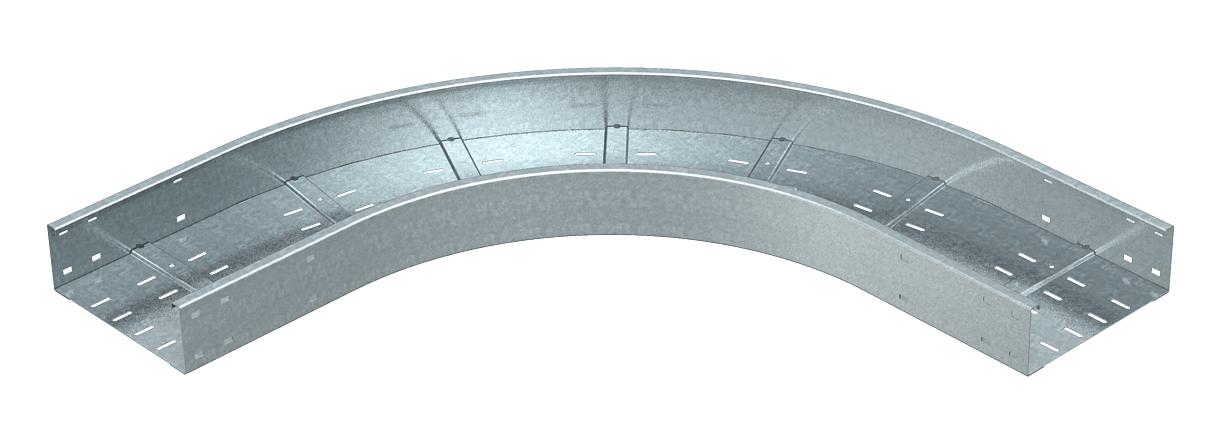

90° bend 110 FS
Item no. 6098304 | EAN 4012196033676
- Product description
-
Product description90° bend, horizontal, for all wide span cable trays of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Connector version Without connectors Dimension 110x200 Dimension B 200 mm Height 110 mm Material Steel Mounting perforation in base yes Plate thickness 2 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version yes Width 200 mm - All types
- Downloads
-
Data sheet WRB 90 120 FS / 6098304 , 0.25MB , pdfEU declaration of conformity WRB 90 120 FS / 6098304 , 0.11MB , pdfUK Declaration of Conformity WRB 90 120 FS / 6098304 , 0.09MB , pdfREACH Declaration of conformity WRB 90 120 FS / 6098304 , 0.12MB , pdfRoHS Declaration of conformity WRB 90 120 FS / 6098304 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
