90° adjustable bend, vertical 110 FS
Item no. 7006624 | EAN 4012196218592
- Product description
-

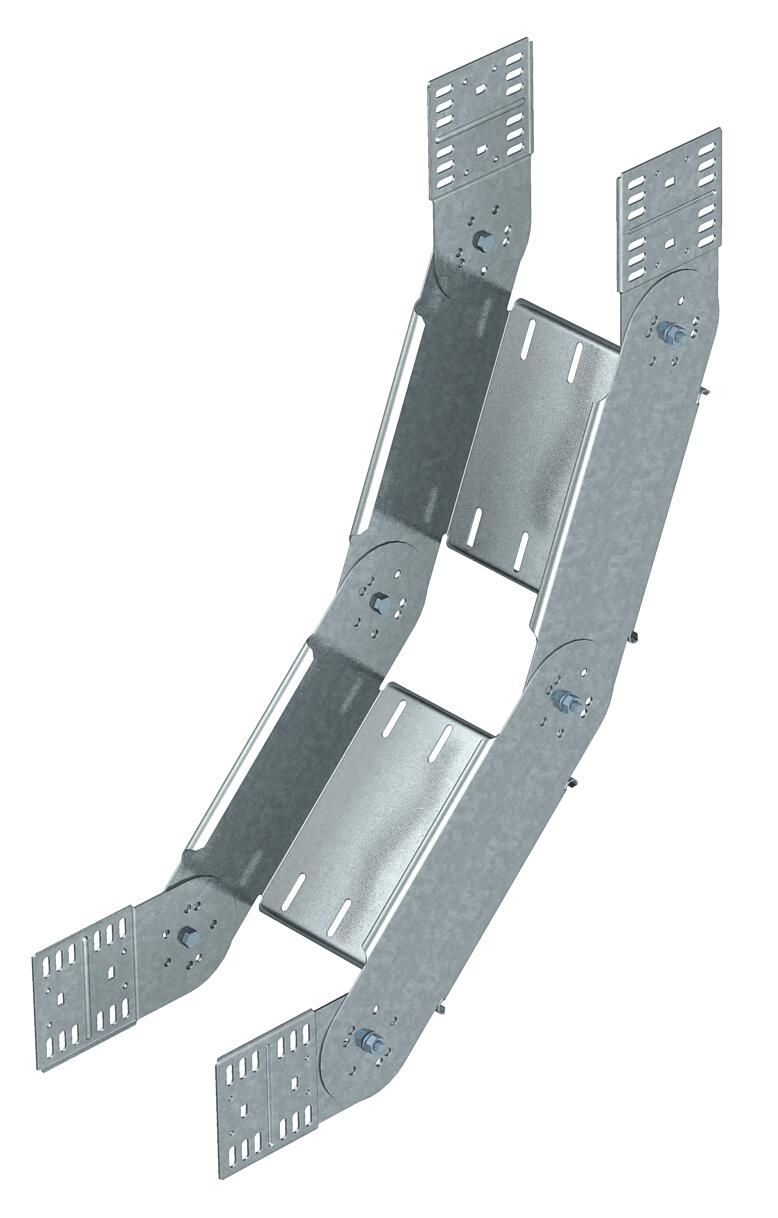

Product description90° adjustable vertical bend, for all cable tray types with a side height of 110 mm.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Vertical, rising/falling Colour zinc Connector version Supplied connectors Dimension 110x100 Dimension R 400 mm Height 4 in Height 110 mm Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type Adjustable bend_complete Type of connector, cable support system Screwed Wide-span version no Width 4 in Width 100 mm - All types
-
All types
- Downloads
-
Data sheet RGBV 110 FS / 7006624 , 0.14MB , pdfEU declaration of conformity RGBV 110 FS / 7006624 , 0.10MB , pdfREACH Declaration of conformity RGBV 110 FS / 7006624 , 0.12MB , pdfRoHS Declaration of conformity RGBV 110 FS / 7006624 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
