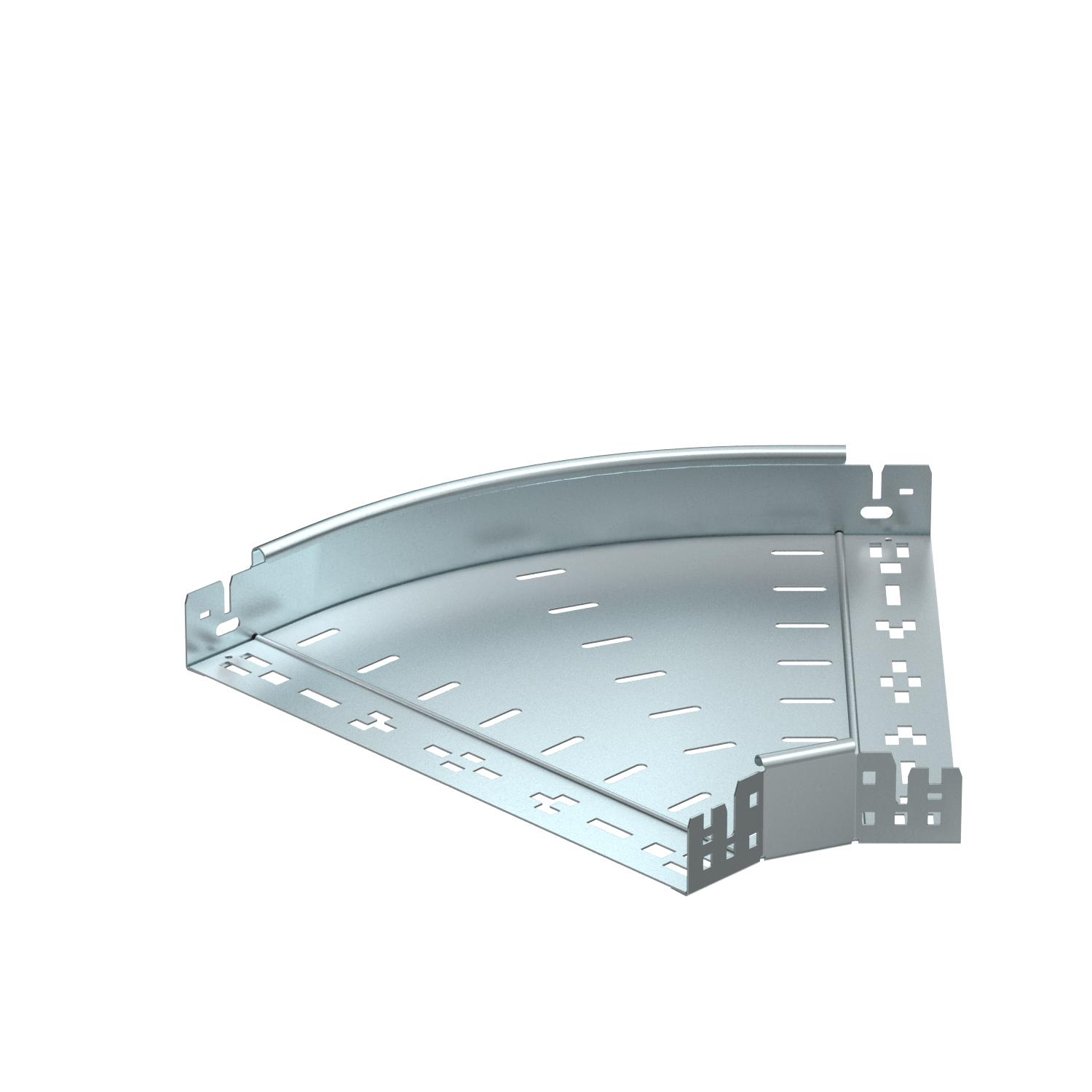

45° Magic bend 60 FS
Item no. 6041048 | EAN 4012195881575
- Product description
-
Product description45° bend with quick connector system. For all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 45° Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 5,6115 kg CO2e / 1 Piece Colour zinc Connector version Integrated connector Dimension 60x400 Dimension B 400 mm Fire protection Use of fire protection ceilings Height 2 in Height 60 mm Maintain electrical functions yes Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,25 mm Side perforation no Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 16 in Width 400 mm - All types
- Downloads
-
Data sheet RBM 45 640 FS / 6041048 , 0.19MB , pdfEU declaration of conformity RBM 45 640 FS / 6041048 , 0.10MB , pdfREACH Declaration of conformity RBM 45 640 FS / 6041048 , 0.12MB , pdfRoHS Declaration of conformity RBM 45 640 FS / 6041048 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
