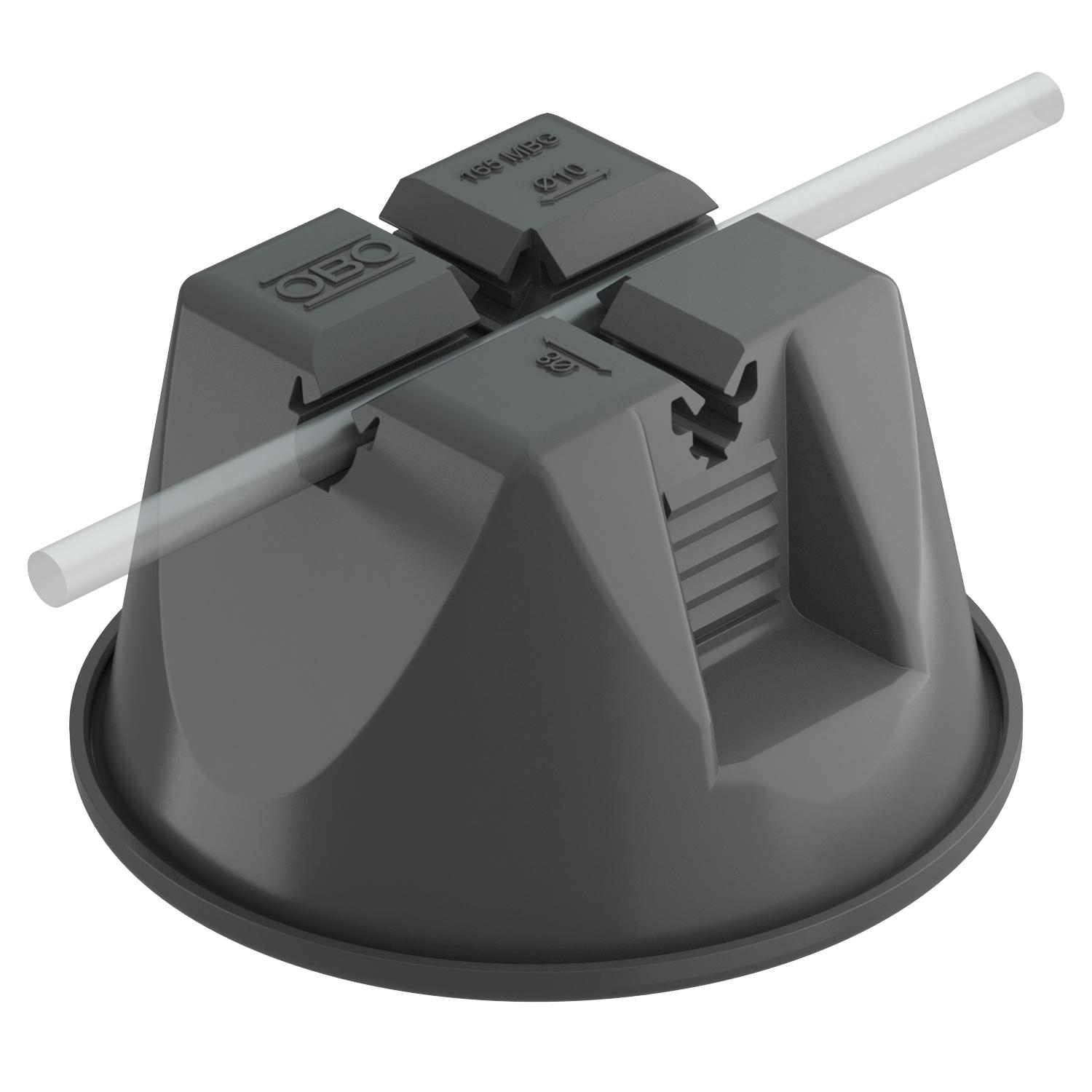

165 MBG... roof cable holder for flat roofs, black, with concrete 133.5 | | Rd 8-10

165 MBG... roof cable holder for flat roofs, black, with concrete

Item no. 5218700 | EAN 4012196648290

Item no. / Types

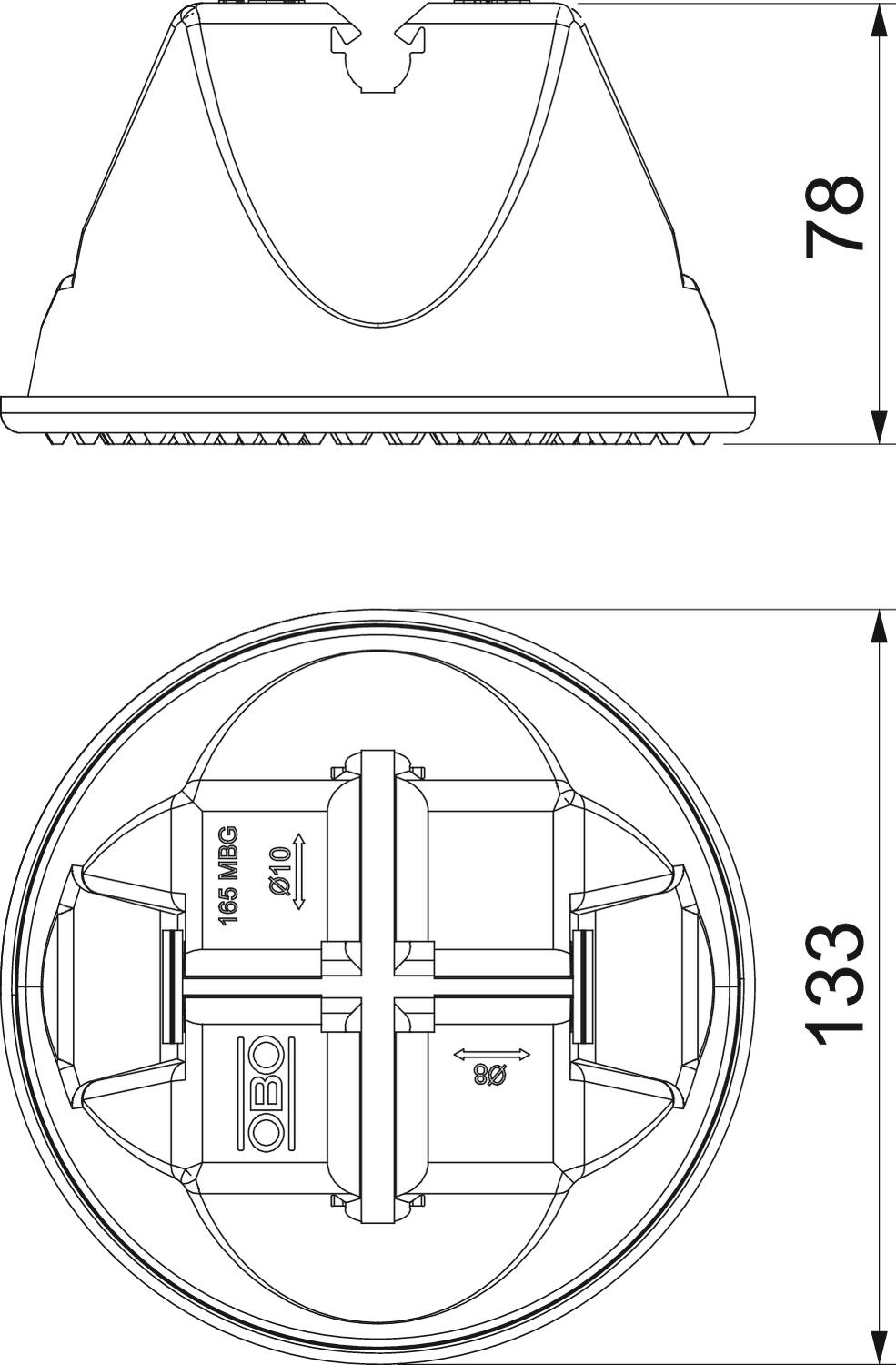

Length	133.5 mm

Fit

Product description

Product description

• Closed form with base
• With double conductor holder
• Filling weight 1 kg (frost-resistant concrete)
• Sleeve made of polyethylene, black, UV-resistant and weather-resistant
• Base made of polyamide PA 6, black, UV-resistant and weather-resistant
• Base can be used on almost all roofing felt systems (bitumen, PVC)
• Types 165 MBG...FO: Packed in foil bag

Technical data

Technical data

Application	Flat roof
Clamping range D, max.	10 mm
Clamping range D, min.	8 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,4786 kg CO2e / 1 Piece
Colour	Black
Conductor diameter, max.	10
Conductor diameter, min.	8

Conductor fastening type	With clip
Dimension	8-10mm
Fit	Rd 8-10 mm
Length	133,5 mm
Material	Polyamide/Polyethylene
Mounting type	Miscellaneous

All types

All types

Types	Length	Fit	Item no.
165 MBG-8-10	133.5 mm	Rd 8-10 mm	5218700
165 MBG-8-10 FO	133.5 mm	Rd 8-10 mm	5218704
165 MBG-6SO	133.5 mm	Rd 6 mm	5218780

Accessories

System accessories

Products	Types	Item no.

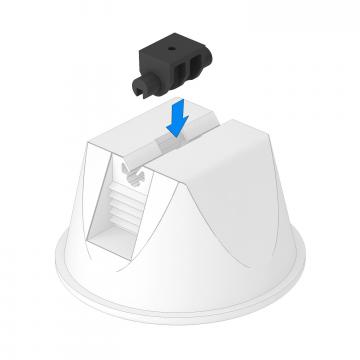

Universal flat conductor adapter for roof conductor holder, type 165/MBG	165 MBG UH	5218882

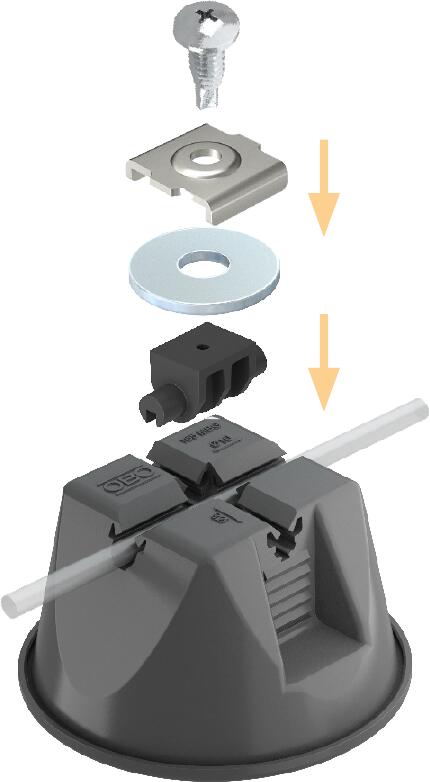

Flat conductor adapter for roof conductor holder, type 165/MBG	165 MBG HFL	5218885

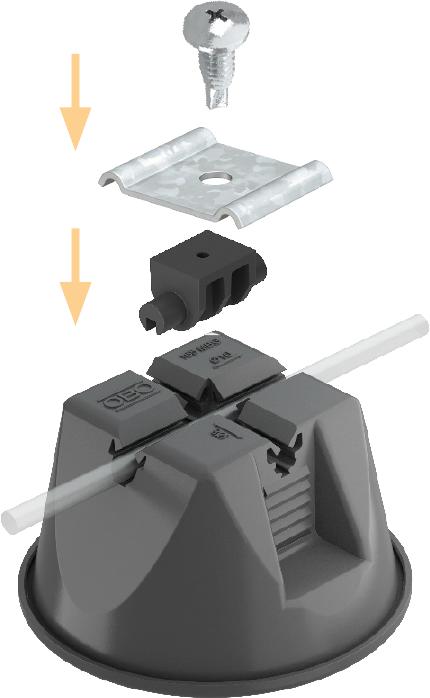

Mesh cable tray adapter for roof conductor holder	165 MBG HGRM	5218886
