110 FT cross-over
Item no. 6312934 | EAN 4012196303311
- Product description
-

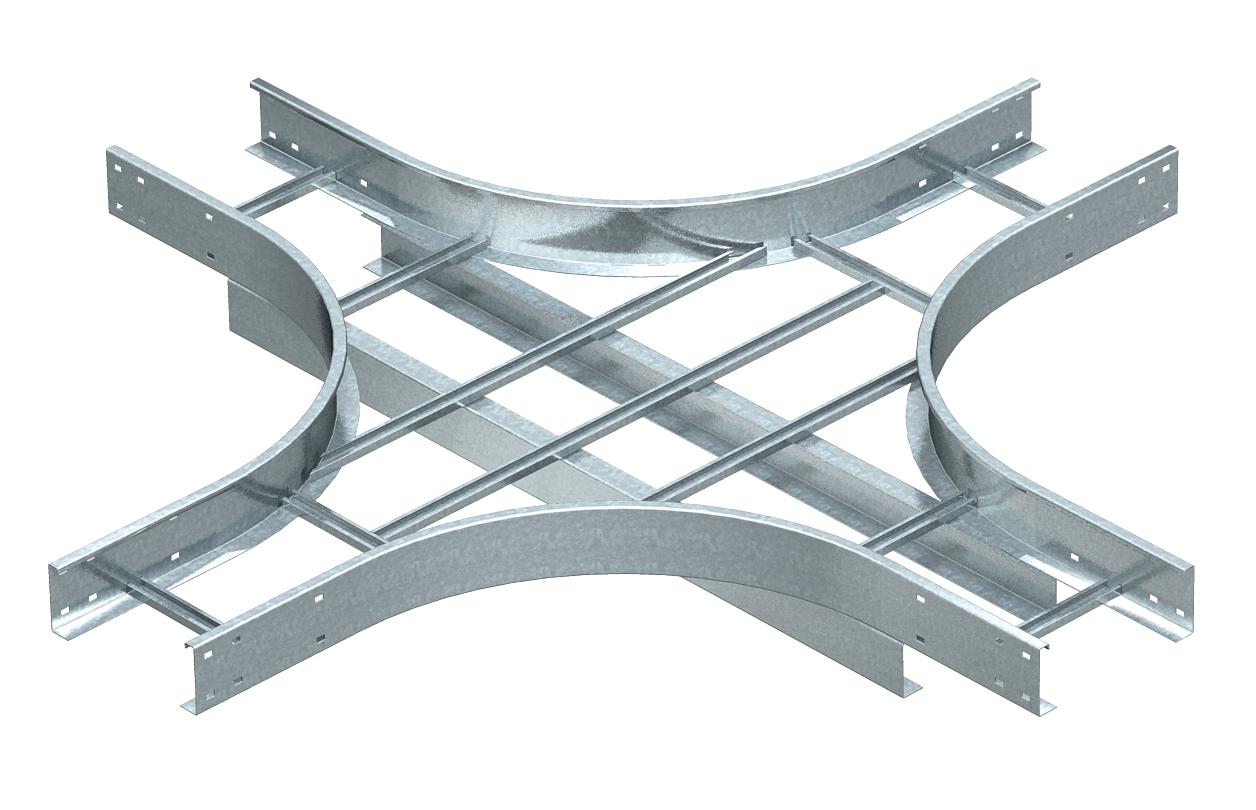

Product descriptionHorizontal cross-over for all wide span cable ladders of 110 mm side height.
-
- Technical data
-
Technical data

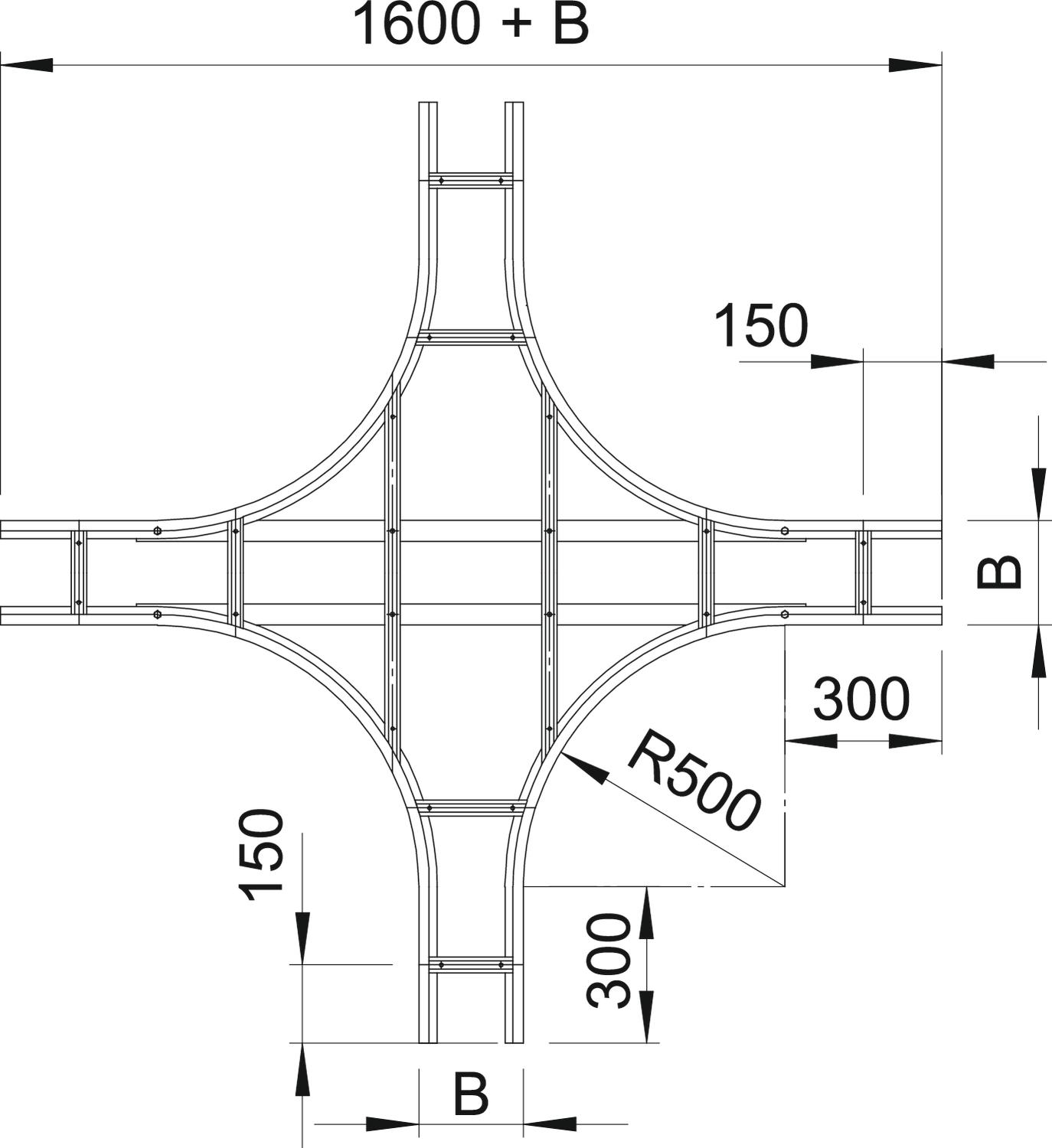

Colour zinc Dimension 110x200 Dimension B 200 mm Dimension R 500 mm Height 110 mm Maintain electrical functions no Material Steel Rail thickness 2 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile unperforated Wide-span version yes Width 200 mm - All types
- Downloads
-
Data sheet WLK 1120 FT / 6312934 , 0.22MB , pdfBrochure Wide span systems , 2.10MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity WLK 1120 FT / 6312934 , 0.10MB , pdfUK Declaration of Conformity WLK 1120 FT / 6312934 , 0.09MB , pdfREACH Declaration of conformity WLK 1120 FT / 6312934 , 0.12MB , pdfRoHS Declaration of conformity WLK 1120 FT / 6312934 , 0.13MB , pdfMounting instructions Wide span cable ladders , 11.33MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
