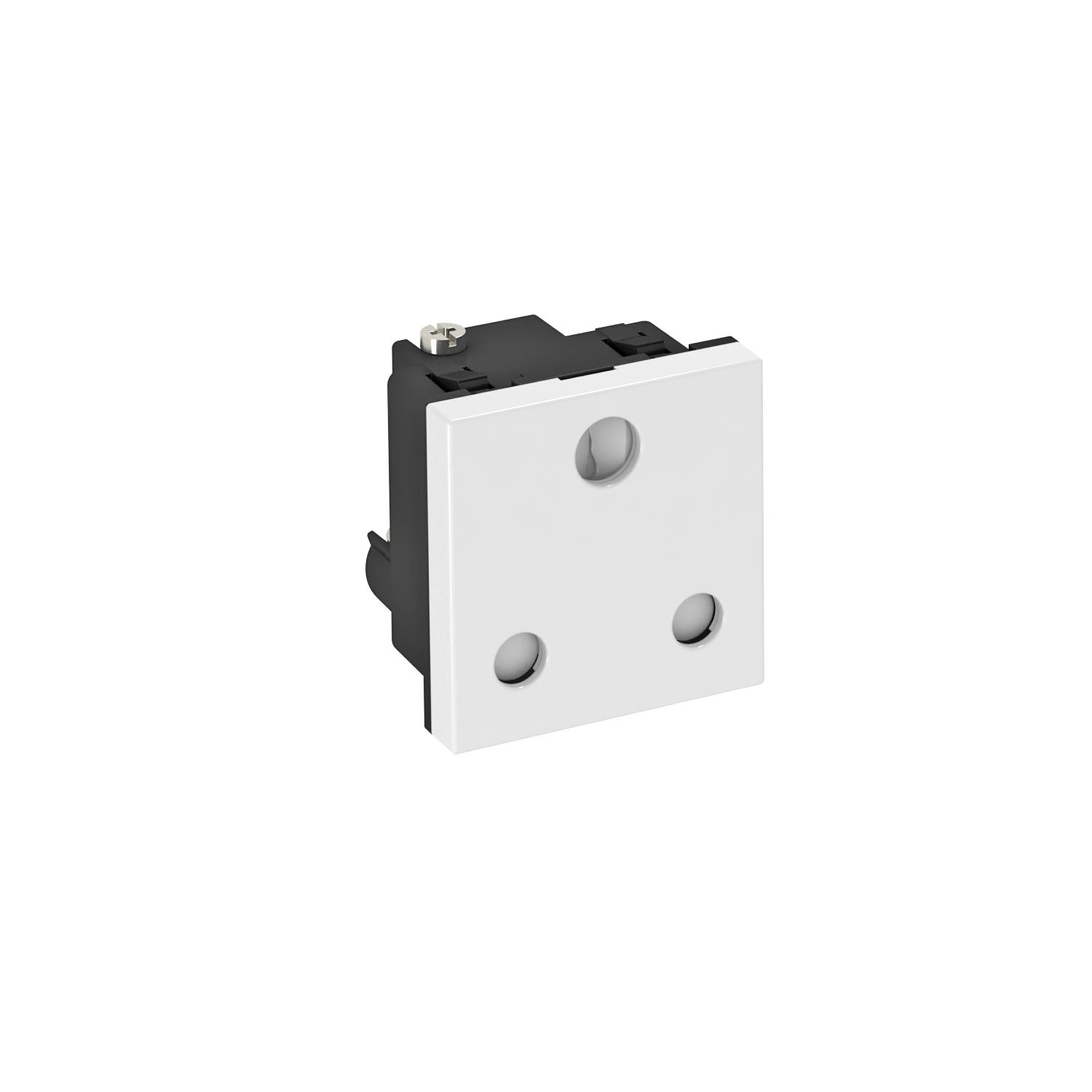

0° socket, South Africa/India, 16 A, single

Item no. / Types	6120730 / STD-SA0 RW1

Number of units	1

Version for	Single 0°

Colour	Pure white; RAL 9010

Product description

Product description

Socket, single 0°, South Africa/India, conforming to BS 546, with increased touch protection, with screw terminals, 2-pin, 16 A, 250 V~.

Technical data

Closable	no
CO2 Footprint (GWP) Cradle-to-Gate	0,0194 kg CO₂e / 1 Piece
Colour	Pure white; RAL 9010
Cover	Central plate
Dimension	250V, 16A
Fastening type	Lock
For more difficult conditions (according to VDE)	no
increased touch protection	yes
Material	Polycarbonate
Mounting type	Device installation duct
Nominal current	16 A
Nominal voltage	250 V
Number of poles	2

Number of units	1
Operating temperature, max.	40 °C
Operating temperature, min.	-5 °C
Printed label/coding	Without printing
Protection rating	Other
Special power supply	Without special power supply
Surface version	Not applicable
Transparent	no
Version for	Single 0°
With functional lighting	no
With on/off switch	no
With orientation lighting	no
